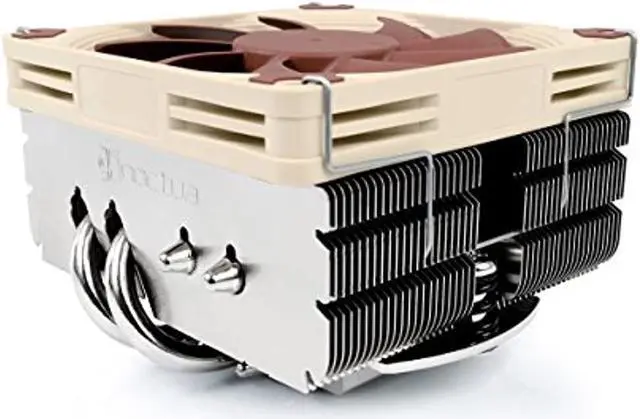

Noctua NH-L9x65, Premium Low-Profile CPU Cooler (65mm, Brown)

Brand: Noctua
MPN: NH-L9x65

Noctua NH-L9x65 Premium Low-Profile CPU Cooler (65mm Brown)
Product Description

The NH-L9x65 is a taller performance-enhanced version of Noctua’s award-winning NH-L9 low-profile coolers. With 65 instead of 37mm height and four instead of two heatpipes the NH-L9x65 is more powerful than its smaller siblings yet retains their 95x95mm footprint which ensures 100% RAM and PCIe compatibility on Intel based ITX mainboards and makes the cooler more convenient to work with as it doesn’t overhang near-socket connectors. Thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM the NH-L9x65 runs remarkably quiet. Topped off with the professional SecuFirm2 multi-socket mounting system for Intel and AMD and Noctua’s renowned NT-H1 thermal compound the NH-L9x65 fuses everything users have come to expect from Noctua’s larger coolers into a compact premium package for space restricted systems.

^{65mm low profile}

Due to its compact heatsink and the 14mm thin NF-A9x14 low profile fan the NH-L9x65 stands only 65mm tall (the same height as low-profile expansion cards) which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer limited clearance for CPU coolers.

^{100% RAM compatibility}

The NH-L9x65 has a 95x95mm footprint that complies exactly to the Intel LGA115x socket keep-out zone. This means that it won't cause issues with chipset coolers and doesn't overhang the RAM slots making it fully compatible with tall memory modules.

^{100% compatibility with PCIe cards on mini-ITX}

Many mini-ITX mainboards have the PCIe slot sitting close to the socket zone. While larger coolers with 120mm or 140mm fans that exceed this zone may block the PCIe slot the compact NH-L9x65 provides full compatibility with PCIe cards.

^{Easy access to near-socket connectors}

Many low-profile coolers use larger fans or heatsinks in order to achieve sufficient cooling performance but protruding over the socket zone they make it difficult or even impossible to reach near-socket connectors on tightly packed ITX mainboards. Thanks to its 95x95mm footprint the NH-L9x65 provides easy access to all connectors and components.

Read more Measurements

• Height (without fan): 51 mm
• Width (without fan): 95 mm
• Depth (without fan): 95 mm
• Height (with fan): 65 mm
• Width (with fan): 95 mm
• Depth (with fan): 95 mm
• Weight (without fan): 340 g
• Weight (with fan/s): 413 g

Materials

Copper (base and heat-pipes) aluminium (cooling fins) soldered joints & nickel plating

^{Cooler Specifications} Caution

The NH-L9x65 is a highly compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class it is not suitable for overclocking and should be used with care on CPUs with more than 95W TDP (Thermal Design Power).

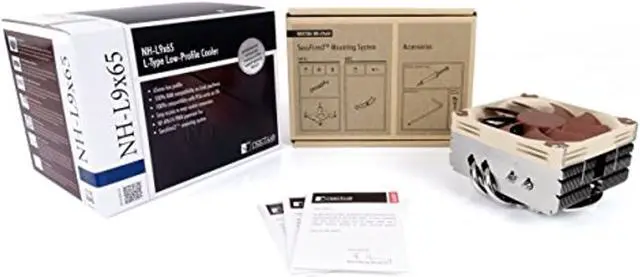

Scope of delivery

• NF-A9x14 PWM premium fan
• Low-Noise Adaptor (L.N.A.
