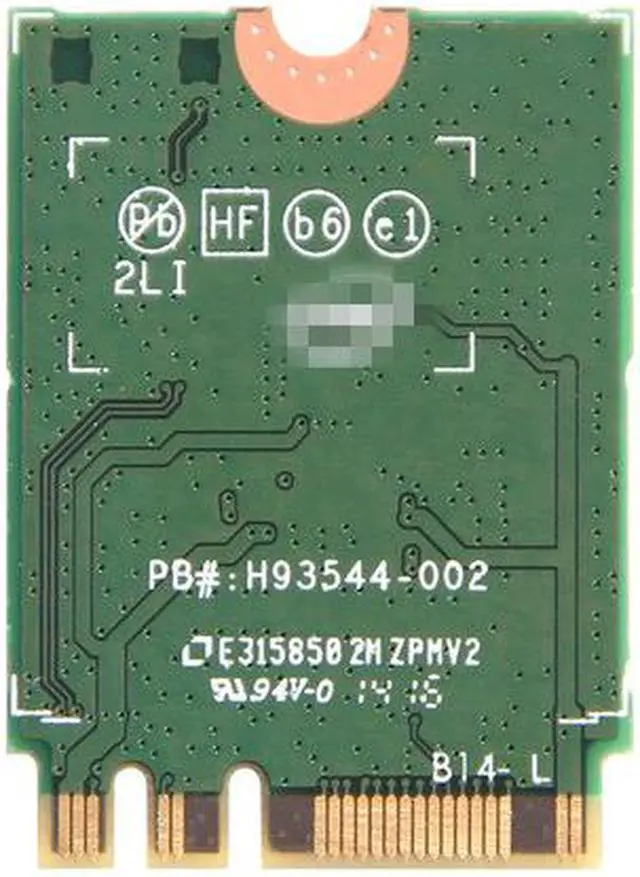

Wifi Card Wireless-AC 8265 802.11ac, Dual Band, 2x2 MU-MIMO Wi-Fi + Bluetooth* 4.2 867Mbps NGFF M.2 MU-MIMO Wireless Card Not for IBM/Lenovo/Thinkpad and HP Laptops

Laptop Wifi Card Wireless-AC 8265 802.11 ac, Dual Band, 2x2 MU-MIMO Wi-Fi + Bluetooth* 4.2 867Mbps Wireless Card Not for IBM/Lenovo/Thinkpad and HP Laptops The Dual Band Wireless-AC 8265 adapter supports Bluetooth* 4.2 and 2x2 11ac Wi-Fi delivering up to 867Mbps including wave 2 features such as downlink 1 MU-MIMO providing up to 3x increase in user speeds in dense deployments, supporting fast downloads and long battery life compared to legacy 11ac devices. 4th Generation 802.11 ac Wireless 802.11 ac, Dual Band, 80MHz, 2x2, MU-MIMO Delivers up to 3x faster Wi-Fi speeds (up to 867 Mbps) than 802.11 n, with up to 3x more bandwidth per stream for more users and devices.

Downlink MU-MIMO allows an Access Point to simultaneously transmit data to multiple clients and can improve overall downlink network capacity 3 by up to 3x2. Wireless-AC enables smoother streaming of higher resolution videos, fewer dropped connections and less congestion, and faster speed further away from the router. Bluetooth* 4.2 Dual mode Bluetooth* 4.2 enables BR/EDR-low energy devices to act as a hub and peripheral at the same time. Connects to the newest low energy Bluetooth* products as well as your familiar devices, such as headsets, keyboard, mice and more. Dual Band Wireless-AC 8265 Technical Specifications General
Dimensions (H x W x D): M. 2 2230: 22 mm x 30 mm x 2.4 mm [ 1.5 mm Max (Top Side) / 0.1 mm Max (Bottom Side) ]
Weight: M. 2 2230: 2.
6g Antenna Diversity: Supported
Radio ON/OFF Control: Supported
Connector interface: M.
2 Operating Temperature (Adapter Shield): 0°C to +80°C
Humidity Non-Operating: 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)
Operating Systems: Microsoft Windows 7*, Microsoft Windows 8.1 *, Microsoft Windows 10*, Linux* (limited feature support), Android
Wi-Fi Alliance: Wi-Fi CERTIFIED* a/b/g/n/ac, WMM*, WMM-PS*, WPA*, WPA2*, WPS2*, Protected Management Frames, Wi-Fi Direct* for peer to peer device connections, Wi-Fi Miracast* as Source.
IEEE WLAN Standard: IEEE 802.11 a/b/g/n/ac, 802.11 d, 802.11 e, 802.11 h, 802.11 i, 802.11 w; 802.11 r, 802.11 k, 802.11 v pending OS support; Fine Timing Measurement based on 802.11REV mc
Roaming: Supports seamless roaming between access points
Bluetooth*: Dual Mode Bluetooth* 4.2, BLE
Security Authentication: WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA, EAP-AKA’
Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHA
Pv2 Encryption: 64-bit and 128-bit WEP, 128-bit AES-CCMP Wi-Fi Direct*
Encryption and Authentication: WPA2-PSK, AES-CCMP
Note: please make sure your router also support MU-MIMO function or MU-MIMO will not workable.
