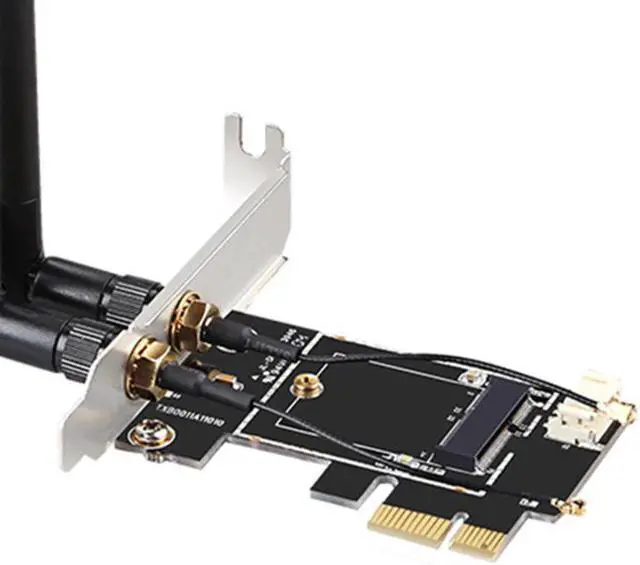

    Wireless Card to pciE-1X to NGFF-Ekey PCIE Laptop Pc WIFI WLAN Card Adapter Dual Antenna Adapter Board

    • Good Quality
    +
    +
    Overview
    Specs
    Reviews
    Wireless Card to pciE-1X to NGFF-Ekey PCIE Laptop Pc WIFI WLAN Card Adapter Dual Antenna Adapter Board

    100% brand ,high quality

    Features:

    The PCI-E M.2/NGFF Card passive adapter is designed for wireless application on desktop PCs that convert half-size MiniCard(NGFF ) to USB 9pin Header or standard PCI-Express 1x slot.

    You can insert your USB type M.2 card to this adapter then plug to USB 9pin header port through USB cable. Or insert your PCI-E type M.2/NGFF card into this adapter then insert to PCI-E 1x connector.

    WiFi & Bluetooth Combo card such as ® Dual Band Wireless-AC 7260/7265/8260ac can be used for supporting both WiFi by PCIe and Bluetooth by USB at the same time.

    Low Profile Height PCI Express1x Add-in Card Standard Height by bundled bracket

    Support PCIe MiniCard: IEEE WLAN802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac

    Transparent to operating systems and does not require any software drivers.

    Note the WIFI card need the software drivers)

    Specifications:

    Item Type: Wireless Card

    Material: ABS

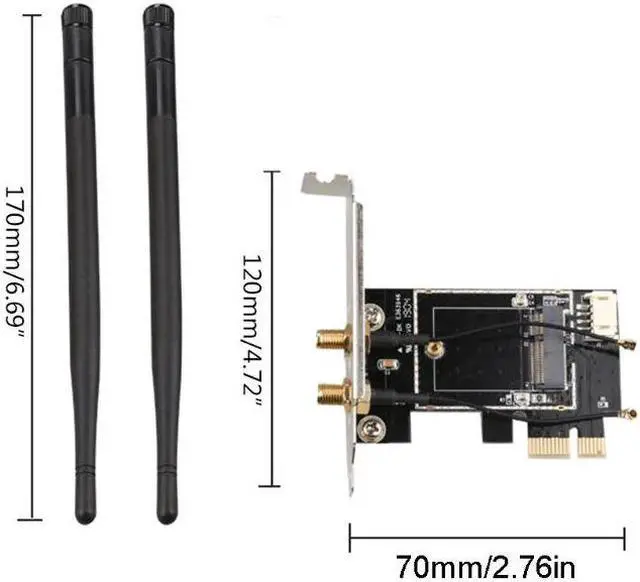

    Size: approx. Antenna length 65mm / 2.56in, circuit board: 75x70 mm / 2.95x2.76in

    Color: As Shown

    Quantity: 1 Pc

    Note:.

    The adaper don't support ThinkPad Wlan card(FRU#)

    Not Includes the NGFF Wlan Card !!

    Transition: 1cm=10mm=0.39inch.

    Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.

    Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

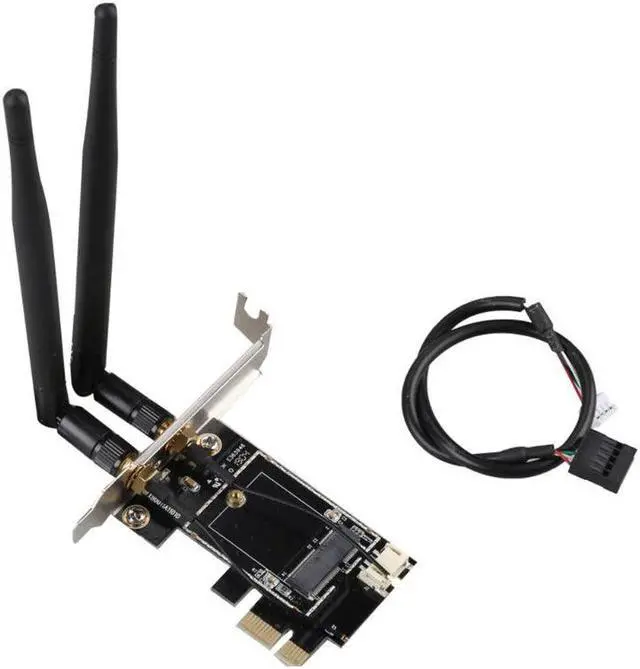

    Package Includes:

    1 x M.2/NGFF Wireless Card to PCI express Adapter

    1 X The 8cm Iron baffle

    1 x big Screw
