WS-C2960CX-8TC-L Compact Switch 2960-CX 8 - port compact Switch Layer 2 - 8 x 10/100/1000 Ethernet Ports, 2 SFP&2GE uplinks- LAN Base

WS-2960CX-8TC-L Specification
Ethernet Ports

8 x 10/100/1000 Gigabit Ethernet

PoE
Output Ports

N/A

Available
PoE Power

N/A

Uplinks

2 x 1G copper plus

2 x 1G SFP

Default Software

LAN Base

Forwarding Bandwidth

12 Gbps

Switching Bandwidth (full-duplex capacity)

24 Gbps

Flash memory

128 MB

Memory DRAM

512 MB

Max VLANs

255

VLAN IDs

4000

Maximum transmission unit (MTU)

Up to 9000 bytes

Jumbo frames

9198 bytes

Forwarding rate 64 Byte Packet

17.9 mpps

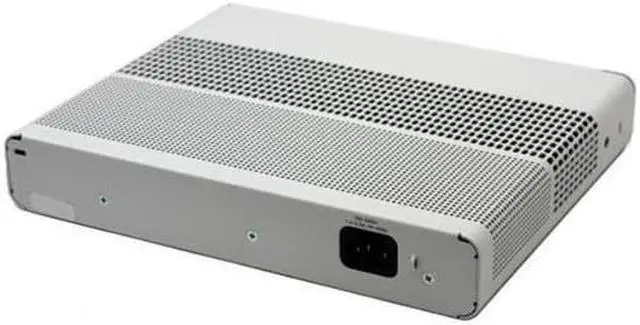

Power connectors

- Customers can provide power to a switch by using the internal power supply.

The connector is located at the back of the switch.

The internal power supply is an autoranging unit

- The internal power supply supports input voltages between 100 and 240VAC
- Use the supplied AC power cord to connect the AC power connector to an AC power outlet

Indicators

Per-port status: Link integrity, disabled, activity, speed, full-duplex

System status: System, link status, link duplex, link speed

Dimensions
(H x W x D)

1.75 x 10.6 x 8.4 in ( 4.44 x 26.9 x 21.3 cm)

Weight

3.8 lb ( 1.72 Kg)

Package Weight

9.66 lb ( 4.38 Kg)

Operating* temperature up to 5000 ft (1524 m)

-5°C to +45°C

(+23°F to +113°F)

Operating* temperature up to 10, 000 ft (3048 m)

-5°C to +45°C

(+23°F to +113°F)

Storage temperature up to 15, 000 ft (4572 m)

-25°C to +70°C

(-13°F to +158°F)

Operating altitude

Up to 3048 m

(Up to 10, 000 ft)

Storage altitude

Up to 4000 m

(Up to 15, 000 ft)

Operating relative humidity

5% to 95% noncondensing

Storage relative humidity

5% to 95% noncondensing

Mean time between failure (MTBF)

756, 260
