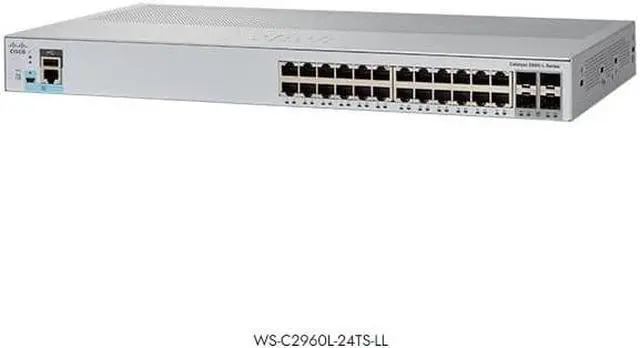

WS-C2960L-24TS-LL 2960-L Switch 2960L 24 port GigE, 4 x 1G SFP, LAN Lite (Asia Pacific Part Number: WS-C2960L-24TS-AP)
- Product Code
- WS-C2960L-24TS-LL
- IOS
- LAN Lite
- Forwarding bandwidth
- 28 Gbps
- Switching bandwidth
- 56 Gbps
- 10/100/1000 Ethernet Ports
- 24
- Uplink Interfaces
- 4 x 1G SFP
- Fanless
- Y
- DRAM
- 512 MB
- Flash memory
- 256 MB
- Dimensions (H x D x W)
- 1.73 x 9.45 x 17.5 in. (4.4 x 24 x 44.5 cm)
- Net Weight
- 6.61 lb (3.0 kg)
- Product Details
+
+
Overview
Specs
Reviews
WS-C2960L-24TS-LL Specification
Configurations
10/100/1000 Ethernet Ports
24
Uplink Interfaces
4 SFP
Available PoE Power
-
Fanless
Y
Dimensions (H x D x W)
1.73 x 9.45 x 17.5 in. ( 4.4 x 24 x 44.5 cm)
Net Weight
6.61 lb ( 3.0 kg)
Console Ports
RJ45 Ethernet
1
USB mini-B
1
USB-A port for storage and Bluetooth console
1
Memory and Processor
CPU
ARMv7 800 MHz
DRAM
512 MB
Flash memory
256 MB
Performance
Forwarding bandwidth
28 Gbps
Switching bandwidth
56 Gbps
Forwarding rate (64-byte L3 packets)
41.67 Mpps
Unicast MAC addresses
8K
Maximum active VLANs
64
VLAN IDs available
4094
Maximum STP instances
64
Maximum SPAN sessions
1
MTU-L3 packet
9198 bytes
Jumbo Ethernet frame
10, 240 bytes
MTBF in hours (Data)
2, 412, 947
MTBF in hours (PoE)
909, 838
Configurations
10/100/1000 Ethernet Ports
24
Uplink Interfaces
4 SFP
Available PoE Power
-
Fanless
Y
Dimensions (H x D x W)
1.73 x 9.45 x 17.5 in. ( 4.4 x 24 x 44.5 cm)
Net Weight
6.61 lb ( 3.0 kg)
Console Ports
RJ45 Ethernet
1
USB mini-B
1
USB-A port for storage and Bluetooth console
1
Memory and Processor
CPU
ARMv7 800 MHz
DRAM
512 MB
Flash memory
256 MB
Performance
Forwarding bandwidth
28 Gbps
Switching bandwidth
56 Gbps
Forwarding rate (64-byte L3 packets)
41.67 Mpps
Unicast MAC addresses
8K
Maximum active VLANs
64
VLAN IDs available
4094
Maximum STP instances
64
Maximum SPAN sessions
1
MTU-L3 packet
9198 bytes
Jumbo Ethernet frame
10, 240 bytes
MTBF in hours (Data)
2, 412, 947
MTBF in hours (PoE)
909, 838
