Size: 120*94*155±3mm
Weight: 508g±10%
Supported platforms: LGA1200/LGA1700/AMD4
Number of heat pipes: 4 heat pipe
Heat pipe material: copper
Fin Material: Aluminum

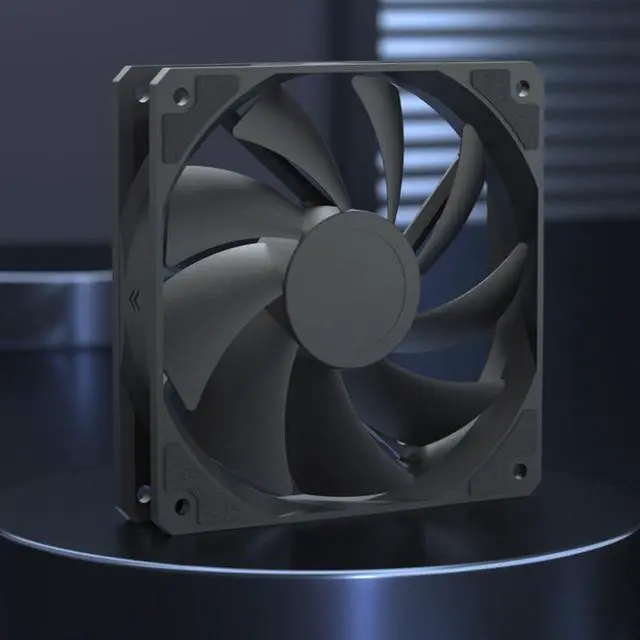

Fan
Size: 120*120*25mm
Weight: 130g±10%
Fan air volume: 62CFM±10%
Fan pressure: 1.5mm/H2O±10%
Fan noise: 30dB(A)
Input current: 0.28A±10%
Input voltage: 12V
Input power: 3.36W±10%
Full load speed: 1650RPM±10%
Bearing type: MHDB
185W heat dissipation design, ARGB fan, thin tower design, direct contact with 4 heat pipes, easy to install buckles
Compatible with 4 memory sticks, the cloth blocks the light bar light
The middle of the fins is reinforced with 8mm solid aluminum rods to avoid heat sink deformation caused by violent transportation of the whole machine

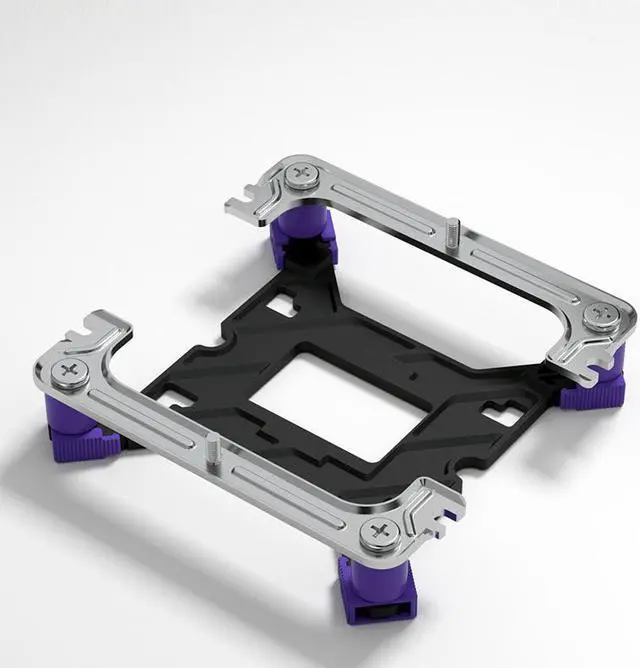

The brand-new fan locking method uses stainless steel sheets and screws to fix the fan, avoiding the fan falling caused by the traditional wire buckle during transportation
Heat pipe direct contact process
2 kinds of lighting modes, ARGB and Shenguang synchronization, the main board without ARGB function can also realize the illusion streamer effect
