Noctua NF-A9x14 PWM, Premium Quiet Fan, 4-Pin (92x14mm, Brown)

Brand: Noctua
MPN: Noctua NF-A9x14 PWM

Noctua NF-A9x14 PWM Premium Quiet Fan 4-Pin (92x14mm Brown)
Product Description

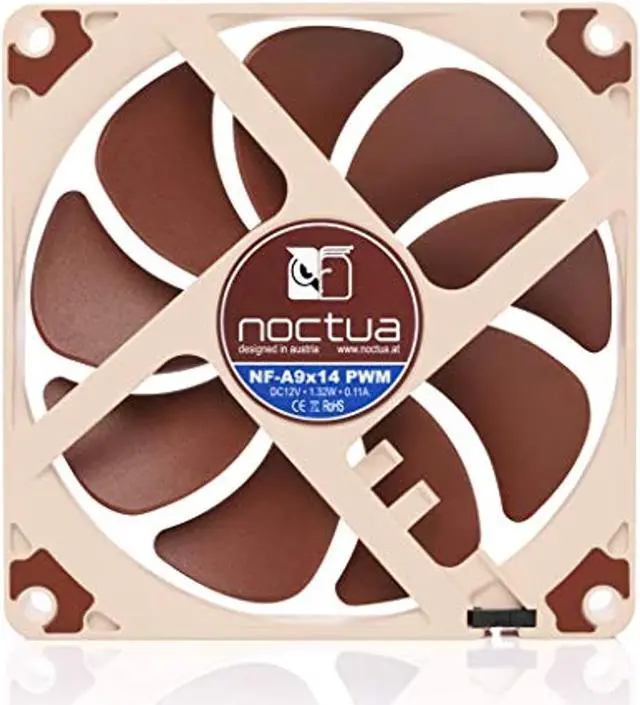

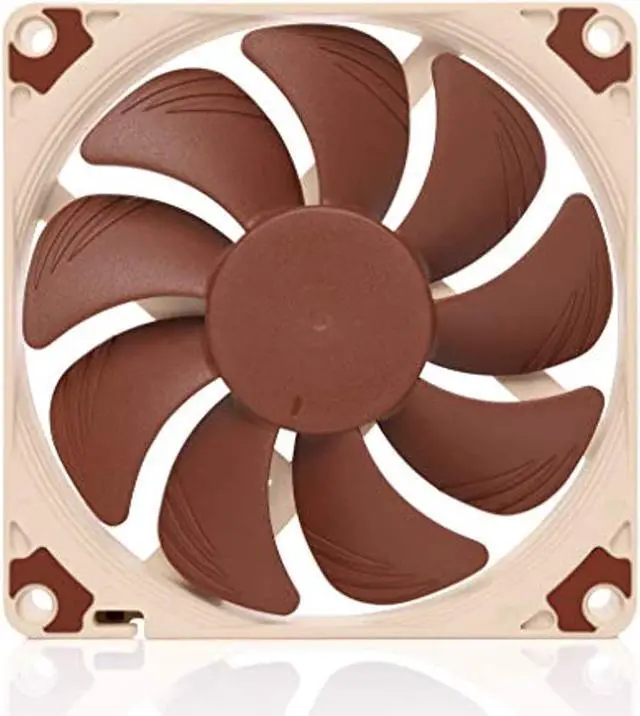

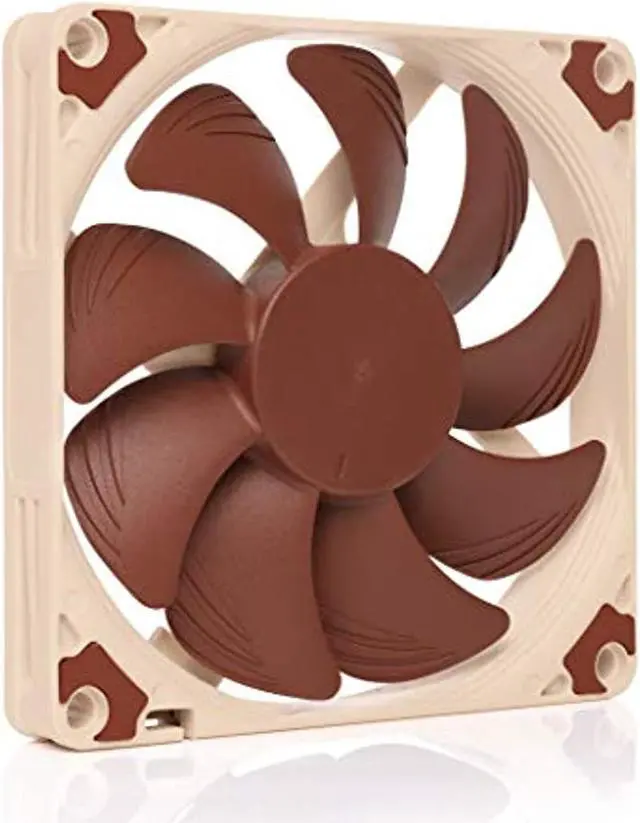

Featuring Noctua’s AAO frame and sophisticated aerodynamic design measures such as Flow Acceleration Channels the NF-A9x14 is a highly optimised premium quality quiet fan in 92x14mm size. Due to its thickness of only 14mm the NF-A9x14 is a perfect match for low profile CPU coolers and all other applications that require slimmer fans. Noctua’s custom-designed PWM IC for fully automatic speed control and reference class SSO2 bearings ensure superb running smoothness and excellent long-term stability. Topped off with modular cabling and a Low-Noise Adaptor the NF-A9x14 is a premium choice for the highest demands.

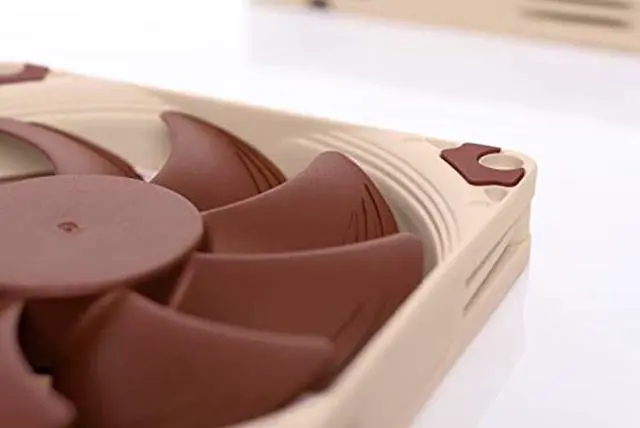

^{AAO frame}

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures both of which further refine the fan's performance/noise efficiency.

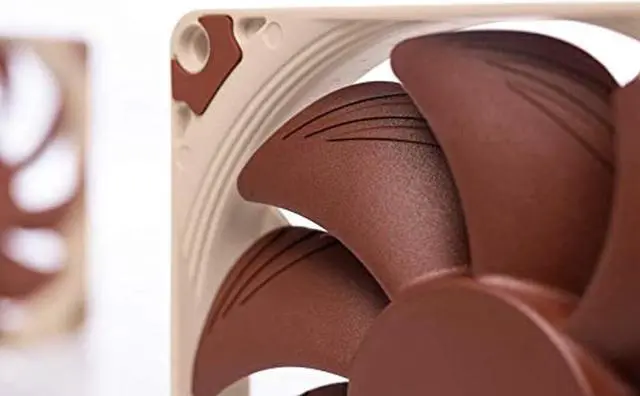

Read more ^{Flow Acceleration Channels}

The NF-A9x14 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

^{SSO2 bearing}

The NF-A9x14 features the further optimised second generation of Noctua's renowned time-tested SSO bearing. With SSO2 the rear magnet is placed closer to the axis to provide even better stabilisation precision and durability.

^{Integrated anti-vibration pads}

Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.

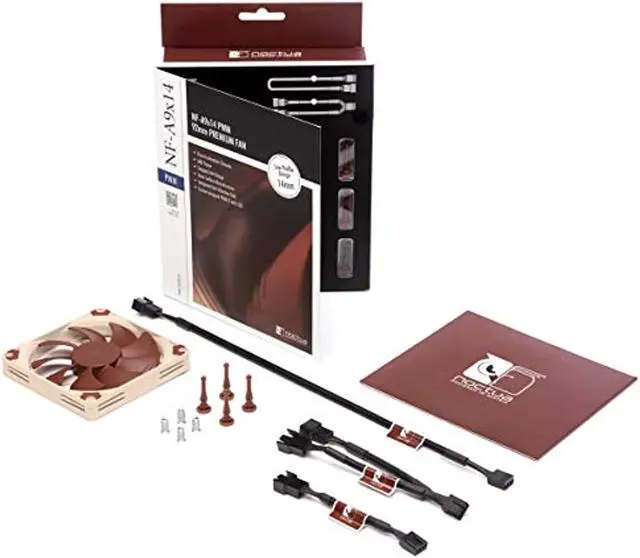

^{Scope of delivery}

• Low-Noise Adapter (L.N.A.)
• 4-Pin Y-Cable
• 30cm Extension Cable
• 4 Vibration-Compensators
• 4 Fan Screws

Read more ^{14mm low profile design}

Measuring only 14mm in thickness the NF-A9x14 is much slimmer than standard 92x25mm fans. This makes it ideal for all applications where standard fans would take up too much space such as low profile CPU coolers in HTPC builds or server environments.

Read more NF-A9x14 PWM NF-A9x14 HS-PWM chromax.black.swap Connector 4-pin PWM 4-pin PWM Voltage 12 V 12 V RPM Max: 2200 / Min: 500 Max: 2500 / Min: 600 RPM with L.N.A. 1700 - Acoustical Noise 199 dB(A) 236 dB(A) Acoustical Noise with L.N.A. 135 dB(A) - Size (mm) 92x92x14 mm 92x92x14 mm Colour Brown & Beige Black with swappable coloured anti-vibration pads

• Premium quiet fan 92x92x14 mm 12V 4-pin PWM max. 2200 RPM max. 19.9 dB(A) >150000 h MTTF
• Award-winning 92x14mm A-series fan with Flow Acceleration Channels and Advanced Acoustic Optimisation frame for superior quiet cooling performance
• 14mm slim design is ideal for low-profile 9cm CPU coolers (e.g. Noctua NH-L9 series) compact PC cases and other space-restricted applications
• 4-pin PWM version for automatic speed control via 4-pin PWM fan headers broad rpm speed range (1700rpm max. with supplied Low-Noise Adaptor)
• Includes anti-vibration mounts fan screws Low-Noise Adaptor extension cable and y-cable for running two PWM fans on the same header
