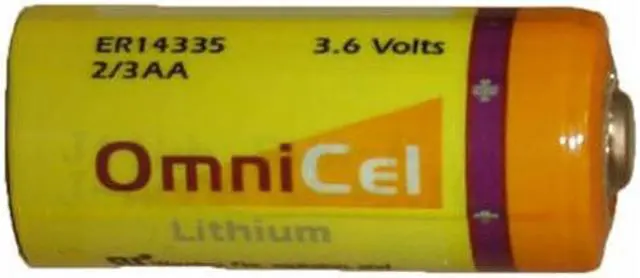

2/3 AA Omnicel 3.6 Volt (ER14335) Primary Lithium Battery (1650 mAh)

Chemistry: Lithium Thionyl Chloride (Li-SOCl2)
Nominal Capacity: 1650 mAh
Open Circuit Voltage: 3.66V (at +20C +68F)
Nominal Voltage: 3.6V (at 1mA +20C +68F)
Max.
Continuous Current: 75 mA Max
Pulse Current: 150 mA
Brand: Omnicel
Storage Temperature: +30C +86 F max (recommended)
Operating Temperature: -55C / +85C
Diameter (max): 14.5 mm ( 0.55 in)
Height (max): 33.5 mm ( 1.32 in)
Typical Weight: 14g ( 0.5 oz)
UL Approved

Backup power for circuit board.
General purpose; camera/electronic cells
Medical equipment; military/aerospace
Telecommunications; water/electricity meter
LED lighting applications
Others

Equivalent Batteries
Tadiran TL-2155, Tadiran TL-4955, Tadiran TL-5155, Tadiran TL-5955
Xeno XL-055F

This battery is not rechargeable. Do not try to recharge.
The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
Please discharge the battery few minutes with 100mA, if the battery voltage is lower than your need or consult ABLE.
Don't use different models of battery in series.
Soldering the tab should be finished in few seconds.
Do not use if the battery casing was mangled
This battery is not rechargeable. Do not try to recharge.
The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
Please discharge the battery few minutes with 100mA, if the battery voltage is lower than your need or consult ABLE.
Don't use different models of battery in series.
Soldering the tab should be finished in few seconds.
Do not use if the battery casing was mangled
