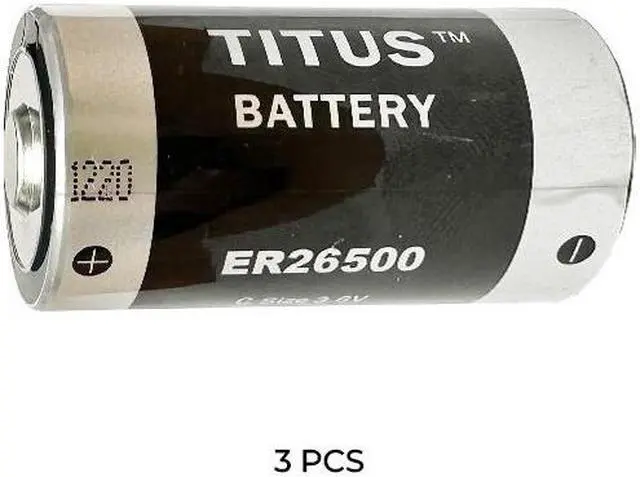

3-Pack 3.6 Volt ER26500 Titus C Primary Lithium Battery (8500 mAh)

Size: C
Capacity: 8500mAh
Chemistry: Lithium Thionyl Chloride (Li-SOCI2)
Voltage: 3.6V
Brand: Titus
Hermetic glass-to-metal sealing.
Non-flammable electrolyte.
UL Approved --- BBCV2. MH30127
Quantity: 3 pcs

Nominal capacity 8.5A h ( 8500 mAh)
Open circuit voltage(at +20C +68F) 3.66V
Nominal voltage(at 1mA +20C +68F) 3.6V
Pulse capability: Typically up to 400 mA
Max.
Continuous current: 200mA Max
Pulse current: 400mA
Storage (recommended) +30C +86 F max
Operating temperature range -55C / +85C
lithium-thionyl chloride(Li-SOCl2) technology
Self discharge is low at less than 1% per annum at +68F, giving an effective shelf life of 10 years.
Diameter (max): 26.2 mm ( 1.02 in)
Height (max): 50.5 mm ( 1.98 in)
Typical weight: 55g ( 1.8 oz)

LS26500, LS26500C, TL-4920, TL-5920, TL-2200,
SB-C01, SB-C02, SL-770, XL-140F, XL-145F, PT-2200

Main applications:
Radio communication and other military applications
Alarms and security systems
Beacons and emergency location transmitters
GPS
Metering systems
Sonobuoys
LED lighting applications
Memory backup for computers
Others

Lithium Thionyl Chloride has the highest energy density of any practical Lithium battery chemistry, three times greater than Alkaline (Zinc Manganese Dioxide) batteries.

This is not rechargeable battery. Do not try to recharge it
The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
Do not use if the battery casing was mangled.
Please discharge the battery few minutes with 100mA, if the battery voltage is lower than your need or consult ABLE.
Don't use different models of battery in series.
Soldering the tag should be finished in few seconds.
This is not high drain battery, please don't use it for application with discrging current > 200mA
