Zebra DS3678 Series industrial grade 2D scanning code gun DS3678-DP Ultra-Rugged Scanner ONLY

Scanner only
No cradle NO USB cable NO power supply, NO line cord

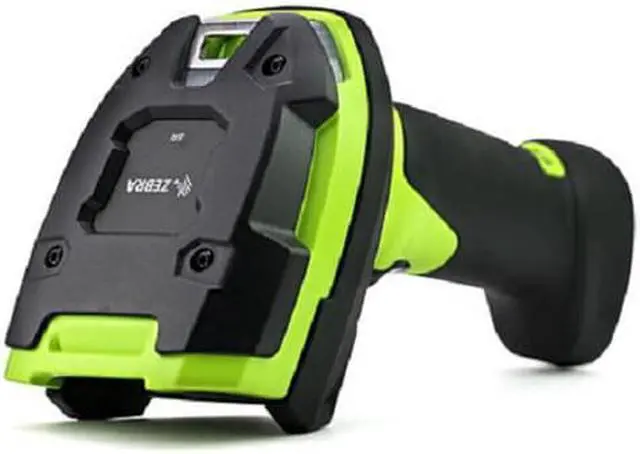

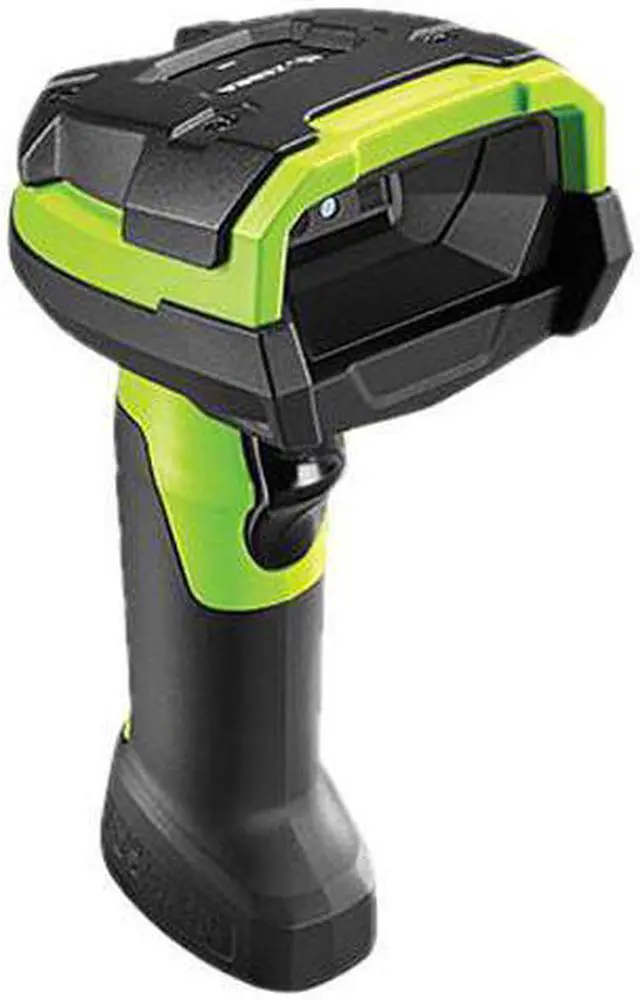

Zebra DS3678-DP Ultra-Rugged Scanner
Unstoppable performance for Direct Part Marks (DPM) and 1D/2D barcodes
The Zebra DS3678-DP is a cordless scanner that brings the dependable lightning-fast capture of virtually every direct part mark and traditional 1D and 2D barcode displayed on a screen or printed on a label. The direct part mark (DPM) is a kind of permanent mark produced with methods such as embossing, etching, dot peen, laser marking and more, and often used in aerospace, automotive and other manufacturing plants where end-to-end traceability of every product component is required.

The ultra-rugged design is practically indestructible, and dust-tight, sprayproof and waterproofed to IP67, making this scanner ideal for punishing environments. The scanners couldn’t be easier and less time-consuming to deploy and manage. And when it comes to cordless technology, the DS3678-DP is loaded with Zebra-only features that put it in a class of its own. Count on the DS3678-DP — the unstoppable performance you need to maximize workforce productivity and throughput, ensure traceability, reduce production cycle times and prevent unplanned production line downtime.
Form Factor
Handheld
Connectivity
Cordless
Scan Engine
2D Area Imager

Connectivity
Included Cables
Includes cradle, USB cable, power supply, and line cord
Interfaces Supported
USB, RS232, Keyboard Wedge, Industrial Ethernet: EtherNet/IP, Profinet, Modbus, TCP & Std TCP/IP
Cordless Type
Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles

Scan Performance
Light Source
Illumination Diffuse: Ring of red 634 nm LEDs
Aimer: 655 nm laser
Pitch
±60 degree
Roll
±360 degree
Yaw
±60 degree
Print Contrast Ratio (Minimum)
15% minimum reflective difference
Decoding Capability
1D
Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes

IUID Support
Supports IUID parsing, the ability to read and separate IUID fields per application requirements

Electrical
Battery
PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
Input Voltage
Host powered: 4.5 VDC min., 5.5 VDC max.
External power supply: 11.4 VDC min., 12.6 VDC max.

Mechanical
Color
Green/Black
Dimensions
7.30" x 3.00" x 5.60"
Weight
0.90 lb.

Features
Features
Superior scanning performance on DPM and standard 1D/2D barcodes

Ultra-rugged - the most indestructible design in its class

Advanced illumination system

Easy management with our complimentary industry-best tools

Extreme temperature rating

A Bluetooth model in a class of its own for superior cordless freedom

Faster pick-list processing

Instantly connect to your Industrial Ethernet network

Three flexible feedback modes

DataCapture DNA
Drop
Withstands multiple 8.00 ft. / 2.40 m drops to concrete
