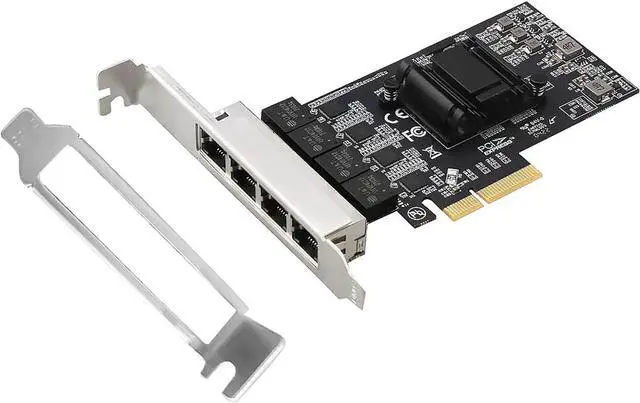

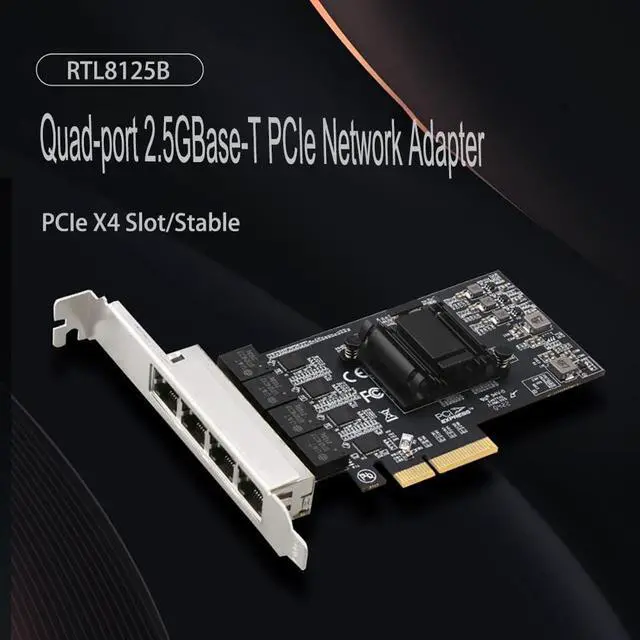

Quad-Port 2.5GBase-T PCIe Network Adapter RTL8125B 2500/1000/100Mbps PCI Express Gigabit Ethernet Card RJ45 LAN Controller Support PXE for Windows/Linux/MAC with Low Profile
- The Realtek RTL8125 chipset, compliant with IEEE 802.3az and IEEE 802.3u supports the PCIe 2.1 interface. It provides up to a 250% increase in data rate and requires no changes to existing cable infrastructure.
+
+
Overview
Reviews
Product Description
The RTL8125B 2.5G quad-port network adapter combines a quad-speed IEEE 802.3 -compliant media access controller with a quad-speed Ethernet transceiver that is compliant with the 10/100Mbps Ethernet IEEE 802.3 u specification, the IEEE 802.3 ab 1000Mbps Ethernet specification and the IEEE 802.3 bz 2500Mbps Ethernet specification. It is also available via CAT5e UTP cable or CAT3 UTP (10Mbps only) cable to provide high speed transmission. It is suitable for multiple market segments and emerging applications, such as desktops, workstations, servers, communication platforms and embedded applications.
Specification:
Auto-negotiation with extended next page functionality
Support for switching/sex/skew correction Cross-detection and auto-correction
Support for hardware ECC (Error Correction Code), hardware CRC (Cyclic Redundancy Check) function
Support for PCI MSI (Message Signal Interrupt) and MSI-XSupport for ECMA-393 ProxZzzy standard for sleeping hosts
Wake-on-LAN and "RealWow! " technology (remote wake-up) support

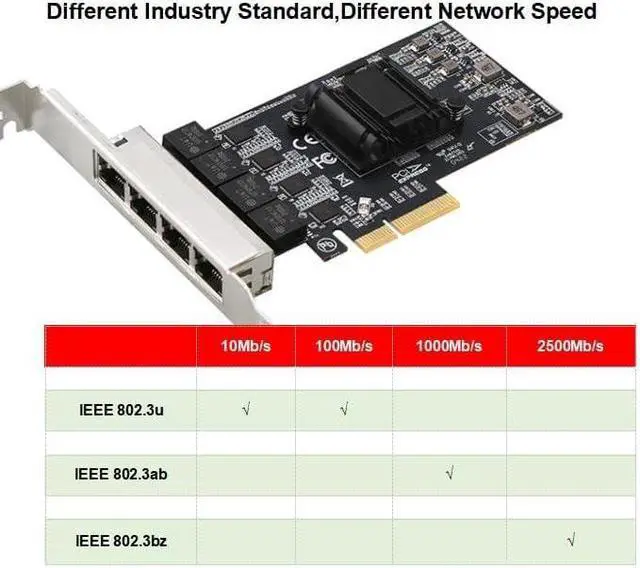

Compatible with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab
Supports IEEE1588v1, IEEE1588v2, IEEE 80.2AS time synchronization
Supports IEEE 802.1Q av credit based shaping algorithm Support IEEE 802.1P Layer 2 priority coding
Main Chipset: ASM1812+Realtek RTL8125BSupport IEEE 802.1Q VLAN tagging
Support IEEE 802.3 az-2010 Support for IEEE 802.3 bz-2016 (NGBASET)
Support for full duplex flow control (IEEE 802.3 x)
Support jumbo frames up to 16K bytes
Support for Virtual Machine Queuing (VMQ)
Support quad-core receive-side scaling (RSS)

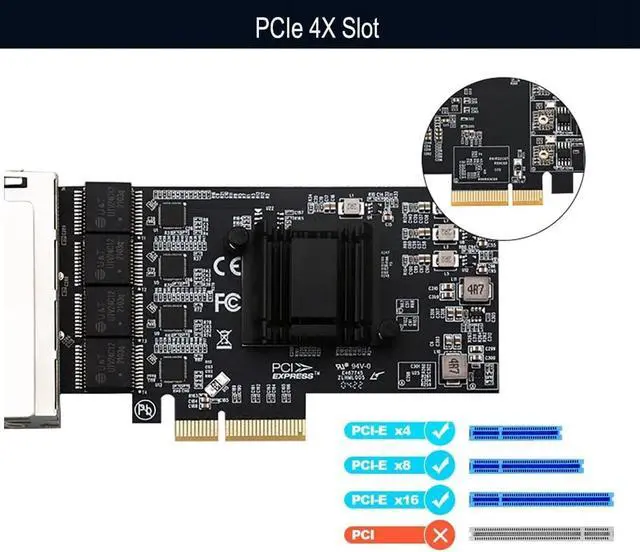

Bus Type: PCIe x1 2.5G bps/ 5.0G bps, revision v 2.1
Transmission Media: 4 x 2.5G RJ45 ports
Transfer Rate: 2.5G /1000/100Mbps
Network Mode: 2.5G and 1G Lite mode supported
System Requirements: Linux, Win 7/Win 8/Server 2008/Win 8.1 /Server 2012/ Win 10 32/64bit
Packing list1xPCIE 2.5G LAN Card
1x Low profile Bracket
1xManual
The RTL8125B 2.5G quad-port network adapter combines a quad-speed IEEE 802.3 -compliant media access controller with a quad-speed Ethernet transceiver that is compliant with the 10/100Mbps Ethernet IEEE 802.3 u specification, the IEEE 802.3 ab 1000Mbps Ethernet specification and the IEEE 802.3 bz 2500Mbps Ethernet specification. It is also available via CAT5e UTP cable or CAT3 UTP (10Mbps only) cable to provide high speed transmission. It is suitable for multiple market segments and emerging applications, such as desktops, workstations, servers, communication platforms and embedded applications.
Specification:
Auto-negotiation with extended next page functionality
Support for switching/sex/skew correction Cross-detection and auto-correction
Support for hardware ECC (Error Correction Code), hardware CRC (Cyclic Redundancy Check) function
Support for PCI MSI (Message Signal Interrupt) and MSI-XSupport for ECMA-393 ProxZzzy standard for sleeping hosts
Wake-on-LAN and "RealWow! " technology (remote wake-up) support
Compatible with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab
Supports IEEE1588v1, IEEE1588v2, IEEE 80.2AS time synchronization
Supports IEEE 802.1Q av credit based shaping algorithm Support IEEE 802.1P Layer 2 priority coding
Main Chipset: ASM1812+Realtek RTL8125BSupport IEEE 802.1Q VLAN tagging
Support IEEE 802.3 az-2010 Support for IEEE 802.3 bz-2016 (NGBASET)
Support for full duplex flow control (IEEE 802.3 x)
Support jumbo frames up to 16K bytes
Support for Virtual Machine Queuing (VMQ)
Support quad-core receive-side scaling (RSS)
Bus Type: PCIe x1 2.5G bps/ 5.0G bps, revision v 2.1
Transmission Media: 4 x 2.5G RJ45 ports
Transfer Rate: 2.5G /1000/100Mbps
Network Mode: 2.5G and 1G Lite mode supported
System Requirements: Linux, Win 7/Win 8/Server 2008/Win 8.1 /Server 2012/ Win 10 32/64bit
Packing list1xPCIE 2.5G LAN Card
1x Low profile Bracket
1xManual
