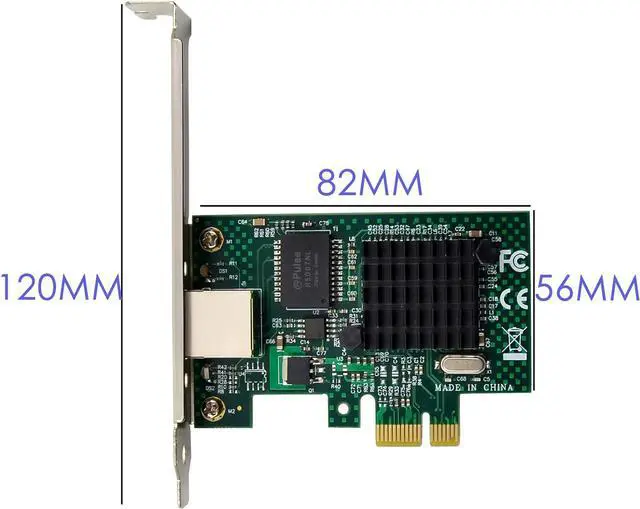

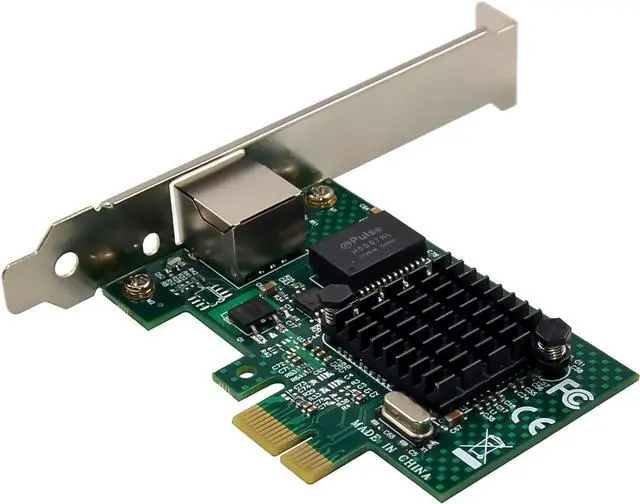

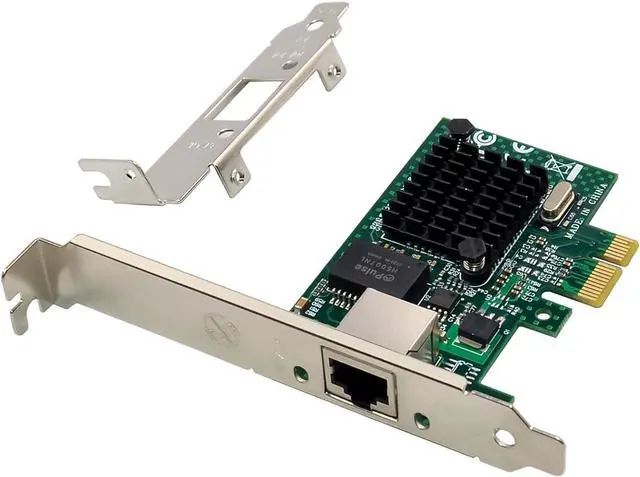

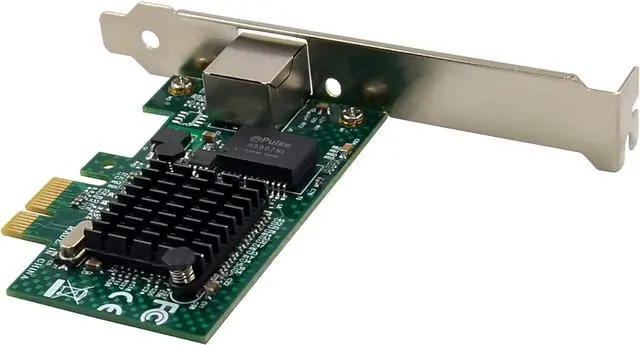

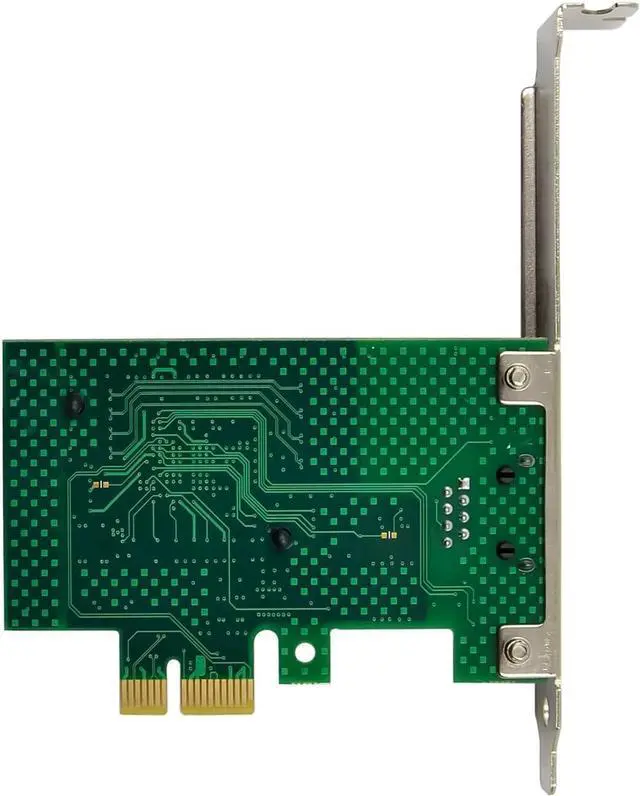

PCIe Gigabit Ethernet Server Adapter with Broadcom NetXtreme BCM5751 10/100/1000Mbps Gigabit Desktop PCI-E Network Card NIC
- Integrated 10/100/1000BASE-T Transceiver,Includes Half Height Bracket
+
+
Overview
Specs
Reviews
Product Description
Broadcom NetXtreme 10/100/1000Mbps Gigabit Desktop PCI-E Network Card - BCM5751 NIC Description
The PCIe BCM5751 NetXtreme Gigabit network card is a fully integrated 10/100/1000BASE-T Gigabit Ethernet media access control and physical layer transceiver solution for high-performance network applications. The BCM5751 combines a triple-speed, IEEE 802.3 compliant media access control, PCI Express bus interface, on-chip buffer memory, and integrated physical layer transceiver in a single device, it is provides a complete single-chip Gigabit Ethernet NIC or LOM solution.
High-performing, auto-negotiating 10/100/1000 connection
Easy, cost-effective migration to Gigabit Ethernet over existing CAT-5 cabling
Connectors: RJ-45
IEEE Standard/Network Topology: 10BASE-T, 100BASE-TX, 1000BASE-T
Bus Speed: 32/33, 32/66
Data Rate (s) Supported per Port: 10, 100, 1000 Mbps
IEEE Support: 802.2 and 802.3 abEthernet Controllers: BCM5751 (PEG1)
Port Density: 1 Port
Standard: IEEE Std 802.3 IEEE Std 802.2 IEEE Std 802.3 x IEEE 802.1 p IEEE Std 802.3 z
PCI-Express 1.1 form factor- 1 x 2.5G bps line
Integrated 10/100/1000 BASE-T transceiver
10/100/1000base-T triple-speed MAC
High-speed RISC core with 24-KB cacheSMBus 2.0 controller
Wake-on-LAN power switching circuit
Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds
TCP, IP, and UDP checksum
Microsoft large Send Offload
Large burst readInterrupt coalescing
Industry-compliant alerting features
Alert Standard Format (ASF) 2.0 support
Secure power-on and power-off
Fast hardware authentication (SHA-1, HMAC, MD5)
Ture hardware random number generation
Integrated TPM functionality
TCP/IP stack offloads significantly reduce utilization of CPU
TCP/IP stack offloads significantly increase throughput to enable faster downloads of large files
Drivers for NT/2000/XP/Win7 / Win8 / Win10 / Vista / Sever2008 / Sever 2012 / Linux 2.2 and above
Package content1 x PCIe BCM5751 NetXtreme Gigabit Network card
1 x Users Manual
1 x CD
1 x Low profile bracket
Broadcom NetXtreme 10/100/1000Mbps Gigabit Desktop PCI-E Network Card - BCM5751 NIC Description
The PCIe BCM5751 NetXtreme Gigabit network card is a fully integrated 10/100/1000BASE-T Gigabit Ethernet media access control and physical layer transceiver solution for high-performance network applications. The BCM5751 combines a triple-speed, IEEE 802.3 compliant media access control, PCI Express bus interface, on-chip buffer memory, and integrated physical layer transceiver in a single device, it is provides a complete single-chip Gigabit Ethernet NIC or LOM solution.
High-performing, auto-negotiating 10/100/1000 connection
Easy, cost-effective migration to Gigabit Ethernet over existing CAT-5 cabling
Connectors: RJ-45
IEEE Standard/Network Topology: 10BASE-T, 100BASE-TX, 1000BASE-T
Bus Speed: 32/33, 32/66
Data Rate (s) Supported per Port: 10, 100, 1000 Mbps
IEEE Support: 802.2 and 802.3 abEthernet Controllers: BCM5751 (PEG1)
Port Density: 1 Port
Standard: IEEE Std 802.3 IEEE Std 802.2 IEEE Std 802.3 x IEEE 802.1 p IEEE Std 802.3 z
PCI-Express 1.1 form factor- 1 x 2.5G bps line
Integrated 10/100/1000 BASE-T transceiver
10/100/1000base-T triple-speed MAC
High-speed RISC core with 24-KB cacheSMBus 2.0 controller
Wake-on-LAN power switching circuit
Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds
TCP, IP, and UDP checksum
Microsoft large Send Offload
Large burst readInterrupt coalescing
Industry-compliant alerting features
Alert Standard Format (ASF) 2.0 support
Secure power-on and power-off
Fast hardware authentication (SHA-1, HMAC, MD5)
Ture hardware random number generation
Integrated TPM functionality
TCP/IP stack offloads significantly reduce utilization of CPU
TCP/IP stack offloads significantly increase throughput to enable faster downloads of large files
Drivers for NT/2000/XP/Win7 / Win8 / Win10 / Vista / Sever2008 / Sever 2012 / Linux 2.2 and above
Package content1 x PCIe BCM5751 NetXtreme Gigabit Network card
1 x Users Manual
1 x CD
1 x Low profile bracket
