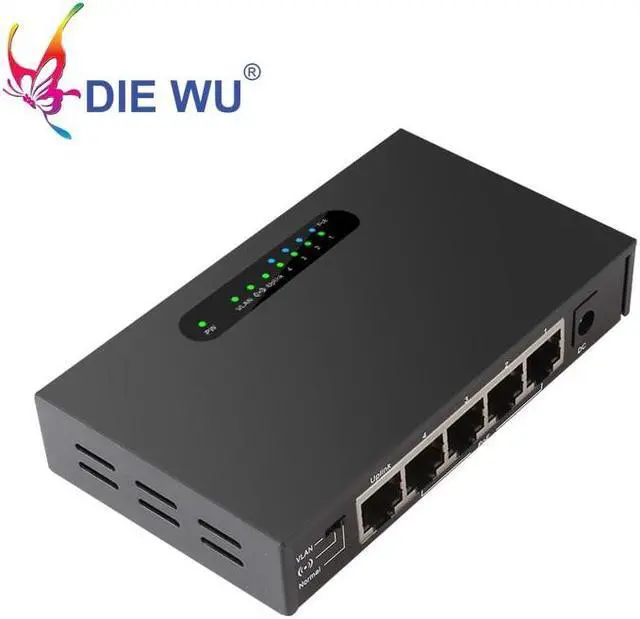

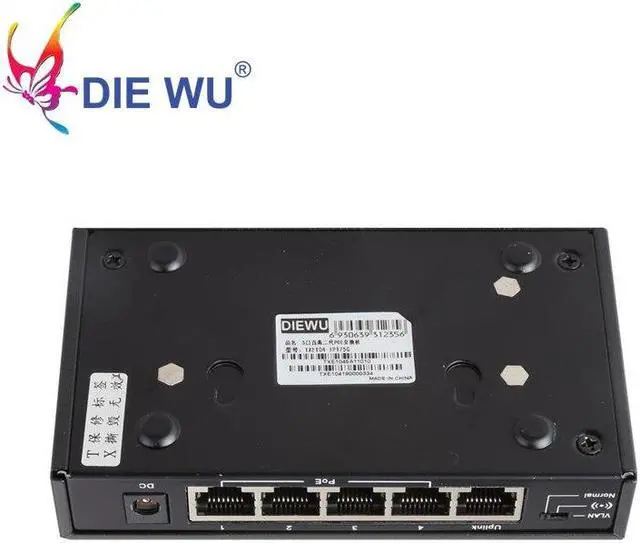

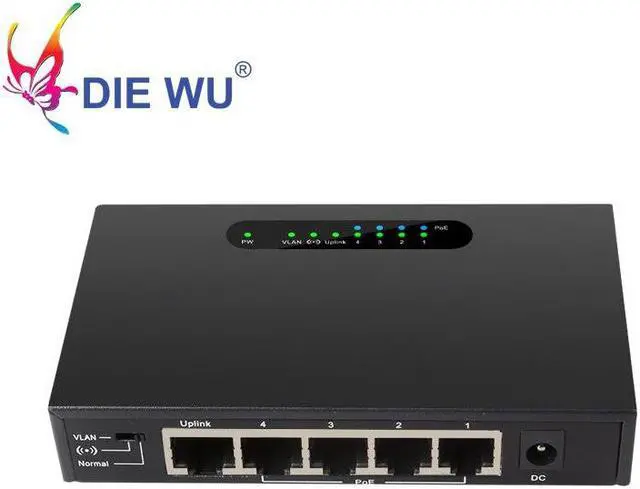

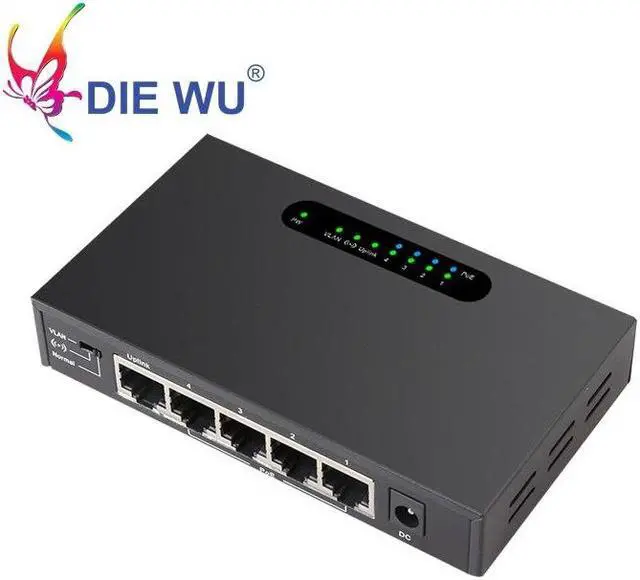

5 Port 10/100Mpbs POE Switch 4 POE Port and 1 Uplink Ethernet Support Extend 250m 52V network switch

5 Port 10/100Mpbs POE Switch 4 POE Port and 1 Uplink Ethernet Support Extend 250m 52V network switch
Model number: TXE104
  Hardware Specifications
Network Connector
5-port RJ45 for 10/100BASE-TX, auto MDI/MDIX
PoE Inject Port
4-port with 802.3af/at PoE injector function (Port 1 to Port 4)
LED Display
System:
Power (Green)

Per PoE port:
PoE (Red/Blue, Port 1 to Port 4)
LNK/ACT (Green, Port 1 to Port 5)
DIP Switch
Standard mode for 100M
Extend mode for 250m (Based on the cable category)
Switch Architecture
Store and Forward switch architecture
MAC Address Table
1K MAC address table with auto learning function
EST Protection
4KV
Switch Fabric
1Gbps
Switch Throughput
0.74Mpps @64bytes
Maximum Packet Size
1536bytes
Flow Control
Back pressure for half duplex. IEEE 802.3x pause frame for full duplex
Power Requirements
52V DC, 1.25A or 52V0.92A
Power Consumption
Max. 65watts,
Dimensions (W x D x H)
124*72*24 mm
