Name: GLOTRENDS SA3034A 4 Ports PCIe SATA 3.0 Expansion Card, Including SATA Cables and 1:5 SATA Splitter Power Cable, Support OS Booting, Compatible with Windows,Linux,Mac OS,NAS
Brand: GLOTRENDS
SKU: 17Z-00SW-00034
Price: 38.00 CAD
Availability: InStock
Rating: 4 (9 reviews)

GLOTRENDS SA3034A 4 Ports PCIe SATA 3.0 Expansion Card, Including SATA Cables and 1:5 SATA Splitter Power Cable, Support OS Booting, Compatible with Windows,Linux,Mac OS,NAS

Option: 4-Port, X1

20-Port, X1
16-Port, X1
6-Port, X2
4-Port, X1
24-port ,X8

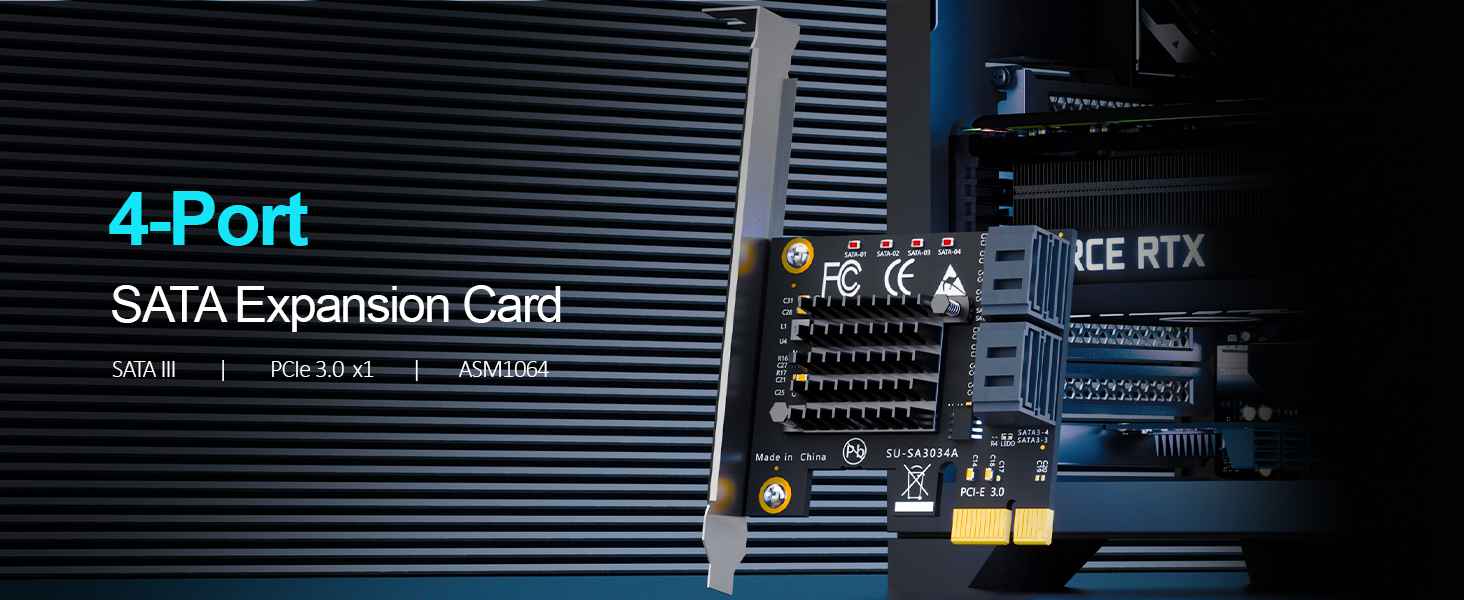

4-Port PCIe X1 SATA Card: PCI-Express X1 extends 4 x SATA III 6Gbps ports, then PC can access 4 x SATA drivers simultaniously. You can set up a storage pool, or configure Software RAID in Windows/Mac OS/Linux. (Noted: Can not support Hardware RAID)
Based on the ASM1064 chip, Upstream is PCI-Express 3.0 X1 Speed: 4 x SATA III 6Gbps ports share PCI-Express 3.0 X1 bandwidth (8Gbps), so 4 x SATA III drivers can not reach 6Gbps at the same time.

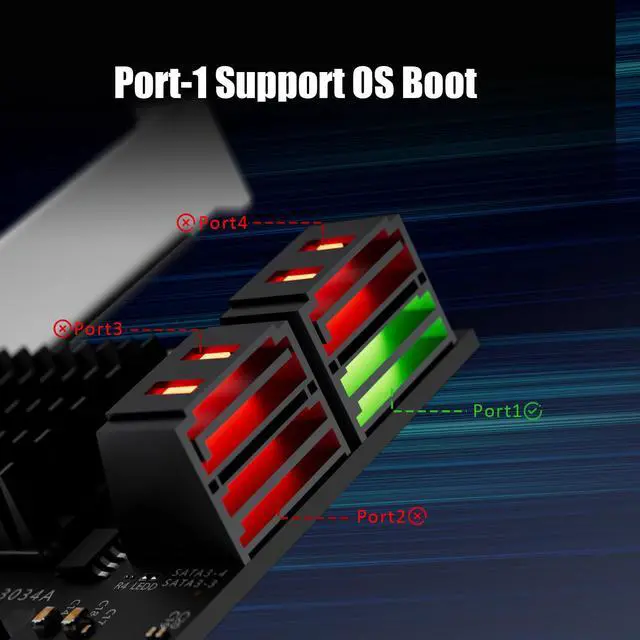

Only Port 1 Supprt OS Boot, and the other 3 ports can not support OS Boot
OS Compatibility: Plug-and-play in Windows/Mac OS/Linux/NAS. (Note: can not support Windows XP)
For Windows 7, please reinstall the driver according to the manual, download link: https://drive.google.com/drive/folders/16G_sGjexuniyPuJmluL2YRWH-z-NZOli?usp=sharing
Accessories: 4 x SATA III cable; 1 x 1:5 SATA Splitter Power Cable; 12cm Regular Profile Bracket and 8cm Low Profile Bracket

Model: SA3034A

Internal Interface	PCI-Express 3.0 X1
External Interface	4 x SATA III
Total Bandwidth	1GB/s
Chip Solution	ASM1064
OS Boot	Support
OS Compatibility	Windows/Mac OS/Linux/NAS ( no support Windows XP)
SATA Controller Mode	AHCI

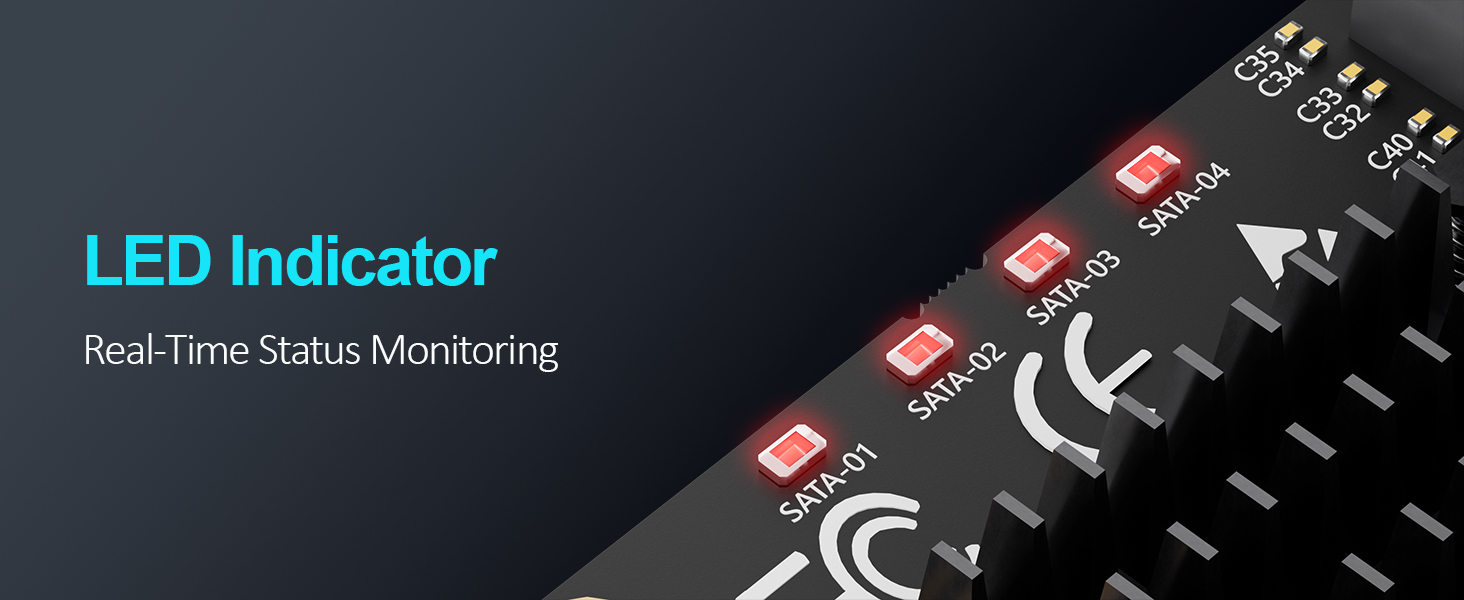

LED Indicator	Red color is working status, Red flashing is data reading/writing
Accessaries	4 x SATA III Cable (350mm/13.5inch); 1 x 1:5 SATA Power Cable

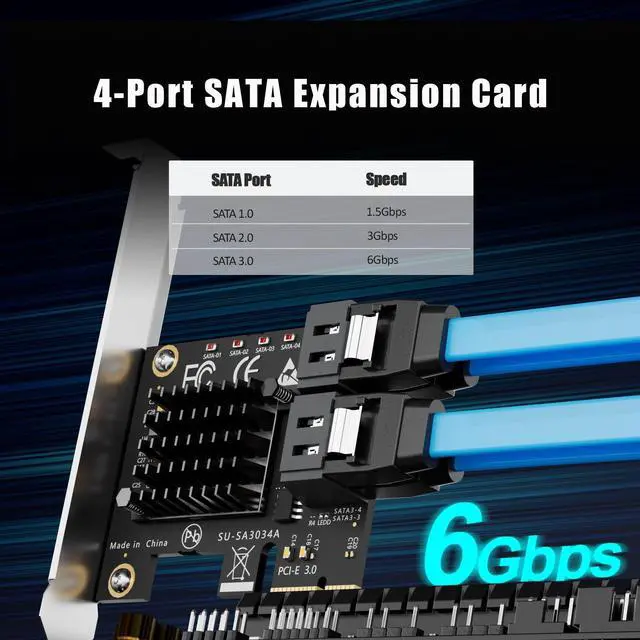

4 Port PCIe X1 SATA Adapter, Support OS Boot

PCI-Express X1 extends 4 x SATA III 6Gbps ports, so the Desktop PC/Server/NAS can access 4 x SATA drivers at the same time.
Set up a storage pool with 4 x SATA disks, and configure Software RAID in windows/Mac OS/Linux. (Note: Not support Hardware RAID)

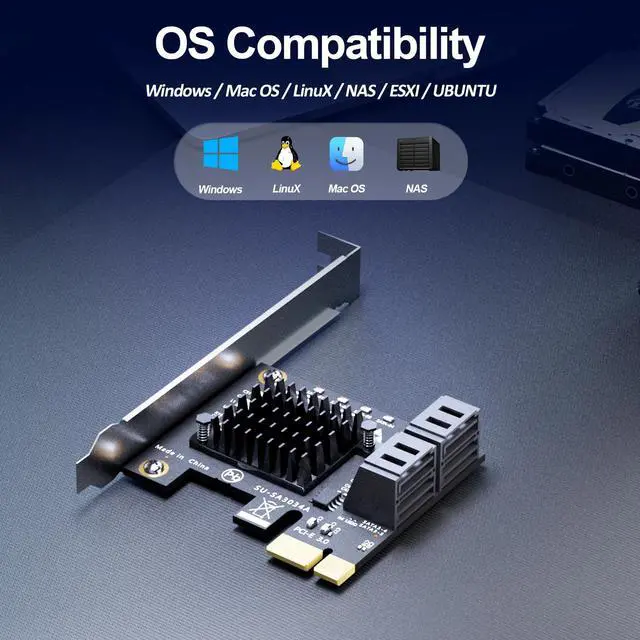

Widely OS Compatibility: No need extra driver. Plug and play in Windows/Mac OS/Linux/NAS/UBUNTU/ESXI.
Support OS Booting from SATA SSD (AHCI mode)
Includes all accessories, ready for operation: 4 x SATA III cable; 1 x 1:5 SATA Splitter Power Cable

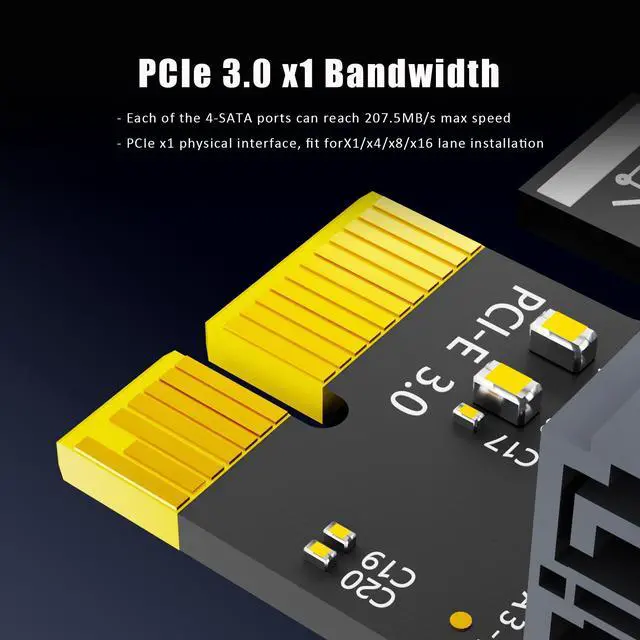

PCIE 3.0 X1 Speed

Most motherboards have a free PCI-Express X1 interface.
Use this PCI-Express X1 interface to connect a 20-port SATA hard drive storage pool
This is a high-capacity storage solution with the advantage of occupying only one PCI-Express X1 interface
PCI-Express 3.0 X1 (8Gbps) is fast enough for most needs

Only Port 1 Supprt OS Boot, and the other 3 ports can not support OS Boot

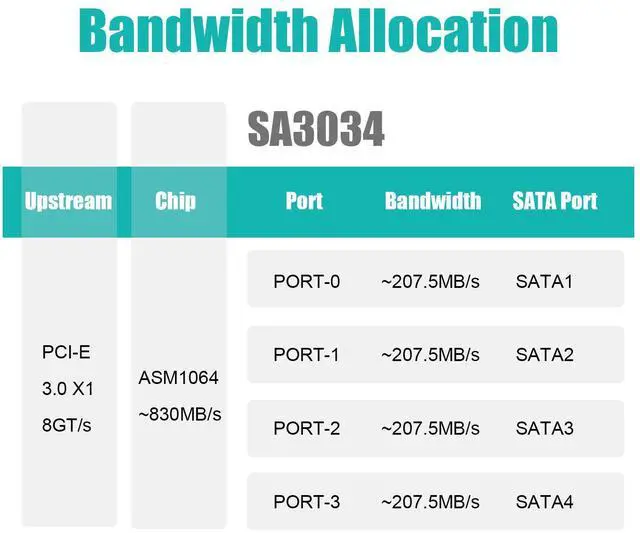

Bandwidth Allocation

SATA1: ~207.5MB/s
SATA2: ~207.5MB/s
SATA3: ~207.5MB/s
SATA4: ~207.5MB/s

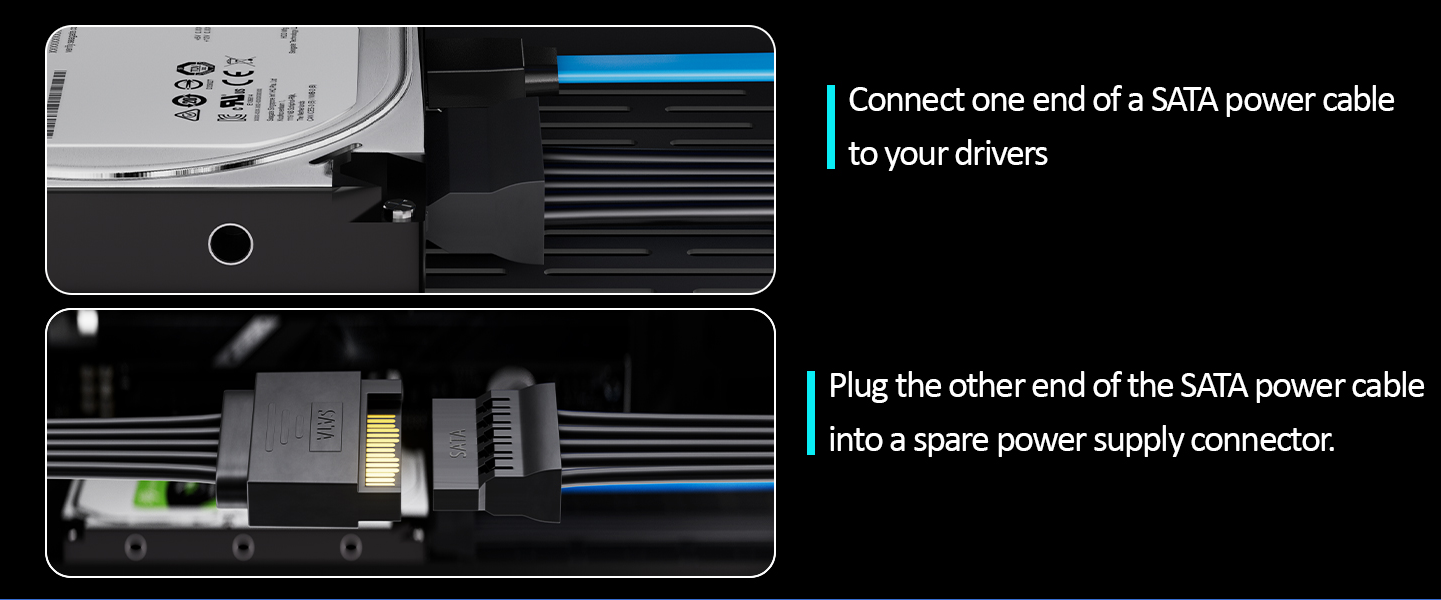

All cables are provided

1 x 1:5 SATA Splitter Power Cable (170mm:800mm:800mm:800mm)
4 x SATA III cable (350mm)

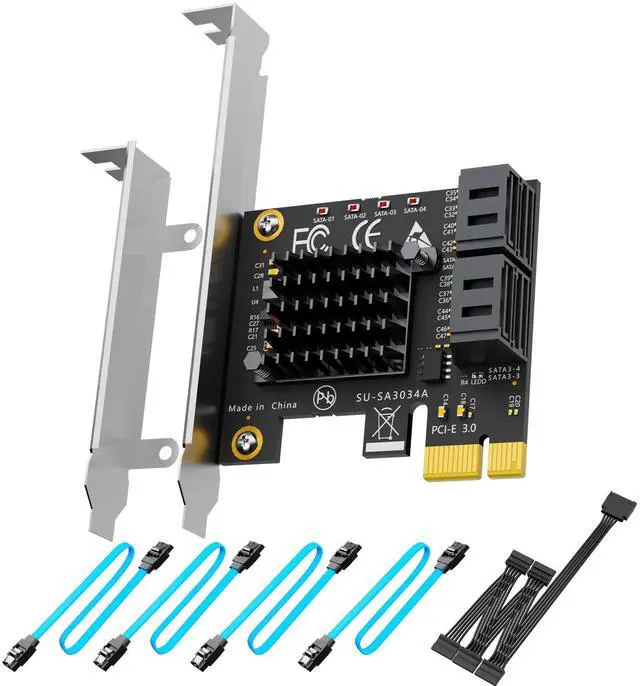

Package Including

4 port PCIe SATA Adapter
4 x SATA III cable
1 x 1:5 SATA Splitter Power Cable

Products	SA3034A	SA3026	SA3112J	SA3116J	SA3120J	SA3824A
Internal Interface	PCI-Express 3.0 X1	PCI-Express 3.0 X2	PCI-Express 3.0 X1	PCI-Express 3.0 X1	PCI-Express 3.0 X1	PCI-Express 3.0 X8
External Interface	4 x SATA III	6 x SATA III	12 x SATA III	16 x SATA III	20x SATA III	24x SATA III
Total Bandwidth	1GB/s	2GB/s	1GB/s	1GB/s	1GB/s	8GB/s
OS Boot	Yes	No	No	No	No	No
