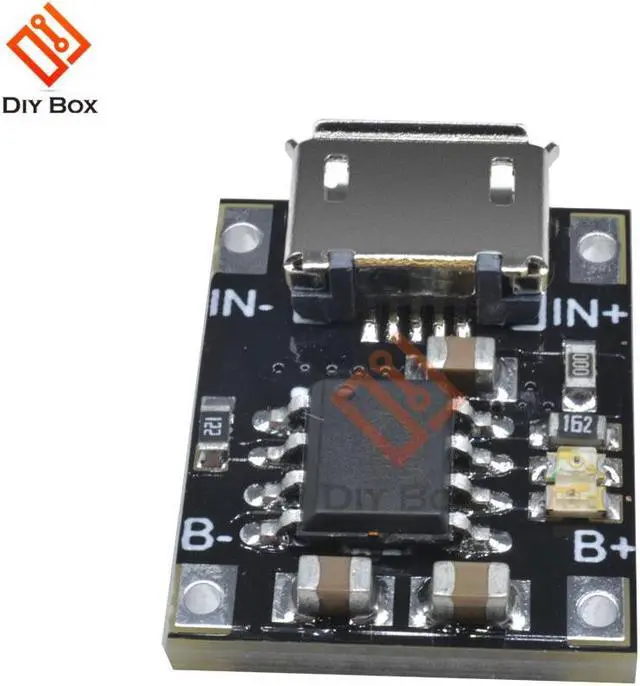

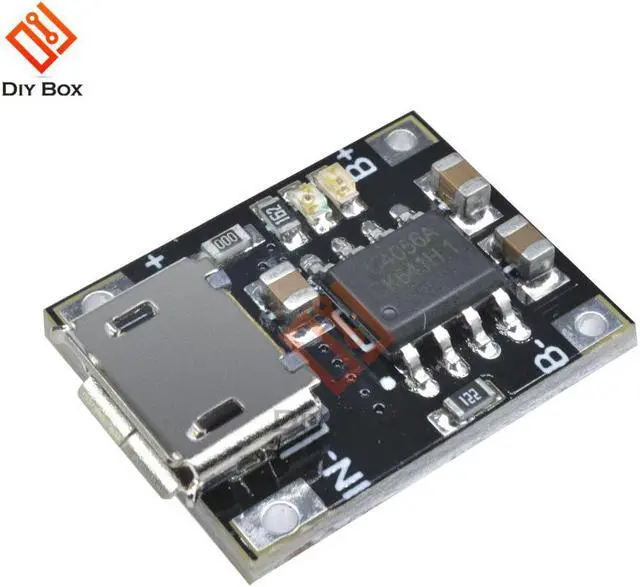

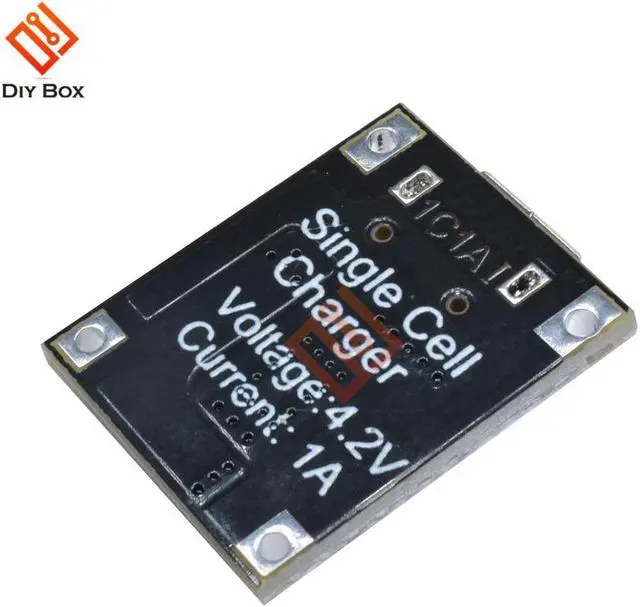

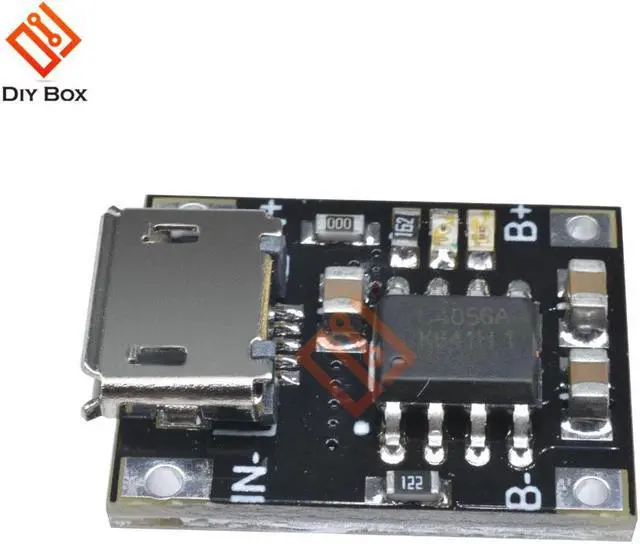

Single Cell Lithium Charging Charger Module 1A 5V-6V 4.2V TC4056 TC4056A Micro USB Power Supply Board TP4056
- Single Cell Lithium Charging Charger Module 1A 5V-6V 4.2V TC4056 TC4056A Micro USB Power Supply Board TP4056
+
+
Overview
Specs
Reviews
Accessory Type:Accessories
Origin:CN(Origin)
Model Number:TP4056
Certification:NONE
feature:With reverse connection protection
100% and
Charge module:Linear charging.
Current- 1A adjustable.
Charge precision:1.5%.
Input voltage: 4.5V-5.5V.
Full charge voltage:4.2V.
Led indicator: red is charging Green is full charged.
Input interface:micro USB.
Work temperature:10° to +85°.
Inversed polarity: NO.
Size- small to 25X19X10mm.
NOTE:
1. Ampere meter can only be connected to 5v input end of the module.
2. It is better that the charging current is 37% of the capacity. If you charge to the of 1000mAH, current of 400 is enough.
3. The connection wire should not be too thick.
4. Make sure the connect point is good.
5. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-substract the charging current to avoid burn damage to chip.
6. NO Reveral polarity.
Package Included:
1 Micro USB 1A 18650 Lithium Charging Board
Origin:CN(Origin)
Model Number:TP4056
Certification:NONE
feature:With reverse connection protection
100% and
Charge module:Linear charging.
Current- 1A adjustable.
Charge precision:1.5%.
Input voltage: 4.5V-5.5V.
Full charge voltage:4.2V.
Led indicator: red is charging Green is full charged.
Input interface:micro USB.
Work temperature:10° to +85°.
Inversed polarity: NO.
Size- small to 25X19X10mm.
NOTE:
1. Ampere meter can only be connected to 5v input end of the module.
2. It is better that the charging current is 37% of the capacity. If you charge to the of 1000mAH, current of 400 is enough.
3. The connection wire should not be too thick.
4. Make sure the connect point is good.
5. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-substract the charging current to avoid burn damage to chip.
6. NO Reveral polarity.
Package Included:
1 Micro USB 1A 18650 Lithium Charging Board
