Origin:CN(Origin)
Certification:NONE
Usage:Switching
Output voltage:Voltage Regulator
Connection:LM2596S Step Down Buck Converter
Output Type:Step Down Power Transformer
feature:Step Down Power Supply

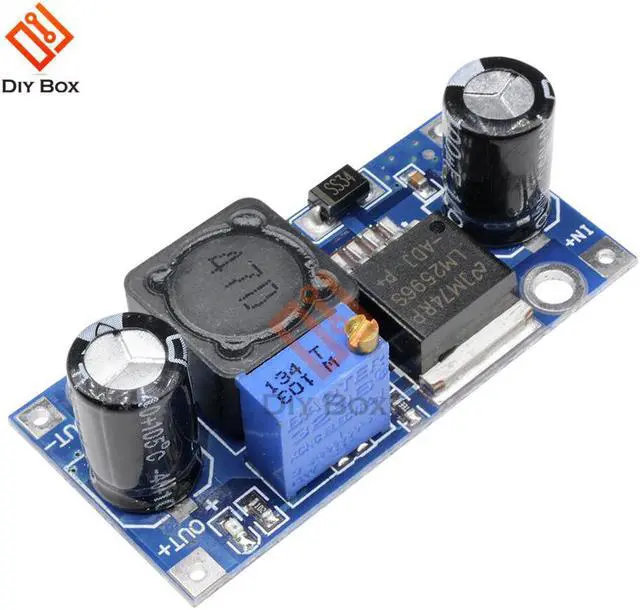

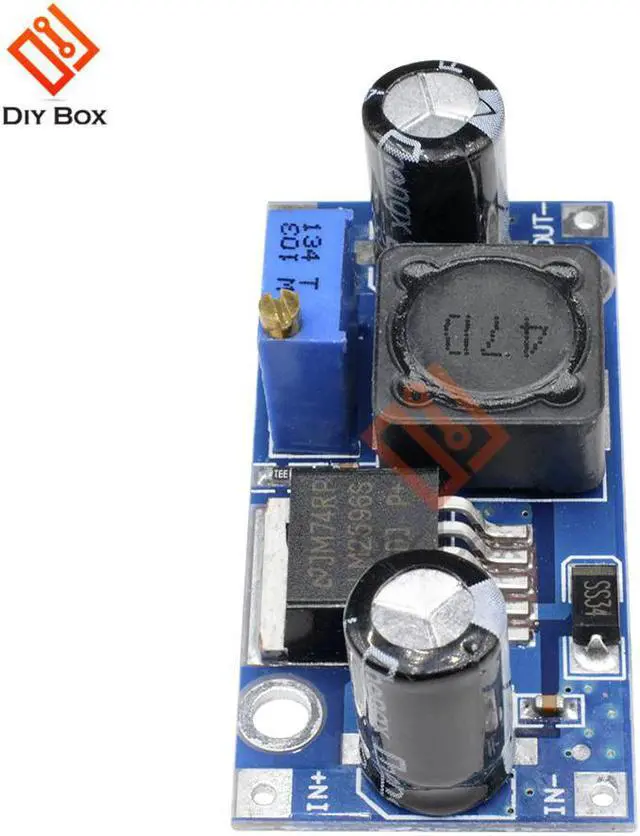

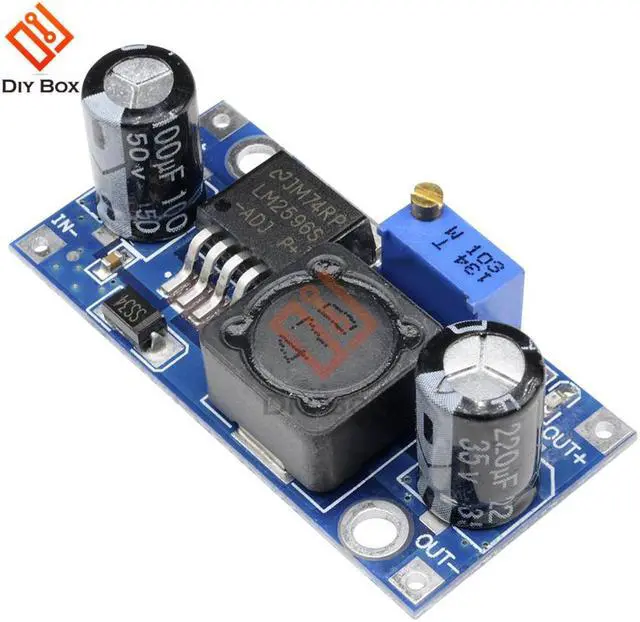

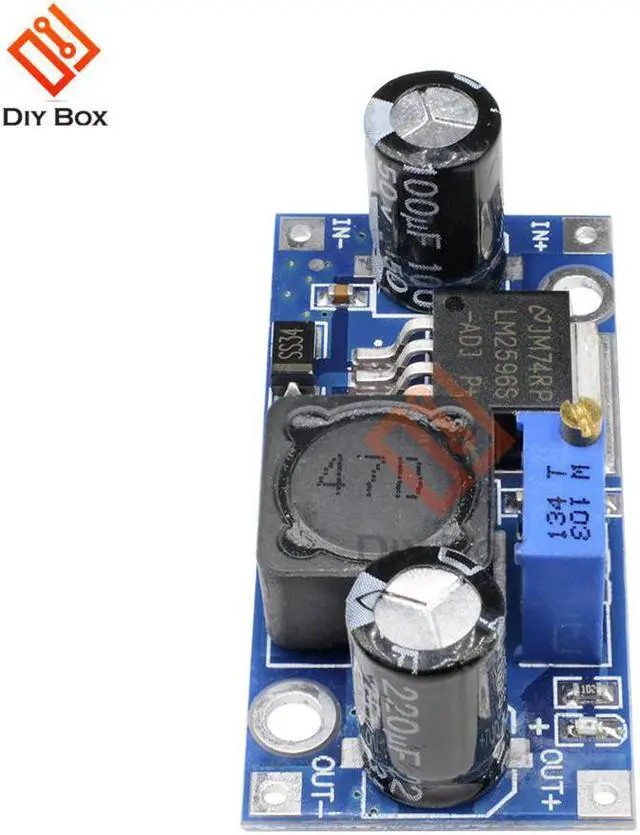

DC-DC Step Down Buck Converter Module LM2596 Power Supply Output 1.23V-30V DC Adjustable Voltage Regulator Governor Input voltage Volt 4V-35V Transformer
Description:
Input voltage: 4V-35V
Output voltage: 1.23V-30V
Input current: 3A(maximum)
DC-DC Buck Converter Step Down Module LM2596 Power Supply
Conversion efficiency: 92%(highest)
Switching frequency: 150KHz
Output ripple: 30mA9maxmum)
Full load temperature rise: 40
Load regulation: ± 0.5%
Voltage regulation: ± 2.5%
Input voltage:4-35V
Output voltage:1.23-30V(Adjustable)
Output current:Rated current is 2A,maximum 3A(Additional heatsink is required)
Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short circuit protection: current limiting, since the recovery
Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
Dimension:48x23x14mm(L*W*H)
Package:
1x DC-DC Buck Converter Step Down Module LM2596 Power Supply Output 1.23V-30V
