    DC CC Max 9A 300W Step Down Buck Converter 5-40V To 1.2-35V Power Supply Module For Arduino XL4016 LED Driver Low Output Ripple

    • DC CC Max 9A 300W Step Down Buck Converter 5-40V To 1.2-35V Power Supply Module For Arduino XL4016 LED Driver Low Output Ripple
    +
    +
    Overview
    Specs
    Reviews
    Origin:CN(Origin)
    Certification:NONE
    Usage:Switching
    Output voltage:1.2-35V
    Output Type:DC
    feature 1:DC/DC Converters
    feature 2:Transformer
    feature 3:5-40V To 1.2-35V
    Model Number:Step down Buck Module
    Type:Voltage converter

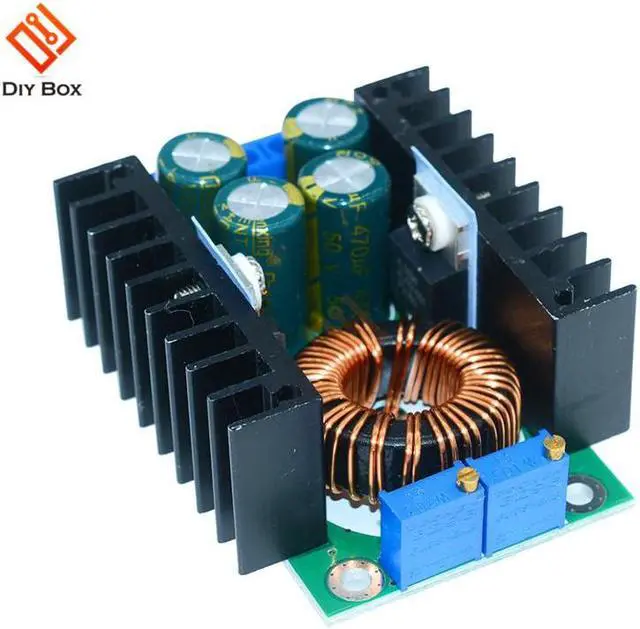

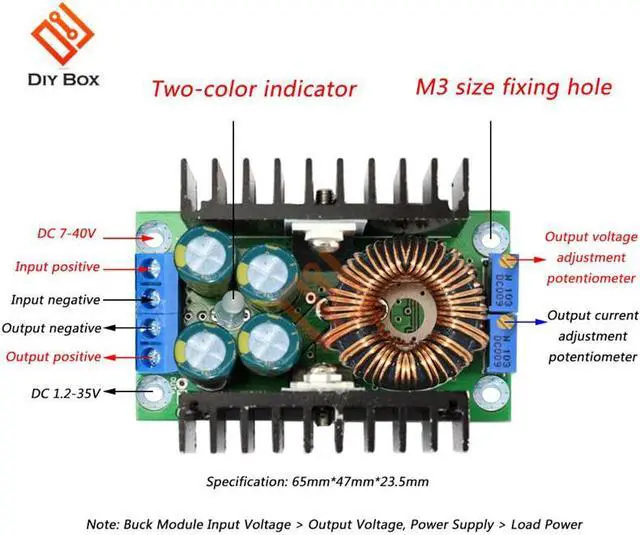

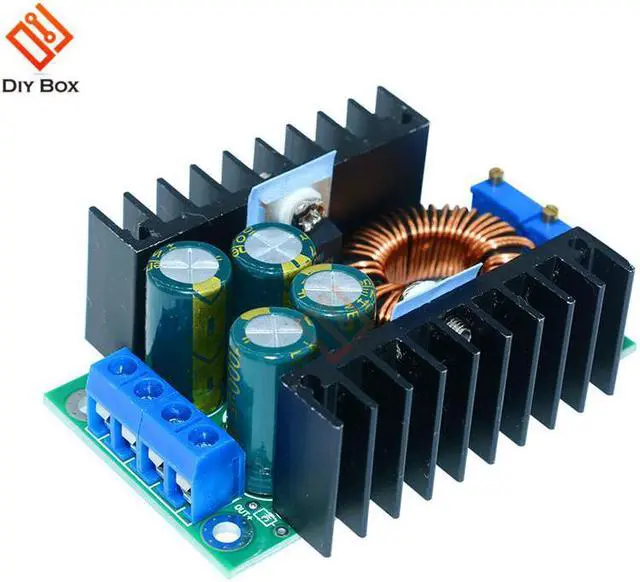

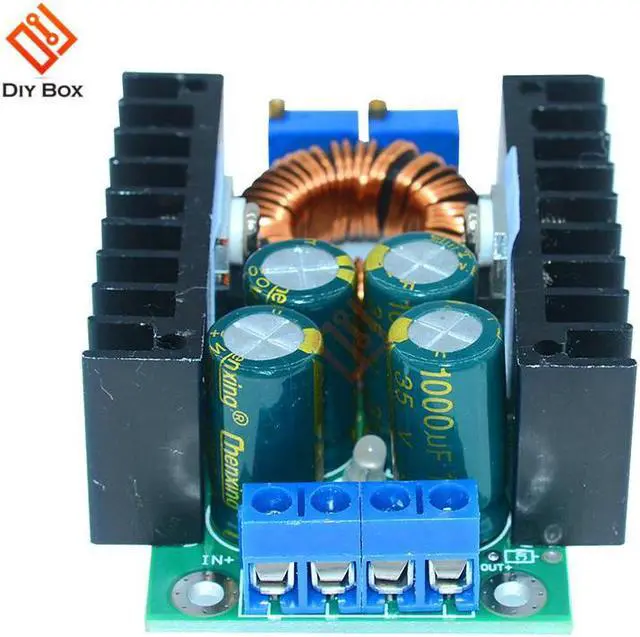

    XL4016 300W DC-DC Max 9A Step Down Module Buck Converter 5-40V To 1.2-35V Adjustable Power Supply Module LED Driver for Arduino Low Output Ripple Step Down Transformer
    Features:
    100% and
    Use a dedicated benchmark IC, and high-precision current sensing resistor, can make more stable constant current
    High output current, the max output current can reach 9A.
    Low output ripple , high frequency capacitor reduces output ripple.
    Suitable for LED driver.
    Specification:
    Material: PCB board and electronic component
    Color: as the pic shows
    Input voltage: 5-40V
    Output voltage: 1.2-35V (continuously adjustable)
    Output Current: 9A (power tube temperature exceeds 65°C please add cooling fan)
    Constant current range:0.2-9A ( adjustable )
    Output Power: Maximum power is about 300W (power tube temperature exceeds 65°C please add cooling fan)
    Size: Approx. 2.55*1.88*0.94inch / 6.5*4.8*2.4cm(Length*width*thickness)
    Package included:
    1 *
    DC CC 9A 300W Step Down Buck Converter 5-40V To 1.2-35V Power module
