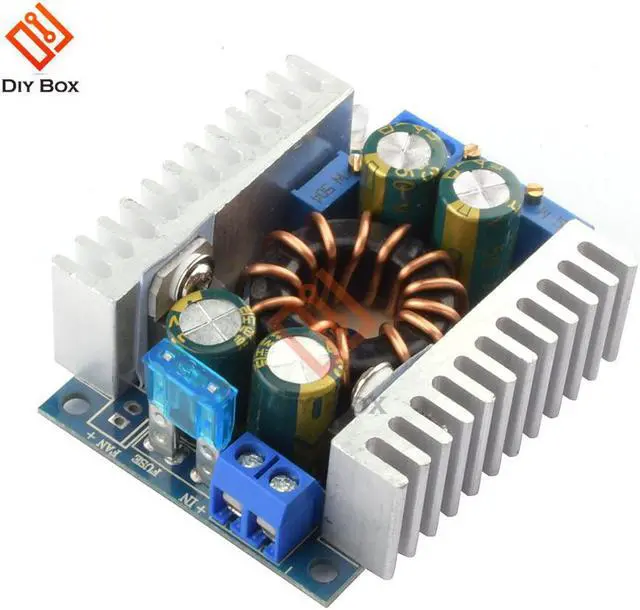

150W DC-DC Boost Converter Step Up Power Supply Module 10-32V Laptop Voltage Charge Board

Origin:CN(Origin)
Model Number:DC-DC 150W high power boost constant current module

Product selling point:
1: 150W boost constant voltage and constant current
2: Conversion efficiency: up to 95% (efficiency is related to input, output voltage, current, and differential pressure)
3: Easy to install and use
4: Wide application
5: Short circuit protection: yes (input 15A fuse)
Parameters:
Name: 150W boost constant current module
Properties: Non-isolated boost module (BOOST)
Input voltage: 10-32V input
Input current: 16A (MAX) more than 8A, please strengthen heat dissipation
Static working current: 15mA (when 12V rises to 20V, the higher the output voltage, the higher the static current will increase)
Output voltage: 10-46V continuously adjustable (default output 19V,)
Output current: 8A MAX, if it exceeds 4A, please strengthen heat dissipation (related to the input and output voltage difference, the larger the voltage difference, the smaller the output current)
Output constant current range: 0.3-8A
Turning light adjustment range: 0.3-8A
Output power: natural heat dissipation 90W, enhanced heat dissipation 150W
Working temperature: -40~+85 degrees (please strengthen the heat dissipation when the ambient temperature is too high)
Working frequency: 150KHz
Conversion efficiency: up to 95% (efficiency is related to input, output voltage, current, and voltage difference)
Short circuit protection: yes (input 15A fuse)
Input reverse connection protection: no, (if necessary, please connect a diode in series with the input)
Installation method: 4 3mm screws
Wiring method: The terminal is of welding output, and the shell is equipped with a welding output. (V-IN is input, V-OUT is output)
Module size: length 60mm width 50mm height 20mm
Application range:
1. DIY a regulated power supply, the input is 12V, and the output can be adjusted from 12-46V/60V.
2. Power supply for your electronic equipment, you can set the output value according to your system voltage.
3. As a car power supply, power supply for your notebook computer, PDA or various digital products. It can be equipped with a high-grade thickened frosted oxide aluminum alloy shell, which can directly PK off the ordinary vehicle power supply or inverter on the market. It is your best choice for those who like metal texture.
4. DIY a high-power notebook mobile power supply: equipped with a large-capacity 12V lithium pack, so that your notebook can be illuminated wherever you go
5. Solar panel voltage stabilization.
6. Charge batteries, lithium batteries, etc.
7. Drive high-power LED lights.
Instructions:

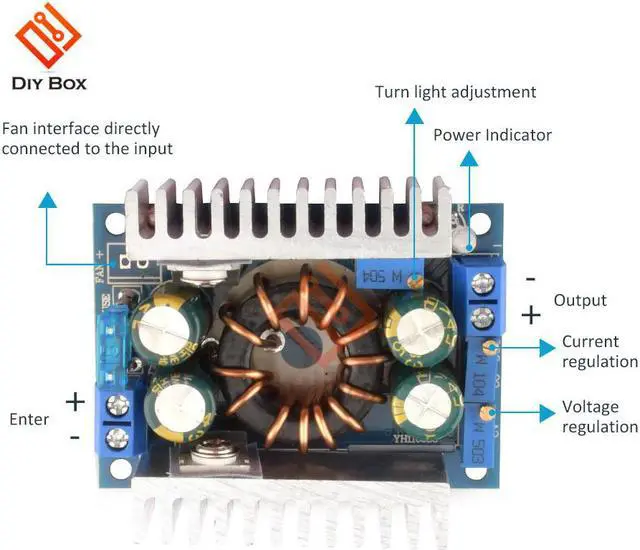

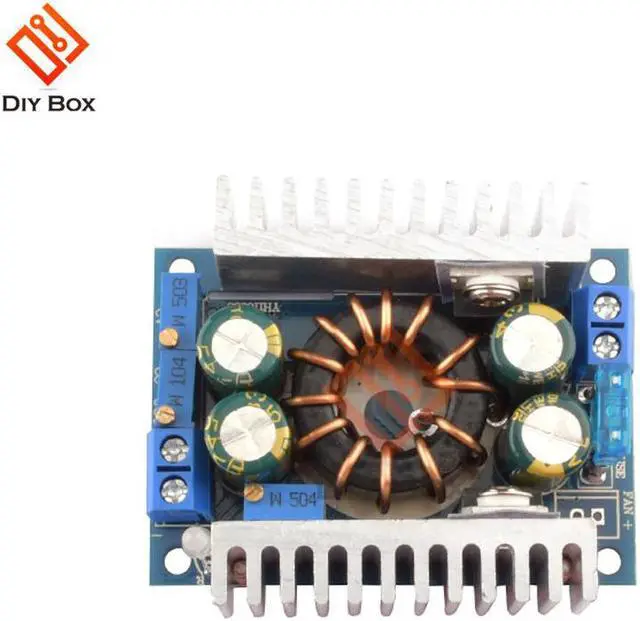

Output current adjustment method:
1. Adjust the CV potentiometer and set the output voltage to the voltage value you need according to your or LED. For example, the voltage of 10 strings of LEDs is adjusted to 37V, and the voltage of four strings of batteries is adjusted to 55V.
2. Set the CC potentiometer counterclockwise for about 30 turns, set the output current to the minimum, connect the LED, and adjust the CC potentiometer to the current you need. For charging, after the is fully discharged, connect to the output and adjust the CC to the current you need. The more the charging current is, the smaller the charging current will be.) Please do not adjust the current in a short-circuit manner, and the circuit structure of the booster module cannot be adjusted in a short-circuit manner.
Turning light current adjustment method:
(The turning light function is used to indicate whether the is fully charged. The red light is on when charging, and the green light is on when it is fully charged.) Connect a fully charged to the output, and turn the light potentiometer on when the red light is on. Can.
Package list:
1*Boost constant current module
