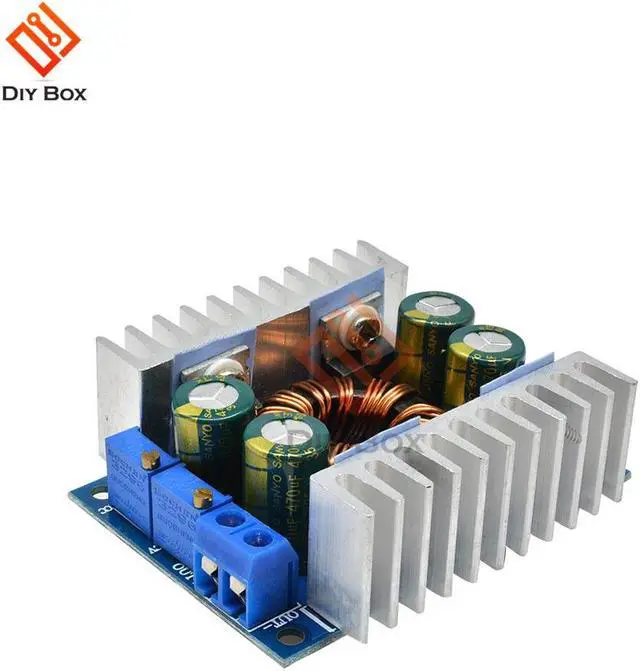

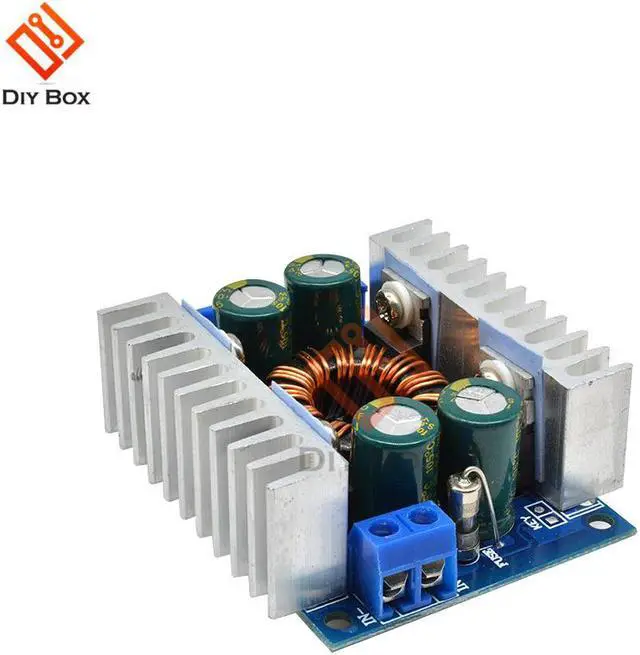

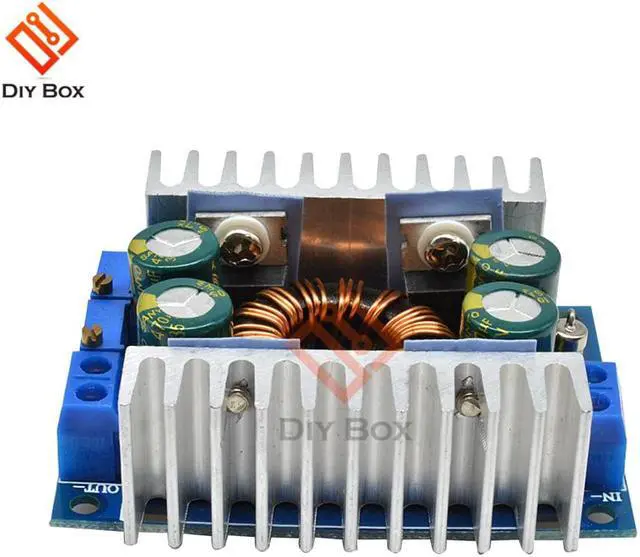

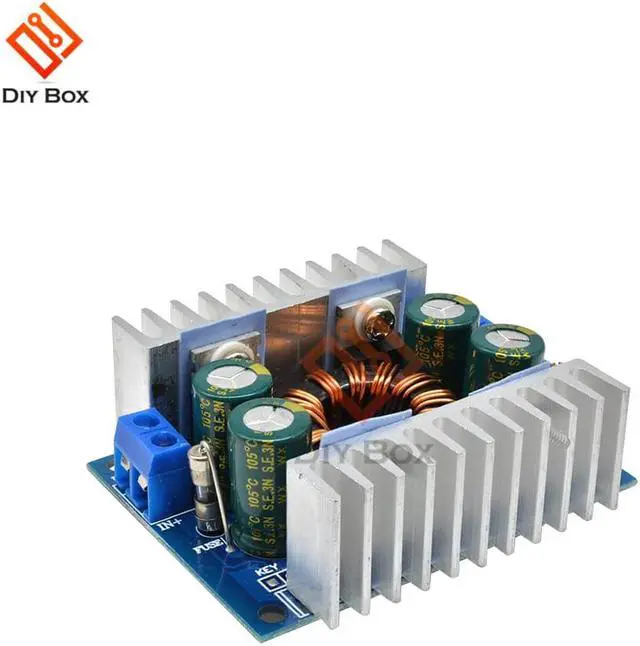

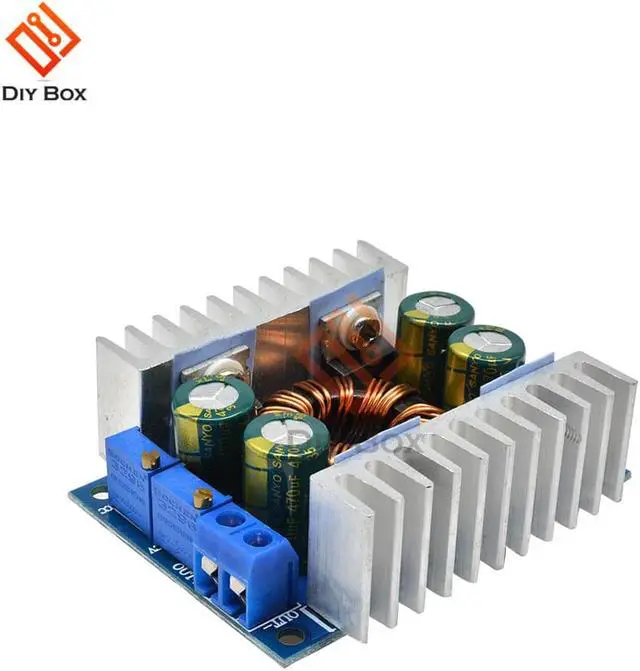

    DC-DC 8A Automatic Step Up Step Down Adjustable Power Supply Module Stable Version Integrated Circuits Modules Board 150KHz

    • DC-DC 8A Automatic Step Up Step Down Adjustable Power Supply Module Stable Version Integrated Circuits Modules Board 150KHz
    +
    +
    Overview
    Specs
    Reviews
    Origin:CN(Origin)
    model:DC-DC 8A Automatic Step Up Power Supply Module

    DC-DC 8A Automatic Step Up Step Down Adjustable Power Supply Module Stable Version Integrated Circuits Modules Board 150KHz
    Module parameters:
    Input voltage: DC5-30V
    Input current: 8A (MAX) for peak 10A (6A working for a long time)
    Quiescent current: 4mA (different operating voltage will cause errors)
    Output voltage: 1.25-30V continuously adjustable
    Output current: 10A (MAX) (long-term natural heating within 5A)
    Output current range: 0.2-10A
    Operating temperature: -40 to +85 degrees
    Working frequency: 150KHz
    Conversion efficiency: typical 91% (12V to 12V5A) maximum 93%
    Overcurrent protection: where
    Short circuit protection: (Limited protection)
    Over-temperature protection: (Automatically reduces output voltage after overheating)
    Input reverse polarity protection: None, (if necessary, please enter a diode in series)
    Output anti-backflow: Yes, no charging and blocking diode are required.
    Connection: terminal output, (IN is input, OUT output)
    Output current adjustment method:
    1. CV potentiometer adjustment, according to your load requirements, the output voltage is set to the voltage value you need.
    2, CC potentiometer is located about 30 turns counterclockwise (that is, the output current is set to the minimum), connected to the LED,
    Potentiometer CC is tuned to the required current. After charging the , the is completely discharged,
    Then output, adjust to the current CC you want,
    (Be sure to fully discharge the before allowing the transfer, because the has more power left and the charging current is smaller.)
    Please do not use the short-circuit current transmission method, the circuit structure of the module cannot be short-circuit transmission method
    Package Included:
    1 automatic boost step-down adjustable power module
