XL4016 DC-DC 5-36V 1.3-32V 8A 200W Step-Down Buck Converter PWM Digital Voltage Regulator Buck Step Down Power Supply Module
- XL4016 DC-DC 5-36V 1.3-32V 8A 200W Step-Down Buck Converter PWM Digital Voltage Regulator Buck Step Down Power Supply Module
+
+
Overview
Specs
Reviews
Certification:NONE
Origin:CN(Origin)
Model Number:XH-M403
Features:
Aluminum alloy black coating radiator. (Long-term use of the recommended current should not exceed 5 a.If you have more than 5 A, you need to use fan-assisted cooling)
Each piece comes from the brand, quality is guaranteed.
Great inductance of copper core. Inductive coil action in finite AC current. It can be composed of high or low pass filter with resistance or capacitor. Phase change circuit and electrical resonance. You can connect DC and AC resistance.
Double layer high density fiberglass circuit board for a military grade of 1.6mm. The circuit board is not only thick, but also high density. And after a long period of use, there will be no phenomenon of edge delamination bulging.
Description:

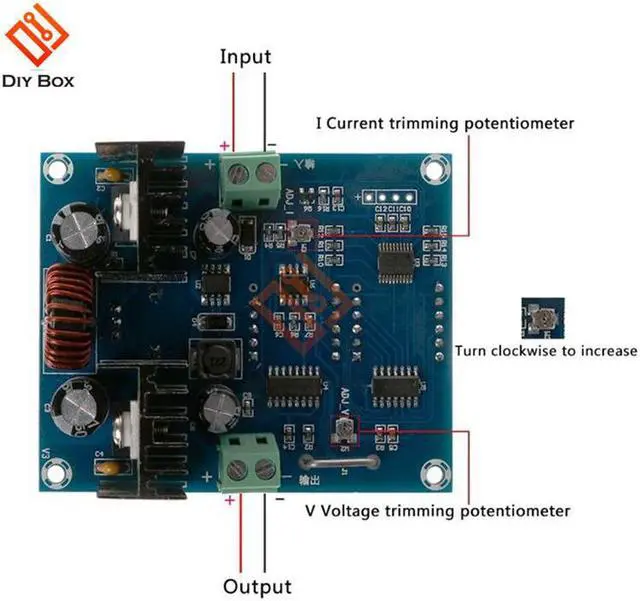

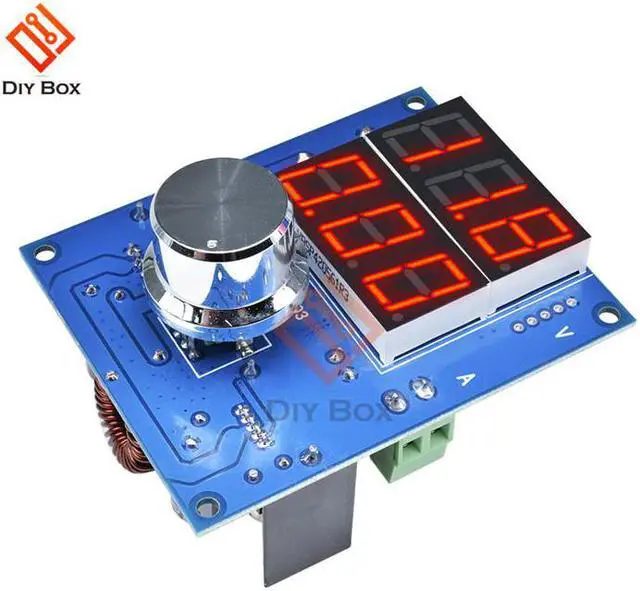

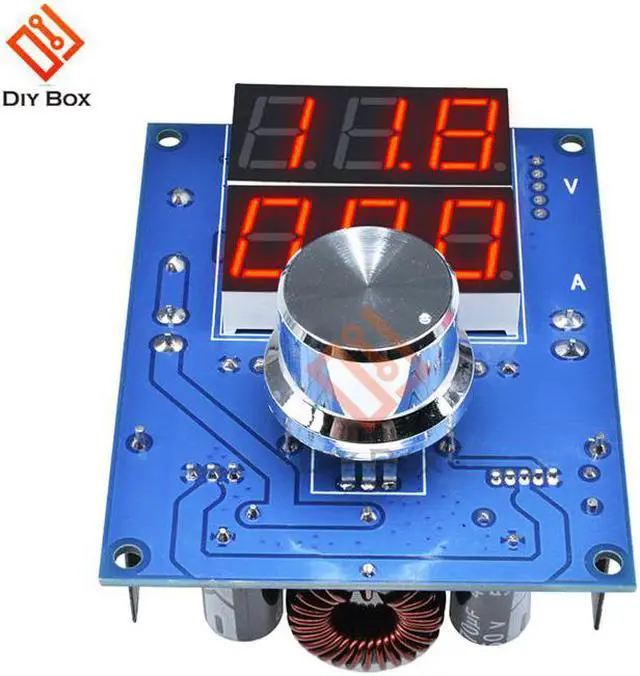

This is the Digital DC Step Down module integrated in the XL4016 Chip with high power,Real-time output voltage display without detection. It is practical and safe. The accuracy of the low voltage screen 0.1 v.
Specifications:
Voltage regulation method; PWM modulation
Input voltage: DC5-36V
Output voltage: DC1.3-32V
Maximum current: 8A (5A recommended for a long time)
Maximum power: 200W
Conversion efficiency: 94%
Switching frequency: 180KHz
Appearance size: 78*63*40mm
Other features: real-time current display
Package included:
1x Digital DC Board Controller
Origin:CN(Origin)
Model Number:XH-M403
Features:
Aluminum alloy black coating radiator. (Long-term use of the recommended current should not exceed 5 a.If you have more than 5 A, you need to use fan-assisted cooling)
Each piece comes from the brand, quality is guaranteed.
Great inductance of copper core. Inductive coil action in finite AC current. It can be composed of high or low pass filter with resistance or capacitor. Phase change circuit and electrical resonance. You can connect DC and AC resistance.
Double layer high density fiberglass circuit board for a military grade of 1.6mm. The circuit board is not only thick, but also high density. And after a long period of use, there will be no phenomenon of edge delamination bulging.
Description:
This is the Digital DC Step Down module integrated in the XL4016 Chip with high power,Real-time output voltage display without detection. It is practical and safe. The accuracy of the low voltage screen 0.1 v.
Specifications:
Voltage regulation method; PWM modulation
Input voltage: DC5-36V
Output voltage: DC1.3-32V
Maximum current: 8A (5A recommended for a long time)
Maximum power: 200W
Conversion efficiency: 94%
Switching frequency: 180KHz
Appearance size: 78*63*40mm
Other features: real-time current display
Package included:
1x Digital DC Board Controller
