VGA Converter AV S-Video VGA to VGA Adapter HD 1080P Converter for PC Notebook HDTV

Description:

AV To VGA converter is a video converter designed for security, medical, and home users. It can convert video signals into VGA signals of various resolutions using advanced digital image processing technology, ranging from 800x600 to 1920x1200. VGA resolution output to achieve the point-to-point display effect of the display, so as to display the perfect picture. Can be widely used in teaching, community monitoring, mine monitoring and other fields.

Note:

Before you purchase it, please check if your device is a CVBS analog camera. This adapter CAN NOT fit the digital camera or AHD/TVI/CVI camera.

Features:

VGA/ S-video/ to VGA: Convert VGA, 4 pin S-video or Composite Signal to VGA Signal.

Clear Image: Supported VGA output resolution: 800 x 600@60HZ, 800 X 600@75HZ, 1024 x 768@60/75HZ, 1280 x 1024@60/75HZ,1680 x1050@60/75HZ, 1920 x 1080@60/75HZ, 1920 x 1200@60/75HZ.

Multifunction: PAL/ NTSC Auto Detecting, Image-freezing Function, OSD (On-Screen-Display) Function, Auto-save Settings and Working Status When Power off. Single Button for Easy Switch. With PIP Function, Users Can Zoom in, Zoom out or Move Pictures

Plug and Play: Easy to Install within Seconds, Plug and Play. Powered by DC 5V/1A Adapter (NOT Included). Including AV Video Cable, VGA Male to Male Cable, USB Power Cable, 4-Pin S-video Male to Male Cable for convenient use.

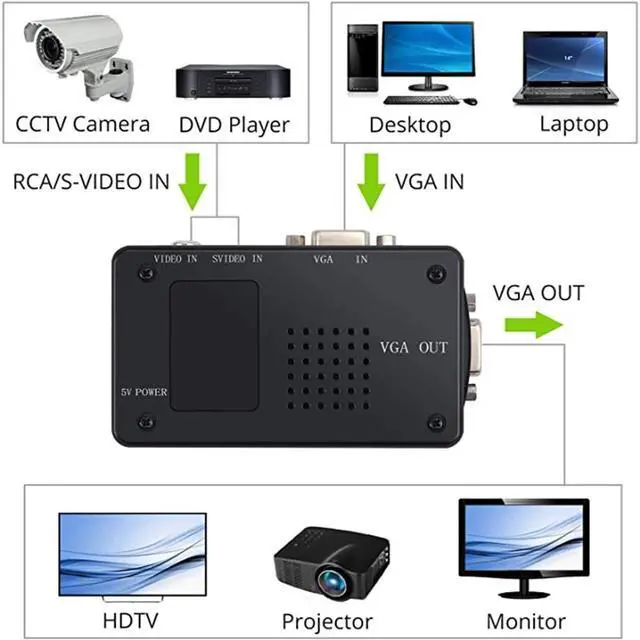

Wide Application: Enable DVD, DVR,CCTV, STB, PC Host, etc to Be Displayed on PC Monitors, VGA Monitors, TV or LCD.

Convert VGA/ 4 pin S-video/ to VGA;

Enable DVD, DVR PC host, etc to be displayed on PC monitor or LCD.

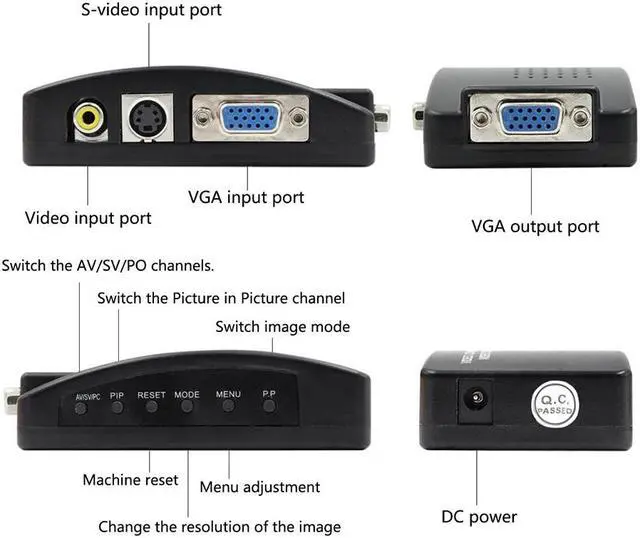

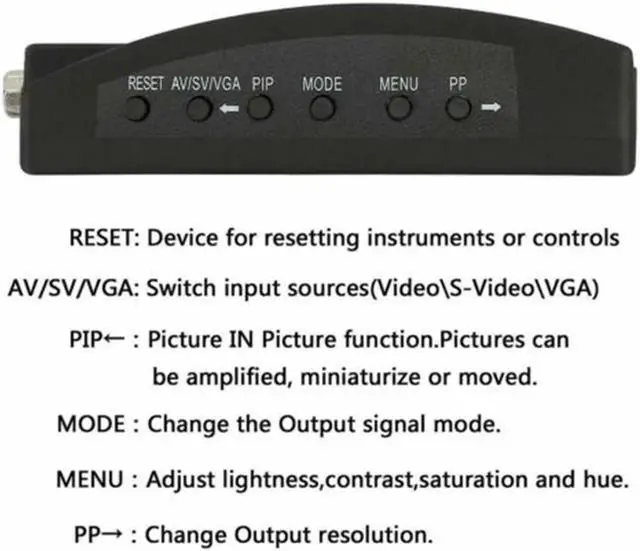

RESET", "MENU", "AV/SV/VGA", "PIP", "MODE", "PP" function button.

RESET": reset the resolution;
