4 Ports HDMI KVM Switch 4 IN 1 Out HDMI Switcher Splitter for Sharing Monitor Keyboard Mouse Adaptive EDID/HDCP Decryption

4 Ports HDMI KVM Switch 4 IN 1 Out 4K@30Hz HDMI Switcher Splitter HDMI 1.4 for Sharing Monitor Keyboard Mouse Adaptive EDID/HDCP Decryption



Descriptions:

This HDMI KVM switcher allows you to control 4 host devices, such as computers, PS4, PS3, Xbox one, TV box.It can achieve 4 groups of high-definition video source and USB interface switch freely, , can adapt to a variety of complex application environments.The equipment has excellent image processing and transmission capacity,make the output signal more smooth and steady.It is a reliable,high performance and efficient way of HDMI USB switch.And it can switch freely by button or extendsion ch cable switch.Suitable for office,computer romm,monitoring host,etc.



Specifications:

Only using 1 set of mouse and keyboard to control four devices, which is saving space, costs and increasing PC management efficiency.

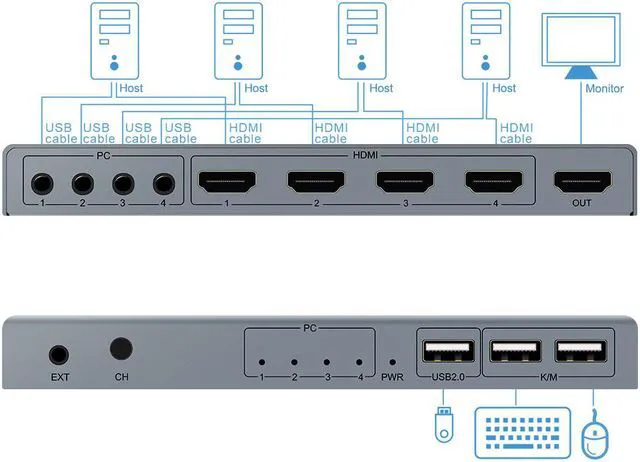

Support 4 routes of high-definition video source and USB interface implementation switch freely.

4 In 1 out HDMI KVM switcher is compatible with HDMI 1.4 and HDCP 1.4, supports resolution up to 4K@30Hz. With this HDMI switcher, you can enjoy the most luxurious video and audio.

HDMI 4 ports KVM switcher adaptive EDID/HDCP decryption,can adapt to a variety of complex application environment.

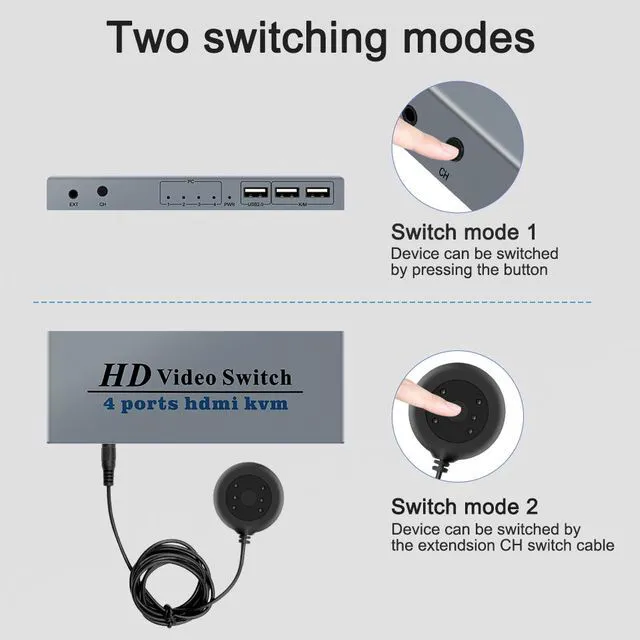

It can be switched by device button and extendsion ch cable,which is convenient and quick.

HDCP 1.4 standard-High-bandwidth digital content protection technology.

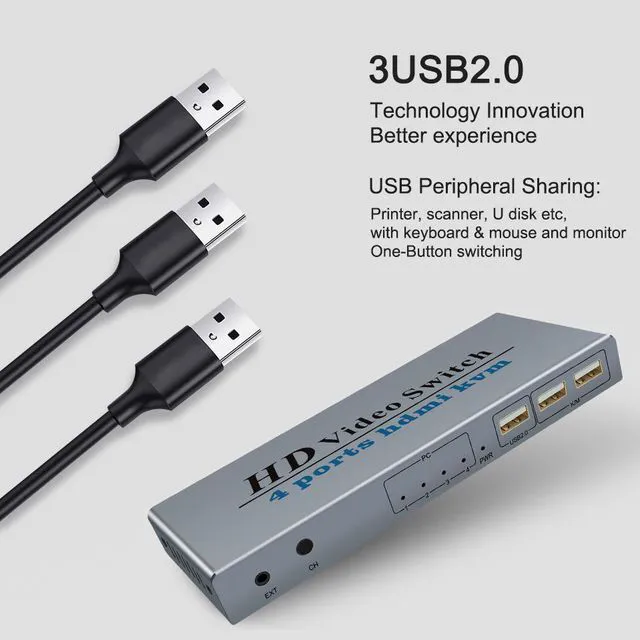

High compatibility,can auto-match source and display device.USB devices that can be connected such as: USB mouse, keyboard, printer, camera, etc.

Supports Windows10 / 8.1 / 8 / 7 / XP / Vista, Mac OS, Linux, Chrome OS.

Built-in automatic adjustment system,which makes the image smooth,clear and stable.

Built-in ESD protection system.

Easy to install,plug and play.



Remarks:

1)Must connect the pc port to supply power

2)keyboard hotkeys control is not supported

Product name:4 in 1 out KVM switch

Support protocol:Standard HDMI1. 4 HDCP 1.2

Input interface:HDMI

Output interface:HDMI

PC input interface:Dedicated custom interface USB-A:USB-A(can beconnected to keyboard,mouse,printer)

CH4 button:Switch CH4 channel

Support resolution:4K @ 30Hz(3840x2160) backward compatible

Interface protocol:USB1.1 USB2.0

Transmission distance: Input 10 meters,output 10 meters

Maximum data rate:10.2Gbps

Maximum pixel clock pixel clock:225 MHz(Maximum-- -225 MHz)

Impedance:10.2Gbps

Power consumption:3W

Temperature:-5"C-70"C

Product material:lron shell

Interface material:Gold-plated

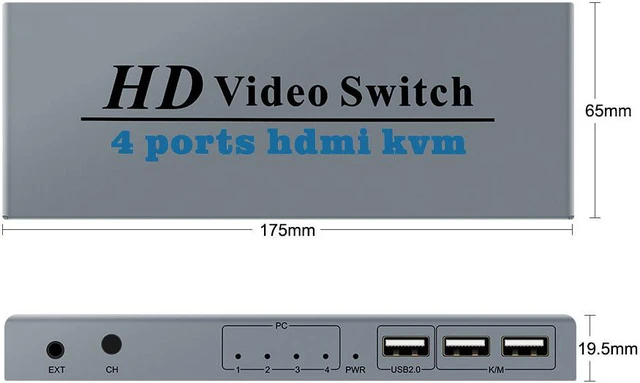

Product size:1 75x65x19 5mm
