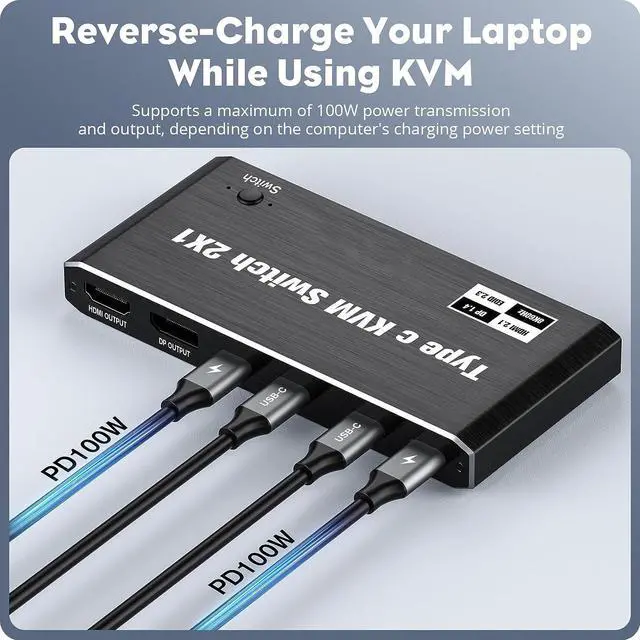

The Thunderbolt KVM Switch Max supports 3xUSB Devices,share two PCs Laptop with one Monitor:This USB C KVM 8K Switcher,with 2 xUSB-C PC Input Ports,4x USB Output Ports,1 HDMI Output ports and 1 DP Output ports (purchased single monitor by yourself)
| Input Port | 2 x USB Type C Female Port for USB-C PC Input,2xUSB Type-C Female for 100W Power Delivery |
|---|---|
| Output Port | 1 x DP Female Port,1x HDMI Female Port,4 x USB 2.0 A Female Port, 1x3.5mm Jack |
| Bandwidth | DP 1.4: 32.4Gbps / HDMI 2.1: 48Gbps / USB 2.0: 480Mbps |
| Resolution | HDMI/DP:1080P@60Hz/120Hz/165Hz, 4K@60/120Hz/144Hz(DSC), 8K@30Hz, 8K@60Hz |
| DP Deep Color | 8bit / 10bit / 12bit |
| Chassis | Aluminium alloy Shell |
| Dimension | 122mm(L)x48mm(W)x19.3mm(H) |
| Cable Length | 2M Max(Standard 8K DP/HD-MI cable) |
| Extra Power | Required,via a USB A to USB-C Cable to your USB Devices or Power Adapter |

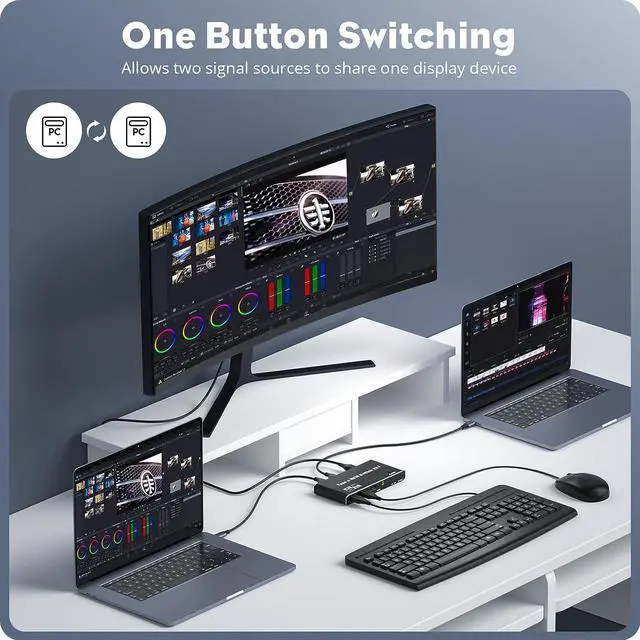

You can control your two PCs with one USB Mouse or Keyboard ,and making your usb disks to be read in both your two pcs via connecting USB Mouse,Keyboard/Disks in the USB-C KVM Switcher,Press"Switch" button in the switcher to switch between your two PCs
USB C KVM Switch resolution supports up to 1080P@120/165Hz,2K@60/120/144Hz,
4K@60/120/144(DSC),8K@30/60Hz, backward compatible.
- The USB C port of the laptop is Gen 2, and the DP output is limited to 4K/60Hz.
- The USB C port of the laptop is Thunderbolt 3, and the DP output is limited to 4K/60Hz.
- The USB C port of the laptop is Thunderbolt 4, and the DP output can achieve 4K/144Hz and 8K.
- Support for mobile device extensions.
- Support for Nintendo gaming consoles.

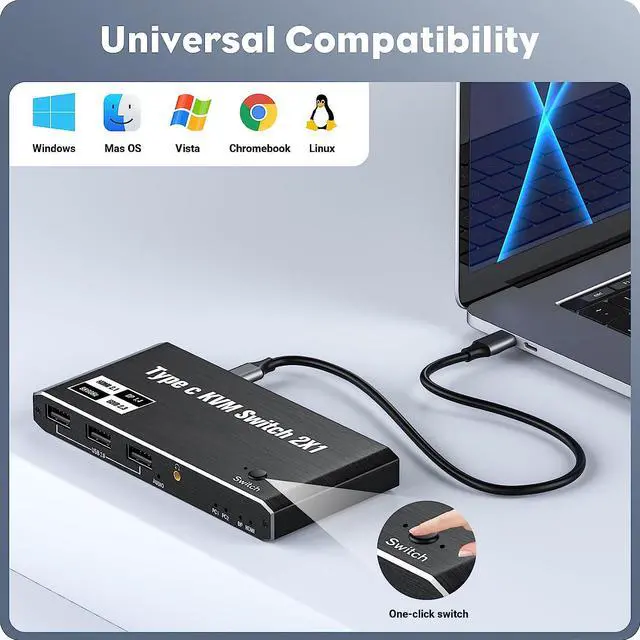

Plug and play. No drivers needed for Windows 11/10/8/7/Vista/XP and Mac OS X 10.9 or later. Fully compatible with Thunderbolt 3 and Thunderbolt 4.
PC/Laptop/Mac: please make sure your computer has at least one USB Type C port support Full Type-C Function (support Data&Video&PD) before buying this USB C KVM switch selector.

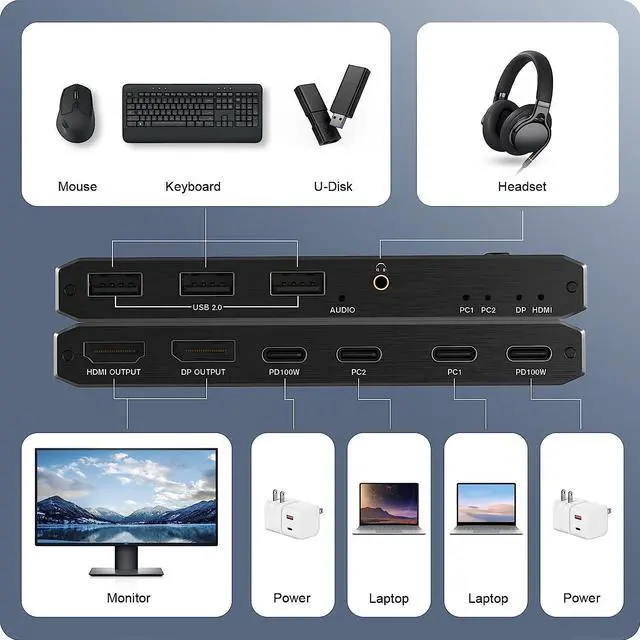

Connect the power adapter:
Using a USB cable (included as an accessory), connect the Type-C end to the product, and connect the Type-A end to the power adapter.
Connect the display device:
Using a DP/HDMI cable (to be purchased separately), connect one end to the product, and connect the other end to the DisplayPort or HDMI port of the display device.
Connect the USB printer:
Using a USB cable (to be purchased separately), connect the Type-B end to the printer, and connect the Type-A end to the product.
Connect PC1 (laptop) USB Port:
Using a USB cable (included as an accessory), connect the Type-C end to the product, and connect the other end to the USB port of PC1.
Connect the USB keyboard:
Connect the USB cable of the keyboard to the product.
Connect the USB mouse:
Connect the USB cable of the mouse to the product.
Connect PC2 (laptop) USB Port:
Using a USB cable (included as an accessory), connect the Type-C end to the product, and connect the other end to the USB port of PC2.

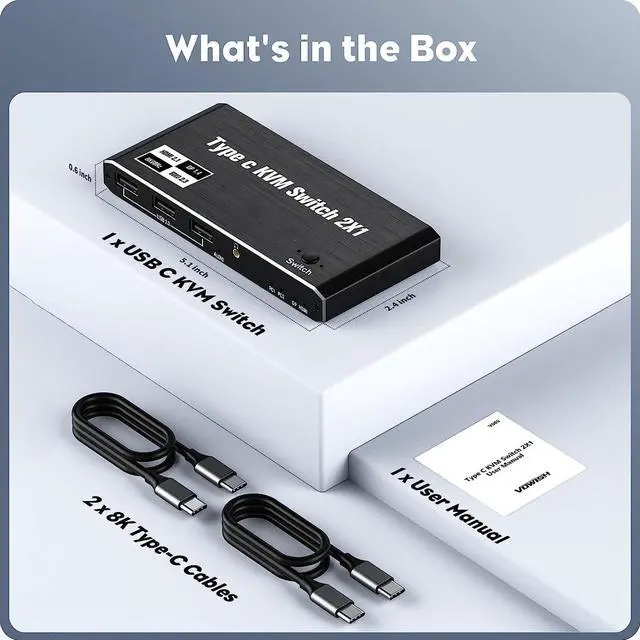

- 1 x USB C Thunderbolt 4 KVM Switch
- 1 x USB Power Cable (Type A to Type C)
- 2 x 1.2 meter USB Gen 2 Cable (Type C to Type C)
- 1 x User Manual
