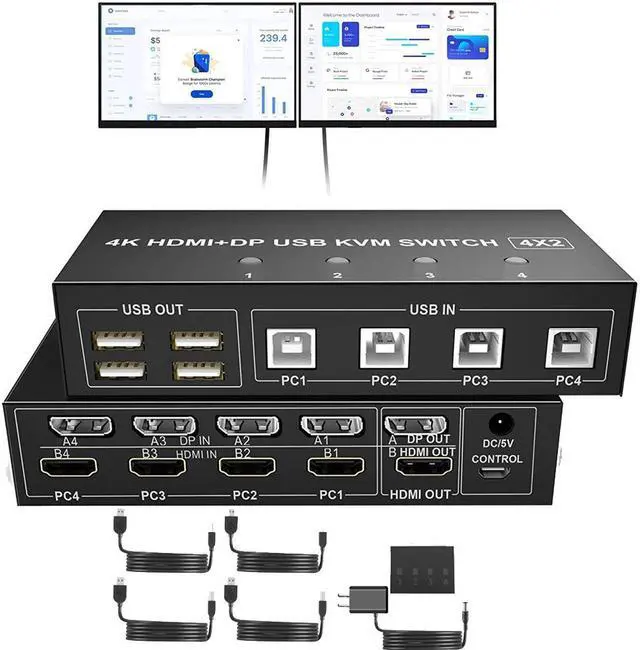

4 Port KVM Switch Dual Monitor HDMI + DisplayPort
Controls up to 4 computers or laptops with Dual HDMI and DisplayPort (DP) graphic outputs to share 1 set of keyboard, mouse and 2 monitors for extended or mirrored display. ( For dual monitor setups, it requires every computer support 2 screen or above display functions and must support extended display).

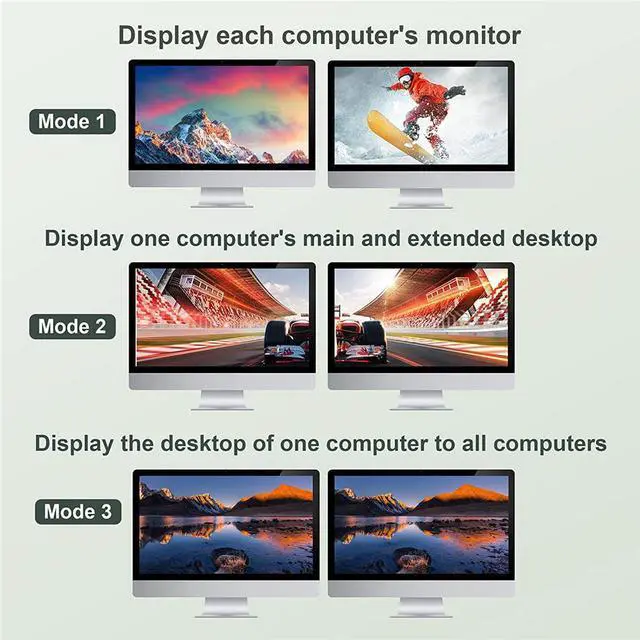

Dual Monitor HDMI + DisplayPort KVM Switch 3 Modes
The Dual Monitor KVM Switch HDMI + DisplayPort 4 Port with 3 display modes. Mode 1: Two monitors splicing to display the picture of one host; Mode 2: Two monitors show the main screen and extended of one host; Mode 3: Two monitors respectively show the desktops of two host. (NOTE: The 3 Modes Need to Be Manually Set in the System Display Settings)
Dual Monitor KVM Support HDMI2.0 and DP1.2 Protocol
Supports high resolution up to 3840*2160@60Hz and downwards, with built-in auto EDID. (Tips : Only when both your computer Graphics card and monitor support 4K@60Hz then you can get 4K@60Hz effect.)

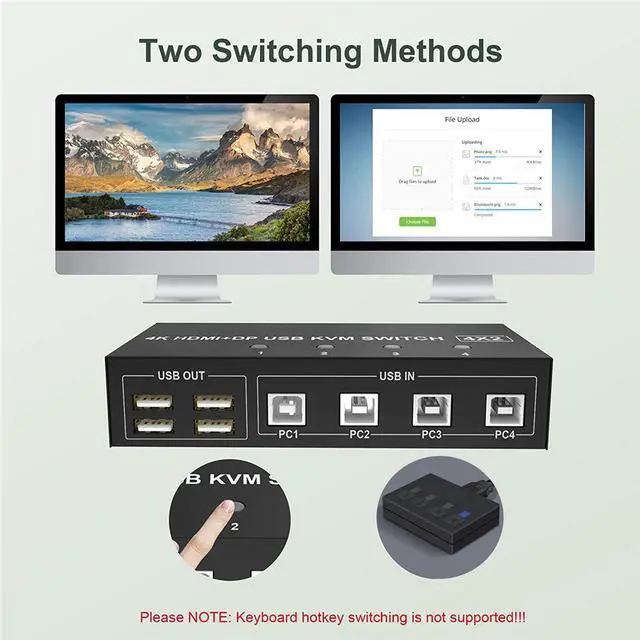

KVM Switch with Two Switching Methods
Easily switch between home desktop, work laptop or gaming machines via front button and wired remote to meet various needs. Cross support major operation systems like Windows, Linux, Mac and More; With 4 Extra USB 2.0 HUB ports to share more USB devices between computers.
This Dual Monitor HDMI + DisplayPort KVM Switch 4 Port help you control 4 PCs share 2 monitors (Extend display mode or copy display mode) by only one set of USB keyboard & mouse.
Features
Support extended or duplicated display depending on computer setting.
Support max up resolution 4K@60Hz, downward compatible
Support controller or buttons switch
USB devices that can be connected, such as: USB mouse, keyboard, U disk, printer, camera, etc.
Built-in automatic equalization system, picture position, clear and stable
Built-in ESD electrostatic protection circuit, all-round protection system safety

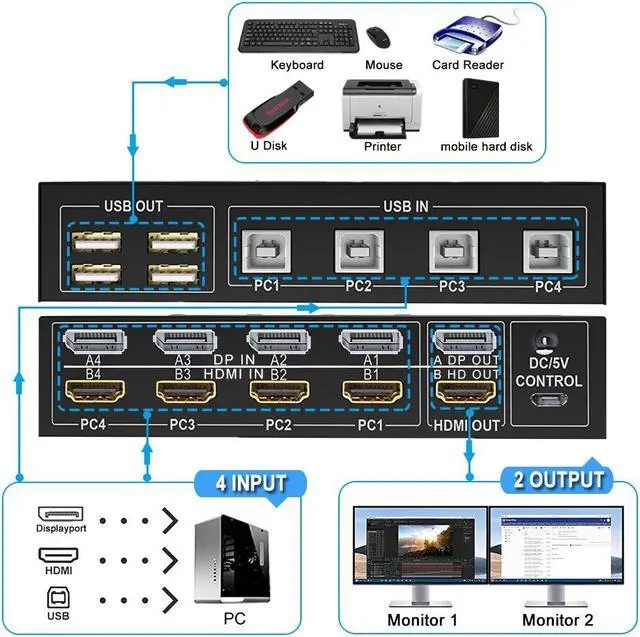

1. Turn off all devices and unplug all the cables;
2. Plug HDMI /DisplayPort cables and USB cables into KVM switch and your computers/laptops ( HDMI / DisplayPort cables not included)
Note:
Please check the DP IN A1 & A2 & A3 & A4, HDMI IN B1 & B2 & B3 & B4 and USB IN1 & IN2 & IN3 & IN4 is corresponding, DP OUT A, HDMI OUT B is corresponding, NOT support mixed insertion.
DP IN A1 + HDMI IN B1 + USB IN1=PC1
DP IN A2 + HDMI IN B2 + USB IN2=PC2
DP IN A3 + HDMI IN B3 + USB IN3=PC3
DP IN A4 + HDMI IN B4 + USB IN4=PC4
3. Plug mouse and keyboard into KVM switch;
4. Plug HDMI / DisplayPort cables and USB cables into KVM switch and monitors;
5. Plug power supply into KVM switch;
6. Boot PCs/laptops.
Push Button of KVM switch itself
Wired Remote
