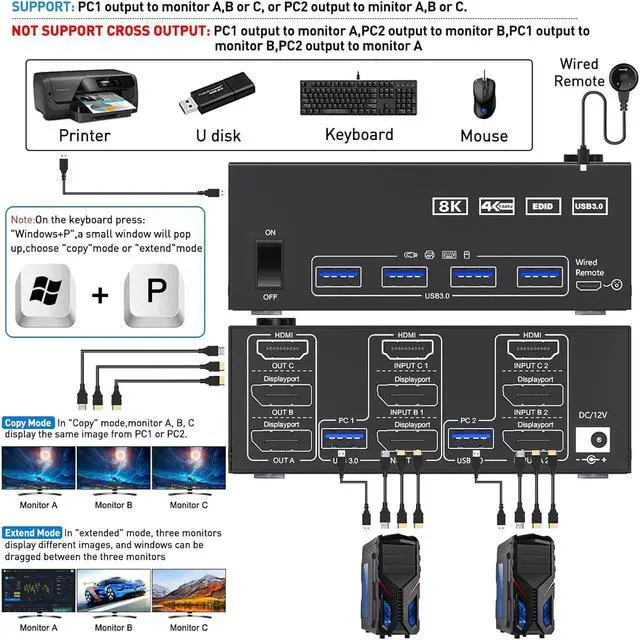

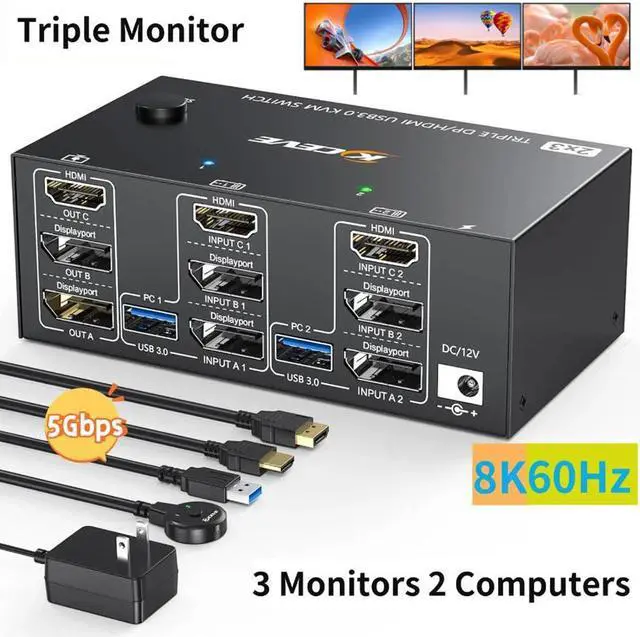

2 Displayport1.4 + 1 HD-MI 2.1 USB3.0 KVM Switch allows 2 desktop computers/laptops to share 3 monitors and 4 USB 3.0 ports(keyboard,mouse and other USB devices).It can make your work space tidy and efficient, also a premium choice for working from home.
NOTE:
Only when your computer supports 3 display or multi display, you can use this KVM to achieve 2 PC to share 3 monitors.
The resolution and fresh rate of triple monitor KVM switch supports up to 8K@60Hz/4K@144Hz.

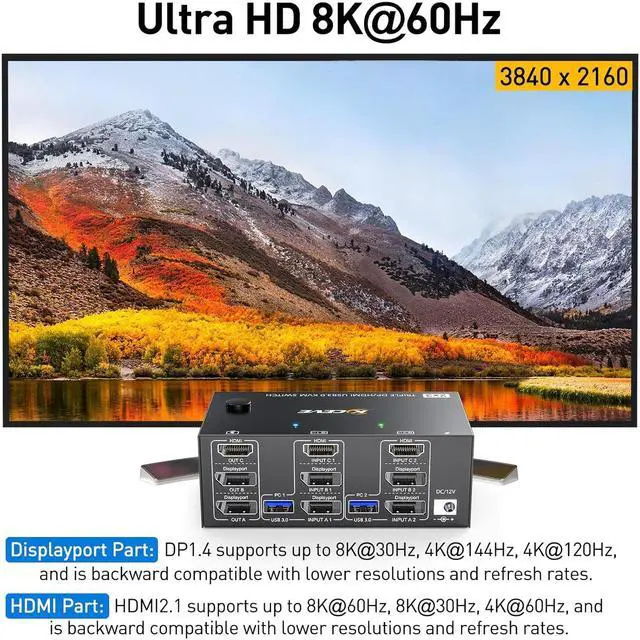

BUT PLEASE NOTE THAT : HD-MI part supports 8K@60Hz, 4K@60Hz,and backward compatible.Displayport part support 8K@30Hz ,4K@144Hz and backward compatible.
Warming: Please use HD-MI2.1 and D-P1.4 cables, if the set distance allows,the length of cabels more short more better.
2 Mode for Triple KVM Switch(2 DP1.4+HDMI2.1)
Press "Window+P" simultaneously on the keyboard to select mode.

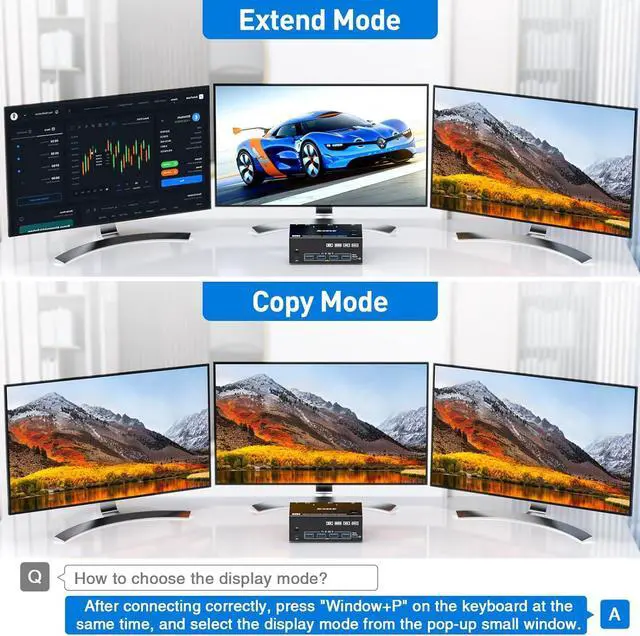

In copy mode, the images on the three monitors are the same
- Press "Window+P" simultaneously on the keyboard to select mode.
- In extended mode, the three monitors display different images, and the working window can be dragged between the three monitors.

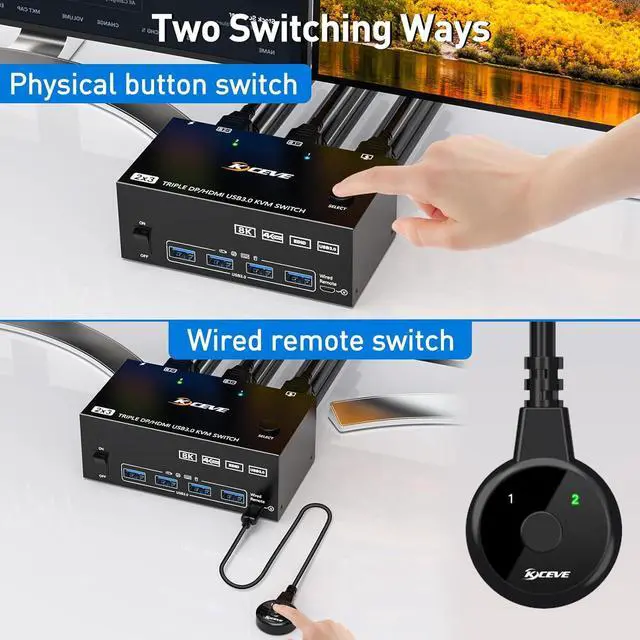

Two switching methods: control panel button + 4.92ft wired controller (included)
Two color indicator lights: Let you clearly know which computer you are currently switching to
The signal can be re-identified after powering off for 5 seconds and then turned on again. No need to unplug or plug in.
A 12V power adapter is included in the package, which solves the problem of insufficient power supply.
Indicator lights can clearly show which computer you are currently switching to.

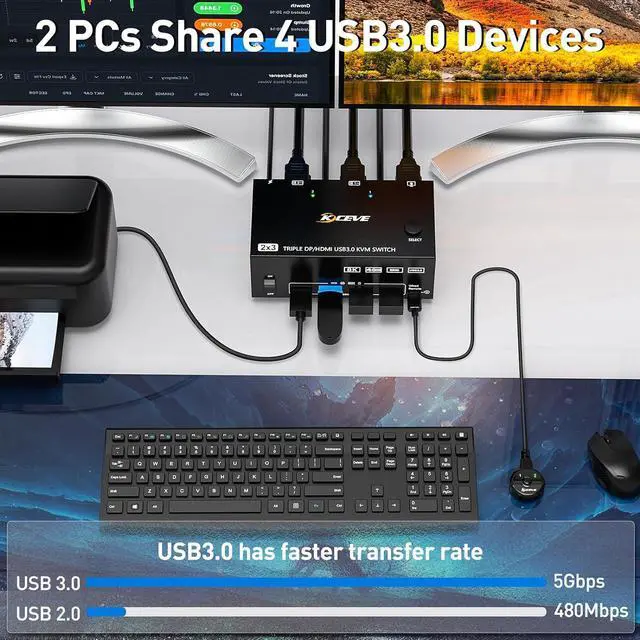

USB 3.0 is compatible with USB 3.0, and the data transmission speed can reach 5Gbps, while the data transmission speed of USB 2.0 is only 480Mbps
Specifications:
HDMI-compatible version: 2.1
DP version: 1.4
USB type: USB 3.0
Working power supply: 5V-12V
Maximum data rate: 5Gbps
Connector: HDMI-compatible-A/standard DP interface
HDMI-compatible cable range: < 1.5M (resolution: 8K@60Hz /30Hz)
DP cable range: <1.5M (resolution: 3840)* 2160@144Hz)
HDMI-compatible resolution: up to 8K@60Hz /30Hz; 4K@60Hz ; 1080p@60Hz
DP resolution: up to 8K@60Hz /30Hz 4K@144Hz /120Hz/60Hz; 1440P@144Hz /120Hz/60Hz; 1080P@240Hz /165Hz/144Hz/120Hz/60Hz (depending on the system and connected hardware)
Product size: 12 * 6.6 * 4.4cm
Product material: aluminum alloy
