Product Features

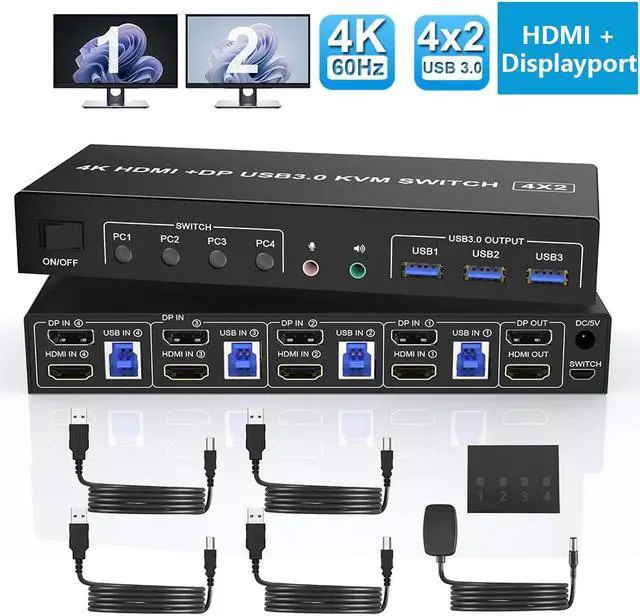

1. 4 computers share one set of keyboard, mouse, 2 monitors, and more USB 3.0 peripherals.
2. This dual monitor DisplayPort HDMI KVM switch Supports maximum resolution up to 4K 60Hz , Dual monitors output support up to 4K@60Hz for extended, mirrored or spliced display (Depends on your computer's graphics card.);
3. Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;
4. 2 Switching modes: Button switch and wired remote.
5. The ports that need to plug in HDMI/DisplayPort/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;
6. No complicated installation is required, and non-professionals can easily operate it.
7. Independent Audio Microphone output.
- Supports high resolution up to 4K@60Hz and downwards.
- Note: Only when both your computer Graphics card and monitor support 4K@60Hz you can get the 4K@60Hz effect, so if you want the maximum resolution you have to check your devices first.

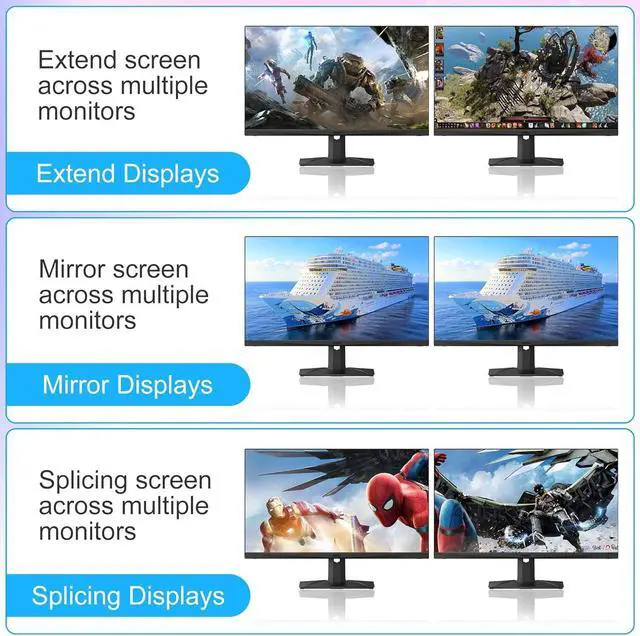

Extended Display
Mirrored Display
Spliced Display
1)Extended mode can output two different screens and mirror mode can output two identical screens. Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.
2) The requirement for this KVM to achieve a dual-screen display is that each PC you connect to has the capability to support a dual or multi-screen display. This has nothing to do with KVM.

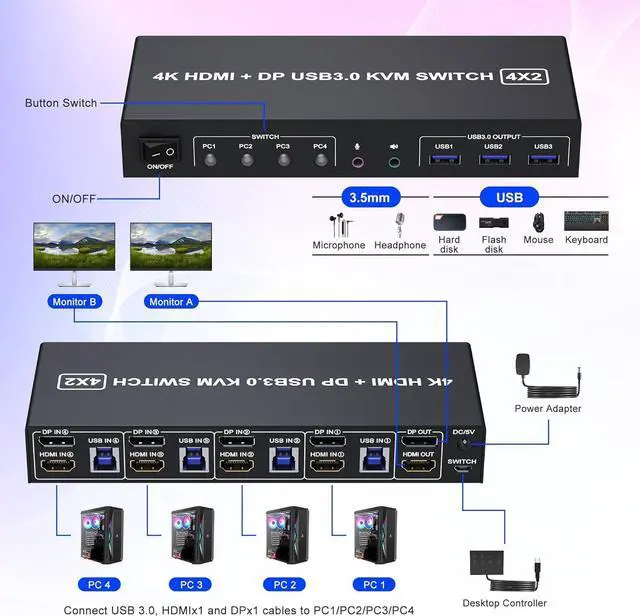

1. Insert the DC/5V adapter into the KVM ;
2. Plug the DP/HDMI cable into the KVM and monitor;(Output)
3. Plug the DP/HDMI cable and USB cable into the KVM and your computer/laptop (DP/HDMI cables are not included)(Input)
DP IN 1 + HDMI IN 1 + USB IN 1=PC1
DP IN 2 +HDMI IN 2 + USB IN 2=PC2
DP IN 3 + HDMI IN 3 + USB IN 3=PC3
DP IN 4+ HDMI IN 4+ USB IN 4=PC4
Please check whether DP IN 1, HDMI IN 1 and USB IN 1 are corresponding, and whether DP IN 2, HDMI IN 2 and USB IN 2 are corresponding. Mixed insertion is not supported. The same goes for PC3 and PC4.
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Please kindly Note:
1. Most of the reasons why only one video output works is because of an incorrect connection. Please make sure each computer has HDMI + DP cables connected to the KVM.
2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
3. Before purchasing this DP/HDMI dual monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally,Otherwise, the KVM will not be available.
4. Note: DP/HDMI cables are not included

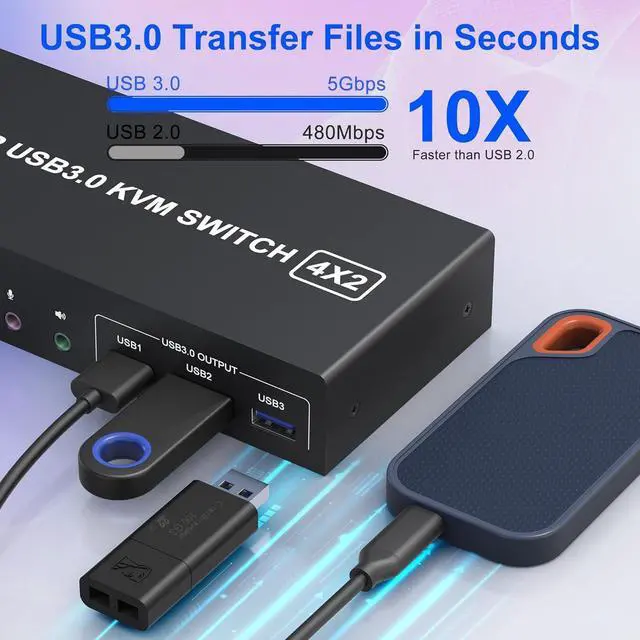

This Dual monitor Displayport HDMI KVM switch with 3 USB 3.0 ports which can recognize wired/wireless keyboard mouse, U-disk, printer, or other USB devices. USB 3.0 has a faster data transfer speed of up to 5Gbps, backward compatible with USB 2.0/1.1 devices while USB 2.0 has a data transfer speed of 480Mbps.

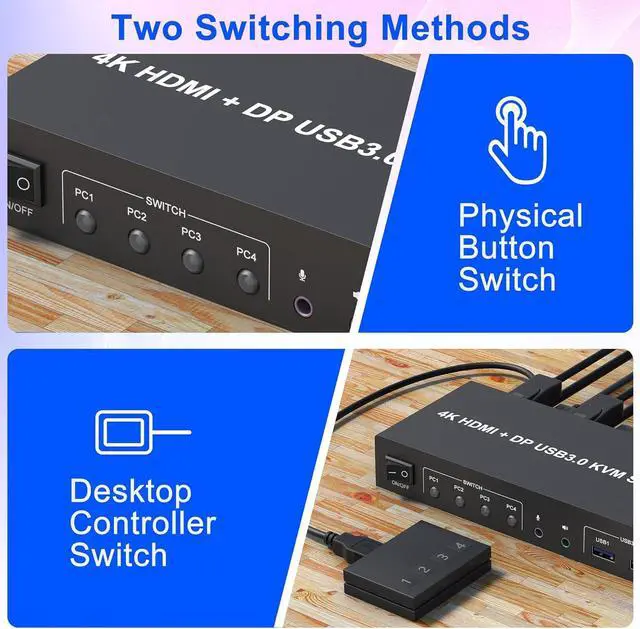

- Push-button design allows for one-touch switching using a button on the KVM Switch box, eliminating the need to plug and unplug cables frequently, saving space and time.
- Supports wired remote switching for easy cable management, you can switch directly on the desktop, convenient for your life and work
- When switching to which PC, the LED will tell you whether PC1 or PC2 or PC3 or PC4 is active.
