MODEL MPZ-D001-AFBAPV
PFC ACTIVE PFC
ATX VERSION ATX 12V
INPUT VOLTAGE 110-240V
INPUT CURRENT 15-8A
INPUT FREQUENCY 50-60HZ
DIMENSIONS (L X W X H) 201.2 X 150 X 86 MM
FAN SIZE 135MM
FAN BEARING TBB
EFFICIENCY 92% TYPICAL LOAD
80 PLUS RATING 80 PLUS PLATINUM
ERP 2014 LOT 3 YES
OPERATING TEMPERATURE 0-50°C
MTBF >100, 000 HOURS
PROTECTIONS OVP, OPP, SCP, OCP, UVP, OTP
REGULATORY CTUVUS, TUV, CE, CCC, FCC, EAC, RCM, BSMI, KC

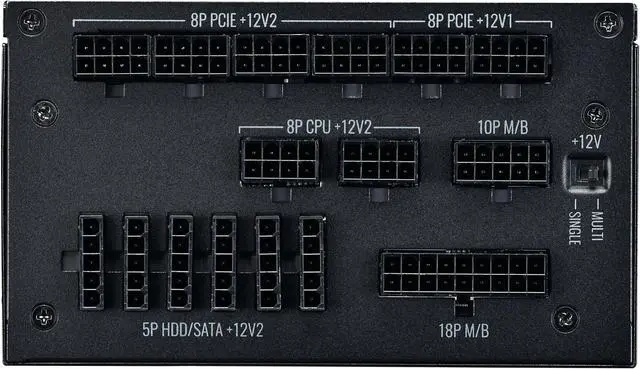

ATX 24-PIN CONNECTORS 1
EPS 4+4 PIN CONNECTORS 1
EPS 8 PIN CONNECTOR 1
SATA CONNECTORS 16
PERIPHERAL 4-PIN CONNECTORS 8
FDD CABLE 4-PIN CONNECTORS 1
PCI-E 6+2 PIN CONNECTORS 12
WATTAGE ABOVE 750W
80 PLUS PLATINUM
MODULAR FULL MODULAR
SERIES V PLATINUM SERIES
