1. Skylake 14nm CPU Intel Core i3 6157U 2 cores 4 threads 2.4Ghz 3M cache TDP 28W Intel Iris Graphics 550.
2. Kaby Lake 14nm CPU Intel Core i3 7167U 2 cores 4 threads 2.8Ghz 3M cache TDP 28W Intel Iris Plus 650.
3. Kaby Lake 14nm CPU Intel Core i5 7267U 2 cores 4 threads 3.1Ghz Max to 3.5Ghz 4M cache TDP 28W Intel Iris Plus Graphics 650.
4. Kaby Lake R 14nm CPU Intel Core i5 8250U 4 cores 8 threads 1.6Ghz Max to 3.4Ghz 6M cache TDP 15W Intel UHD 620.
5. Kaby Lake R 14nm CPU Intel Core i7 8550U 4 cores 8 threads 1.8Ghz Max to 4.0Ghz 8M cache TDP 15W Intel UHD 620.
6. Comet Lake 14nm CPU Intel Core i7 10510U 4 cores 8 threads 1.8Ghz Max to 4.9Ghz 8M cache TDP 15W Intel UHD Graphics.
| Model Number | I27 |
|---|---|
| Type | IPC type with mounting ears |
| CPU | Intel Core i3 6157U/i3 7167U/i5 7267U/i5 8250U/i7 8550U/i7 10510U Processor |
| Memory | 1* SO-DIMM DDR4, max. 32GB |
| Storage | 1* Msata SSD+1* M.2 2280 SSD+ 1* 2.5 Inch HDD |
| Expansion | 1* MSATA3.0 6Gb/s, 1*SATA3 6Gb/s, 1*ngff M.2 2280 (sata/nvme); |
| Expansion | 1* WiFi half size Mini PCIE; 1* WiFi full size Mini PCIE(Support 4G, with SIM slot) |
| Network | 2* intel i213 |
| WiFi | With dual antennas, 802.11ac 2.4+5Ghz (4G could be customized, contact us) |
| I/0 Port | 4*usb3.0+ 4* usb2.0+ 2* lan+ vga+ hdmi+ gpio+ 6* com+ dc+ sw+ps/2 |
| Power | DC100-240V AC/50-60Hz, DC 12V3A |
| Measurement | 230*175*50mm |
| Cooling system | Fanless |
| Consumption | 15W |
| System Support | Windows 7/8/8.1/10,WES7/8,Linux Ubuntu,Vxworks etc; |
| Packing List | Industrial PC+ Power supply+ Power Cord+ WiFi antennas |
6th/7th Generation Intel Core i3 Processors i3-6006U / i3-7020U, 2 Cores, 4 Threads, 2.00 GHz Base Frequency, 3MB Intel Smart Cache, 15W TDP.
Intel UHD Graphics 520, Support 4K at 60Hz, Max Resolution 4096x2304, 300MHz Graphics Base Frequency, 900MHz Graphics Max Dynamic Frequency.
6xCOM, 4xUSB3.0, 4xUSB2.0, 1xKB/MS, 1xPower Button, 1xLED Indicator, 2xAudio Connector, 2xWi-Fi Connectors, 2xRJ-45, 1xGPIO, 1xHD, 1xVGA, 1xDC IN
1xMini PC, 1xPower Supply, 1xPower Cable, 2xWiFi Antennas, Screws.
KINDLY BE ADVISED
1. The Operating System is Windows 10 Pro; It is licensed and activated before shipping but no product key.
CPU Specifications: 2 Cores, 4 Threads, 3MB Cache, 15W TDP.
OS: Windows 10 Pro.
Processor Graphics: Intel UHD Graphics 520 / 620, Support 4K at 60Hz, 300MHz Graphics Base Frequency.
Memory: Max Memory Size (dependent on memory type) 32GB; DDR4-2133, LPDDR3-1866, DDR3L-1600 Memory Types; 2 Memory Channels.
Input: DC100-240V AC/50-60Hz Output: DC12V, 5A
Weight: 2.75 pounds
Size: 9.06 x 6.89 x 1.97 inches
Support wake-on Lan, Intel Dual Band 2.4/5.0GHz high speed Wireless Wi-Fi (802.11b/g/n), Fanless, All metal case.
Connectors

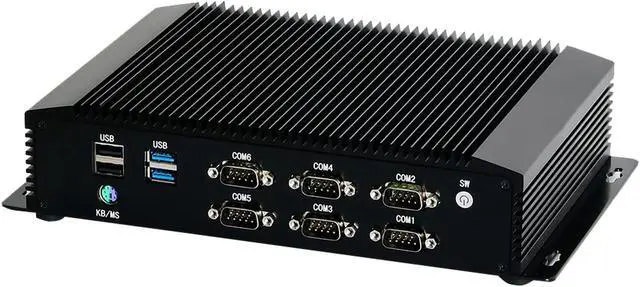

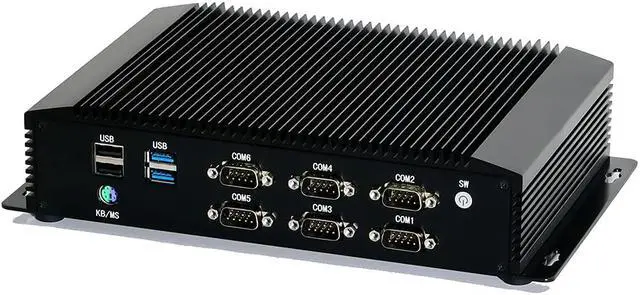

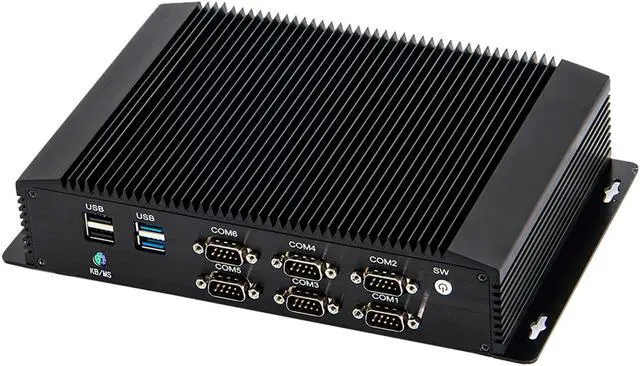

Front-Panel:
6 x COM ports
2 x USB3.0 ports
2 x USB2.0 ports
1 x KB/MS port
1 x Power Switch Button
1 x LED Power Indicator

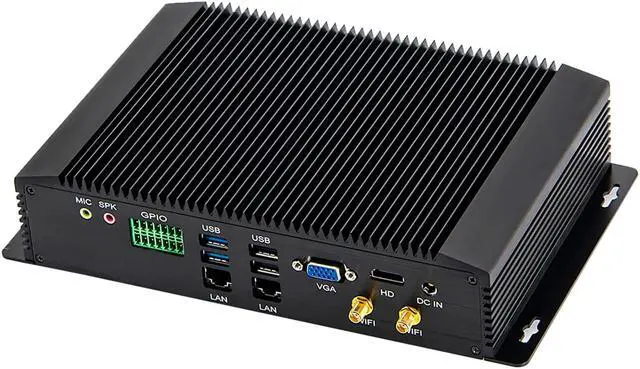

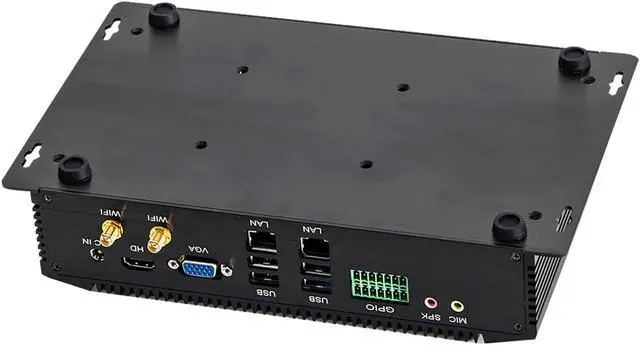

Back-Panel:
2 x USB3.0 ports
2 x USB2.0 ports
2 x Audio Connector
2 x Wi-Fi Connectors for Antennas
2 x RJ-45 ports
1 x GPIO port
1 x HD port
1 x VGA port
1 x DC IN
Compact, fully functional,all the power and functionality of a desktop industrial computer in a compact, stylish chassis,powered by intel core processor, ideal for industrial and commercial applications,work with any brand monitors. suit for multiple application,touch devices,car repair shops, security, education, home as htpc, business, etc. upgrade of professional industrial computer, leading professional industrial computer in the global industry.
Fanless passive cooling design:silent solution that's ultra energy efficient.the advanced fanless passive cooling design maximizes heat dissipation, meaning all operations can be conducted in absolute silence. 0 noise,low consumption. IPC type with mounting ears.
Partaker Mini PC designed with 4*usb3.0+ 4* usb2.0+ 2* lan+ vga+ hdmi+ gpio+ 6* com+ dc+ sw+ps/2,industrial aesthetic design and reasonable interface layout. support automatically power on after power failure, size at 230*175*50mm.
Function:
1. Green ultra-low power consumption, 7*24 hours
2. 6* COM supports COM1 COM2 for RS232 RS422 RS485 soft switching under BIOS
3. 8-bit GPIO for industrial equipment needs
4. Watchdog for 256-level
5. Support 4G network module with sim slot onboard, wake on Lan, automatic boot after power failure, resume By Alarm, PXE Lan boot functions
