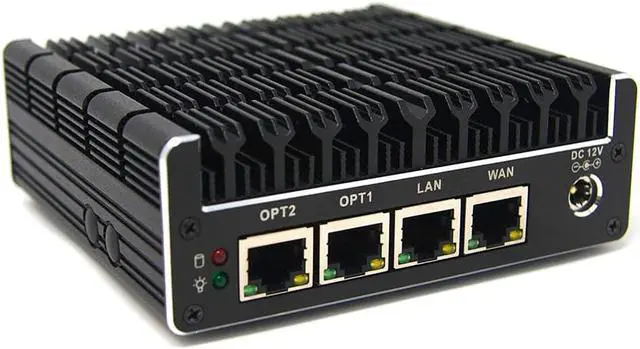

Partaker Vault 4 Port, Firewall Micro Appliance/Mini PC - Intel J3160 Quad Core, AES-NI, 4GB RAM, 128GB mSATA SSD
Limited time offer, ends 12/30 By Partaker Mini PC‘s Marketplace
- THE VAULT: Secure your network with a compact, fanless & silent firewall.
- CPU: Intel Quad Core Celeron J3160, 64 bit, up to 2.2GHz, AES-NI hardware support
- PORTS: 4x Intel i210 Gigabit Ethernet ports, 2x USB 3.0, 1x RJ-45 COM, 2x HDMI
- COMPONENTS: 1*DDR3L RAM, 1* mSATA SSD
- COMPATIBILITY: Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions.
+
+
Overview
Specs
Reviews
Model Number: Partaker
C4 CPU: Intel Celeron J3160 quad core 1.6GH z, Turbo boost 2.24
GHz Memory: 1*DDR3L 1600Mhz SODIMM Ram Slot, support max 8G
Storage: Support 1*MSATA(16G/32G/64G/128G/256G is optional)
Expansion: 2*Mini-PCIE, support full-size MSATA and Half-size Wifi
Audio Cards: Integrated Realtek ALC662 6 sound channel
Network Card: Support 4*Intel i210AT 1000M lan card, support wake on lan
WiFi: 1*Mini-PCIE(support WiFi / Bluetooth is optional )(USB channel signal

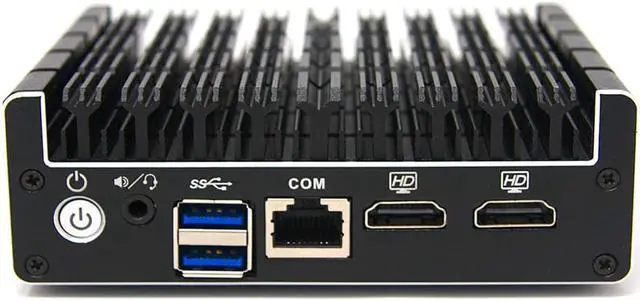

Mini-PCIE WiFi) I/0 Port: 2*HDMI+ 2*USB 3.0 +4*LAN+1*RJ45 COM+1*Power switch+1*Audio (support audio and mic input);
Power: DC-IN 12V power supply and AC power adapter

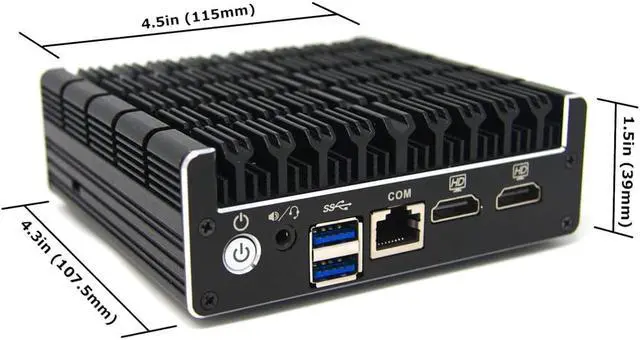

Dimension: 115* 107.5 *39mm
System: pfSense, Windows and
Linux Ubuntu Noise: Fanless
System Temperature: -10~60degC
Humidity: 5%~95% non-condensing
Installation: Desktop/Embedded/Vesa
Mount Applied: Applied in Home, Office, Meeting Room, Router, VPN, Firewall, Network server etc You may get full range of mini pc series in Partaker shop, welcome your collection, feel free to contact Partaker team, you could get a timely service support.
C4 CPU: Intel Celeron J3160 quad core 1.6GH z, Turbo boost 2.24
GHz Memory: 1*DDR3L 1600Mhz SODIMM Ram Slot, support max 8G
Storage: Support 1*MSATA(16G/32G/64G/128G/256G is optional)
Expansion: 2*Mini-PCIE, support full-size MSATA and Half-size Wifi
Audio Cards: Integrated Realtek ALC662 6 sound channel
Network Card: Support 4*Intel i210AT 1000M lan card, support wake on lan
WiFi: 1*Mini-PCIE(support WiFi / Bluetooth is optional )(USB channel signal
Mini-PCIE WiFi) I/0 Port: 2*HDMI+ 2*USB 3.0 +4*LAN+1*RJ45 COM+1*Power switch+1*Audio (support audio and mic input);
Power: DC-IN 12V power supply and AC power adapter
Dimension: 115* 107.5 *39mm
System: pfSense, Windows and
Linux Ubuntu Noise: Fanless
System Temperature: -10~60degC
Humidity: 5%~95% non-condensing
Installation: Desktop/Embedded/Vesa
Mount Applied: Applied in Home, Office, Meeting Room, Router, VPN, Firewall, Network server etc You may get full range of mini pc series in Partaker shop, welcome your collection, feel free to contact Partaker team, you could get a timely service support.
