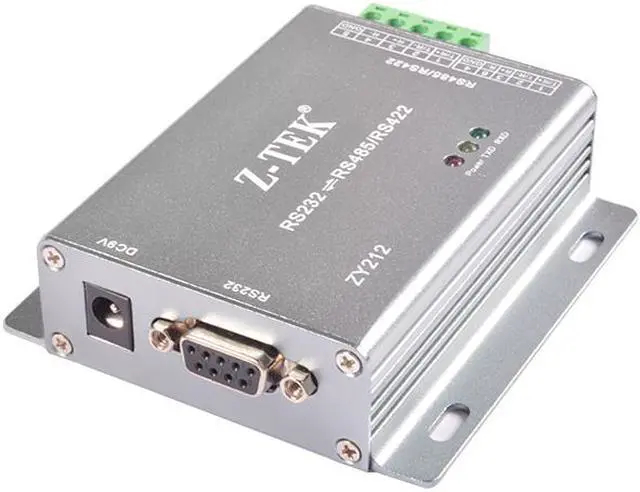

Weastlinks Lightning protection RS232 to RS485/RS422 converter adapter with power adapter ZY212

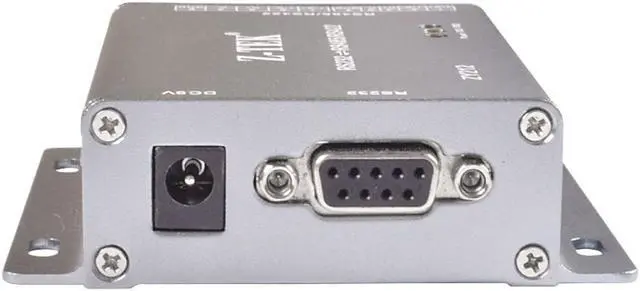

- RS-232 side in DB9 female.

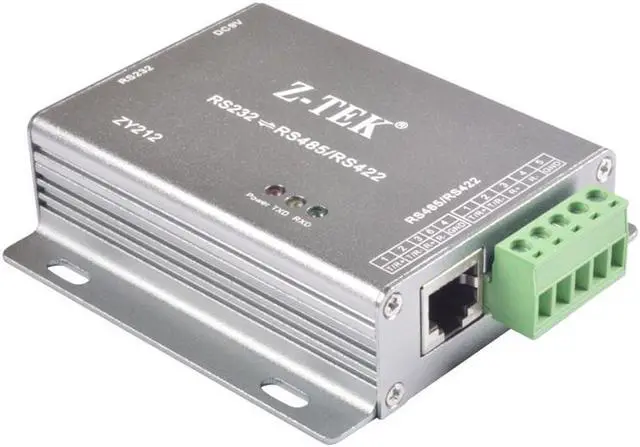

- RS-485 side in DB9 male and binding post.
- Maximum connection: 32 RS485 devices.
- Maximum distance: 1.2km.
- Baud rate: 300bps-115.2Kbps.
+
+
Overview
Specs
Reviews
Features:
RS-232 side in DB9 female.
RS-485 side in DB9 male and binding post.
Maximum connection: 32 RS485 devices.
Maximum distance: 1.2km.
Baud rate: 300bps-115.2Kbps.
Size: 58x33x19.5mm.
Environment range: -25-70?, relate humidity of 5-95% RH.
Protection:
±15kV ESD protection for RS-232 interface.
Photoelectric isolation voltage: 2.5kVrms/500V DC.
600W lightning strike and grounding interference protection for RS-485.

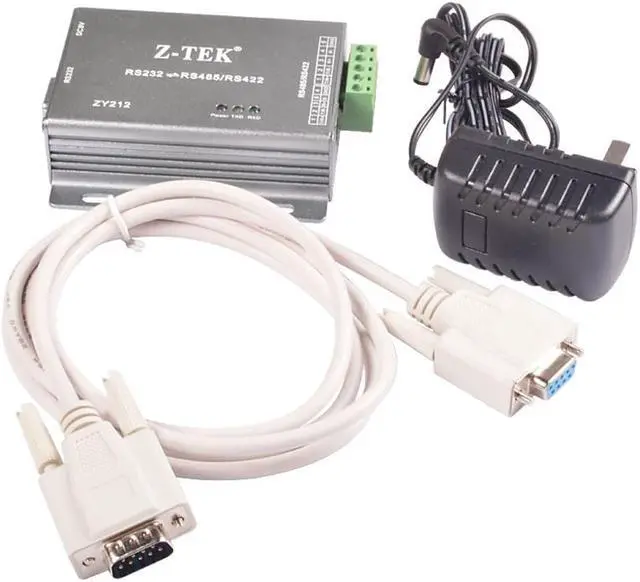

Package Included:
1 x RS232 to RS485/RS422 converter adapter
RS-232 side in DB9 female.
RS-485 side in DB9 male and binding post.
Maximum connection: 32 RS485 devices.
Maximum distance: 1.2km.
Baud rate: 300bps-115.2Kbps.
Size: 58x33x19.5mm.
Environment range: -25-70?, relate humidity of 5-95% RH.
Protection:
±15kV ESD protection for RS-232 interface.
Photoelectric isolation voltage: 2.5kVrms/500V DC.
600W lightning strike and grounding interference protection for RS-485.
Package Included:
1 x RS232 to RS485/RS422 converter adapter
