Speedex Cat 7 High-Speed 10 Gigabit FT4/CMR Shielded Patch Cable - White 50 ft.

Shop All SPEEDEX Products | Visit Newseed Store

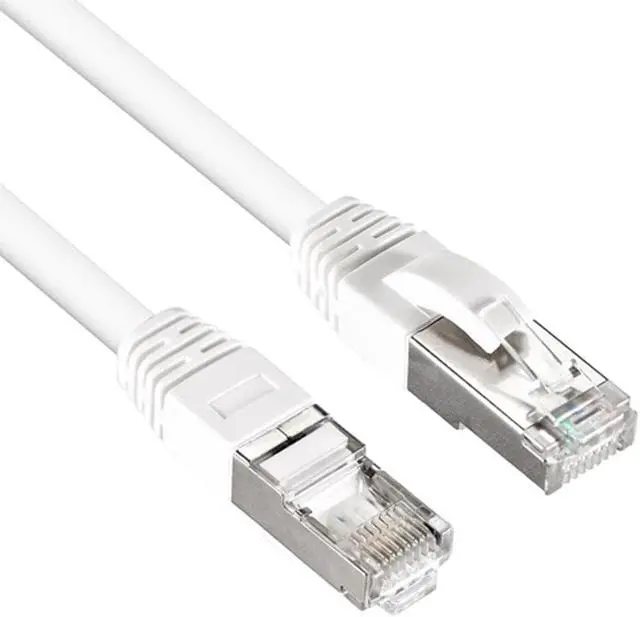

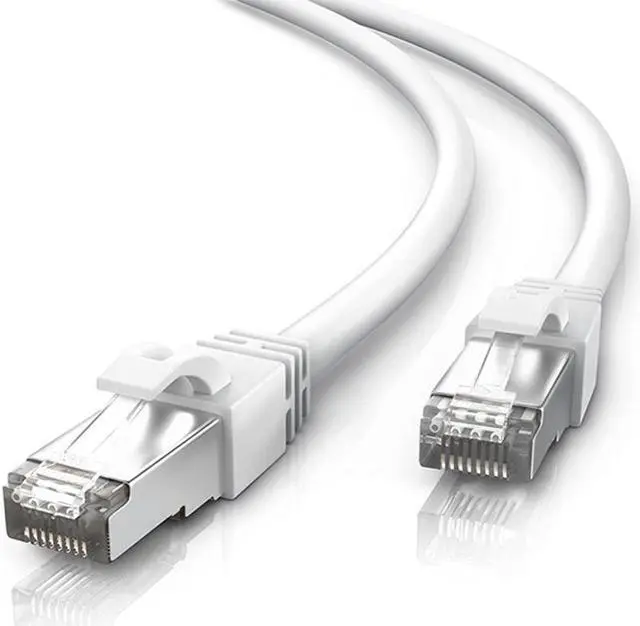

Speedex Cat 7 High-Speed 10 Gigabit FT4/CMR Shielded Patch Cable - White 50 ft.

Length: 50 ft.

15 ft.
25 ft.
50 ft.
75 ft.
100 ft.

? Transmission Speed 10,000Mbps
? CUL, ETL listed
? Gold Plated 50 Micron
? Snag-free Boot 4
? Flammability Tested to 1,000Mhz
? CAT7 UTP Patch Cable 7
? 26 AWG 4 Pair Stranded
? Thickened Copper Wire 7X0.16
? Shielded with Forled Twisted Pairs
? Reference Standard ISO/IEC 11801

Overview

Specs

Reviews

Connector Plating Gold Plated 50 Micron Cable Diameter 6.2 mm Wire Gauge 26AWG Stranded Conductor Dia. 7X 0.16 Shielding S/FTP (Shielded with Forled Twisted Pairs) Pairs 4
Twisted Pairs: 1 Blue / White Blue 2 Orange / White Orange 3 Green / White Green 4 Brown / White Brown Molding Molded Tab Style Strain Relief (UniFlex) Jacket Temperature Rating -10C to +75C Jacket Type PVC Connectors Connector A RJ45 Long Body Male Connector B RJ45 Long Body Male Performance Fluke CAT7 Patch Cable Test Yes Transmission Speed 10, 000Mbps Frequency 600 MHz Return loss 17.3 dB Attenuation 46.3 dB/100m NEXT 64.0 dB ACR 17.7 dB Approvals cUL Yes - Cable ETL Verified Yes ANSI/TIA - 568 - C. 2 Yes ISO/IEC 11801 Yes EN 50173-1 Yes Environmental RoHS Yes Reach Yes Conflict Materials Yes Package Information Package Quantity 1
