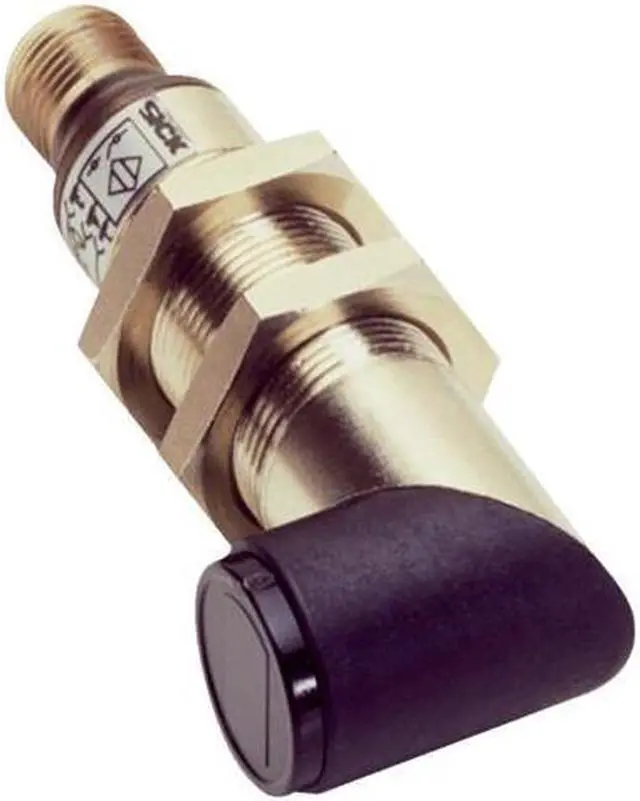

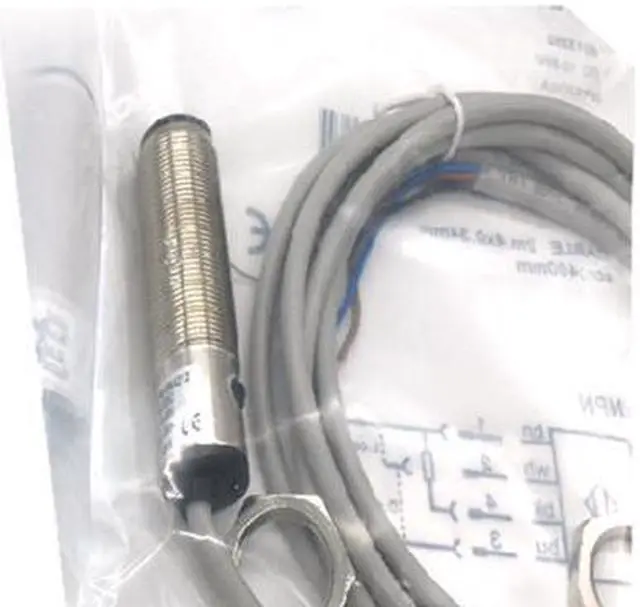

SICK VTE18-3F4440 Photoelectric proximity sensor ,PNP,New
- SICK VTE18-3F4440 Photoelectric proximity sensor ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES Sensor/ detection principle Photoelectric proximity sensor, energetic Housing design (light emission) Cylindrical Housing length 75 mm Thread diameter (housing) M18 x 1 Optical axis Radial Sensing range max. 5 mm... 400 mm 1) Sensing range 5 mm... 350 mm Type of light Infrared light Light source LED 2) Light spot size (distance) Ø 20 mm (400 mm) Angle of dispersion Approx. 2.8 ° Adjustment Potentiometer, 270° (Sensing range) MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple = 10 % 2) Power consumption 30 mA 3) Switching output PNP Switching mode Light switching Output current Imax.
100 mA Response time = 2 ms 4) Switching frequency 250 Hz 5) Connection type Male connector M12, 4-pin Circuit protection A 6) B 7) C 8) D 9) Protection class III Weight 120 g Housing material Metal, Nickel-plated brass Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +70 °C UL File No. NMFT2. E175606
100 mA Response time = 2 ms 4) Switching frequency 250 Hz 5) Connection type Male connector M12, 4-pin Circuit protection A 6) B 7) C 8) D 9) Protection class III Weight 120 g Housing material Metal, Nickel-plated brass Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +70 °C UL File No. NMFT2. E175606
