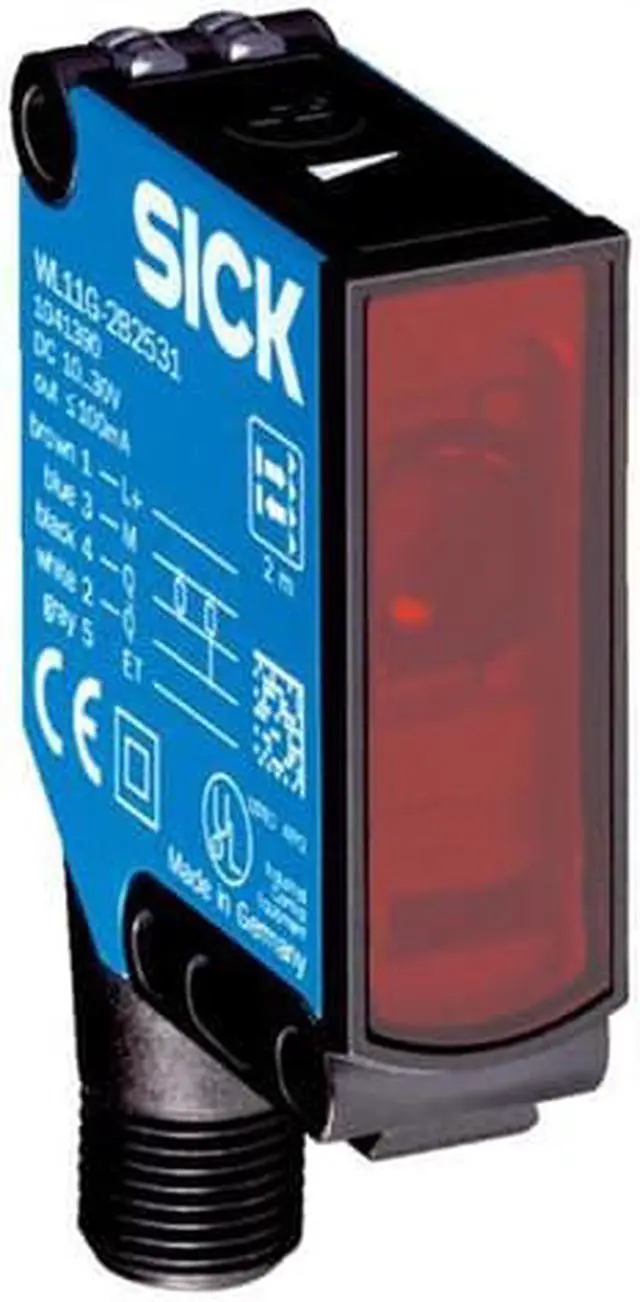

SICK WL11G-2B2531P04 Photoelectric Retro-reflective Sensor NPN ,PNP,New
- SICK WL11G-2B2531P04 Photoelectric Retro-reflective Sensor NPN ,PNP,New
+
+
Overview
Specs
Reviews
MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple 5 Vpp 2) Power consumption 30 mA 3) Switching output PNP 4) NPN 5) Switching mode Light/dark switching 4) 5) Switching mode selector Selectable via L/D control cable Signal voltage PNP HIGH/LOW Uv - 3 V / approx. 0 V Signal voltage NPN HIGH/LOW Approx. Uv / 3 V Output current Imax. 100 mA Response time 330 µs 6) Switching frequency 1, 500 Hz 7) Attenuation along light beam 8 % Connection type Male connector M12, 5-pin Circuit protection A 8) C 9) D 10) Protection class II Weight 120 g Polarisation filter? Special device? Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP66 IP67 IP69K Items supplied Reflector P250F Special feature Detecting transparent objects Ambient operating temperature –30 °C.
.. +60 °C Ambient storage temperature –40 °C... +75 °C UL File No. NRKH. E181493 & NRKH7. E181493
.. +60 °C Ambient storage temperature –40 °C... +75 °C UL File No. NRKH. E181493 & NRKH7. E181493
