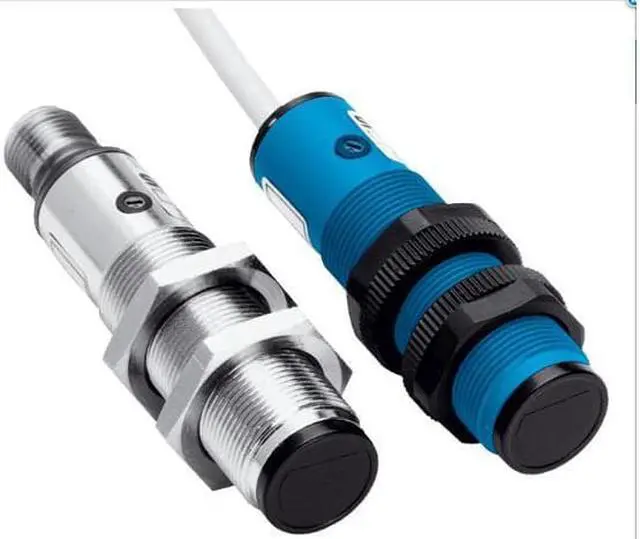

SICK VTE18-4N2140 Photoelectric proximity sensor ,NPN New
- SICK VTE18-4N2140 Photoelectric proximity sensor ,NPN New
+
+
Overview
Specs
Reviews
FEATURES Sensor/ detection principle Photoelectric proximity sensor Dimensions (W x H x D) 78 mm Housing design (light emission) Cylindrical, straight Sensing range max. 3 mm... 200 mm 1) Sensing range 3 mm... 170 mm 1) Type of light Infrared light Light source LED Angle of dispersion 2.8 ° Adjustment Potentiometer MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC Ripple = 10 % Power consumption = 30 mA 1) Switching output NPN Switching mode Light/dark switching Switching mode selector Selectable via L/D control cable Response time = 2 ms 2) Connection type Male connector M12, 4-pin Housing material Metal, Brass nickel-plated, plastic Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C.
.. +70 °C Ambient storage temperature –25 °C... +70 °C UL File No. NMFT2. E175606
.. +70 °C Ambient storage temperature –25 °C... +70 °C UL File No. NMFT2. E175606
