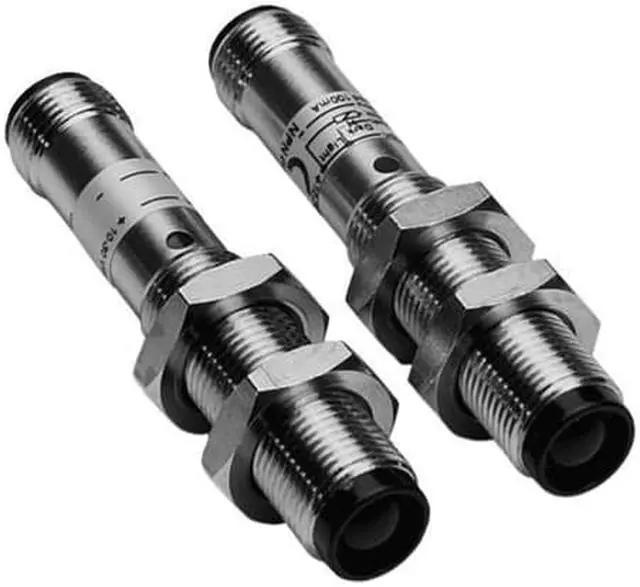

SICK VS/VE12-2N430 Through-beam photoelectric sensor ,NPN ,New

Shop All Sick Products | Visit B-IN Electronics Store

SICK VS/VE12-2N430 Through-beam photoelectric sensor ,NPN ,New

SICK VS/VE12-2N430 Through-beam photoelectric sensor ,NPN ,New

Overview

Specs

Reviews

FEATURES Sensor/ detection principle Through-beam photoelectric sensor Housing design (light emission) Cylindrical Housing length 66.3 mm Thread diameter (housing) Round connector M12 x 1 Sensing range max. 0 m... 5 m Sensing range 0 m... 4 m Type of light Infrared light Light source LED 1) Light spot size (distance) Ø 100 mm (4 m) Angle of dispersion Approx. 1.4 ° Wave length 880 nm Adjustment None MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple = 10 % 2) Power consumption 20 mA 3) Switching output NPN Switching mode Light/dark switching Switching mode selector Selectable via L/D control cable Output current Imax.

= 100 mA 3) Response time = 2 ms 4) Switching frequency 250 Hz 5) Connection type Male connector M12, 4-pin Circuit protection A 6) B 7) C 8) D 9) Protection class III Weight 36 g Housing material Metal, Nickel-plated brass/PA Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +70 °C Ambient storage temperature –25 °C... +70 °C

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 15 days
Return for replacement within: 30 days
This item is covered by B-IN Electronics Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Item#: 9SIBKNJK8F9906
