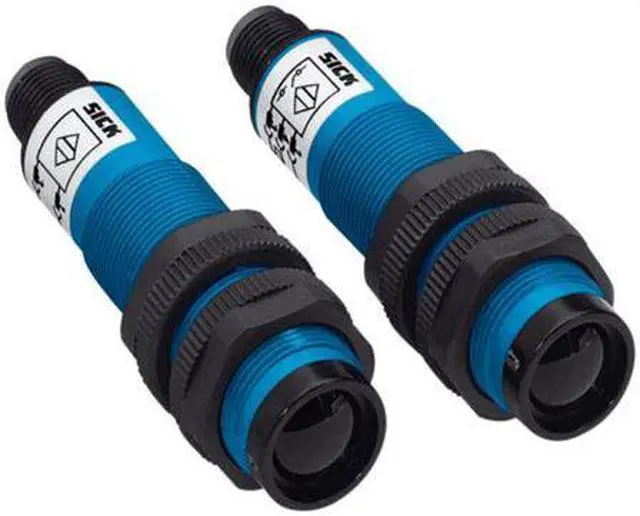

SICK VS/VE18-4N3640 Through-beam Photoelectric Sensor ,NPN ,New
- SICK VS/VE18-4N3640 Through-beam Photoelectric Sensor ,NPN ,New
+
+
Overview
Specs
Reviews
FEATURES Sensor/ detection principle Through-beam photoelectric sensor Housing design (light emission) Cylindrical Housing length 78 mm Thread diameter (housing) M18 x 1 Optical axis Axial Sensing range max. 0 m... 20 m Sensing range 0 m... 14 m Type of light Infrared light Light source LED 1) Light spot size (distance) Ø 700 mm (14 m) Angle of dispersion Approx. 2.8 ° Adjustment None MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple = 10 % 2) Power consumption 30 mA 3) Switching output NPN 4) Switching mode Light/dark switching 4) Switching mode selector Selectable via L/D control cable Output current Imax.
100 mA Response time = 2 ms 5) Switching frequency 250 Hz 6) Connection type Male connector M12, 4-pin Circuit protection A 7) B 8) C 9) D 10) Protection class III Weight 200 g Housing material Plastic, PBT/PC Enclosure rating IP67 Test input sender off TE to 0 V Ambient operating temperature –25 °C... +70 °C UL File No. NMFT2. E175606
100 mA Response time = 2 ms 5) Switching frequency 250 Hz 6) Connection type Male connector M12, 4-pin Circuit protection A 7) B 8) C 9) D 10) Protection class III Weight 200 g Housing material Plastic, PBT/PC Enclosure rating IP67 Test input sender off TE to 0 V Ambient operating temperature –25 °C... +70 °C UL File No. NMFT2. E175606
