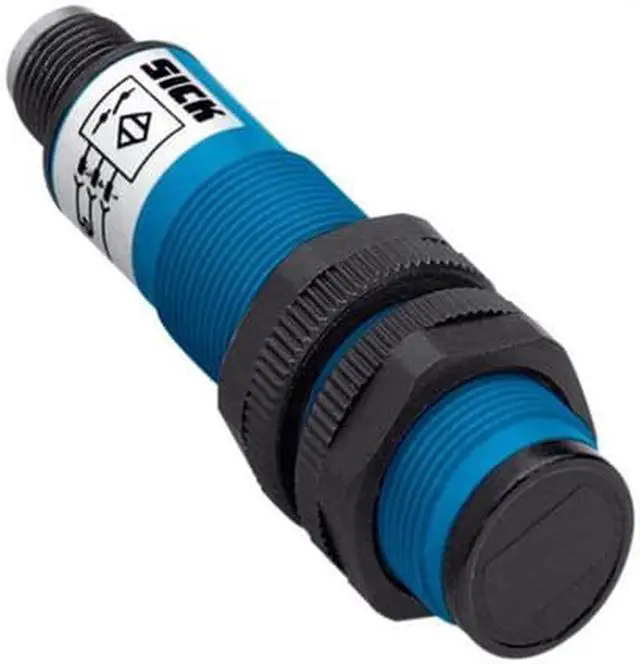

SICK VL18-2T2460 Photoelectric retro-reflective sensor New
- SICK VL18-2T2460 Photoelectric retro-reflective sensor New
+
+
Overview
Specs
Reviews
FEATURES Sensor/ detection principle Photoelectric retro-reflective sensor Housing design (light emission) Cylindrical Housing length 92 mm Thread diameter (housing) M18 x 1 Optical axis Axial Sensing range max. 0.005 m... 3.5 m 1) Sensing range 0.01 m... 3 m 1) Type of light Infrared light Light source LED 2) Light spot size (distance) Ø 30 mm (3 m) Angle of dispersion 6° Adjustment None MECHANICS/ELECTRONICS Supply voltage 20 V AC... 253 V AC 1) Mains frequency 50 Hz, 60 Hz Power consumption 30 mA 2) Switching output TRIAC Switching mode Dark switching Output current Imax.
300 mA 3) Response time = 20 ms 4) Switching frequency 25 Hz 5) Connection type Male connector M12, 4-pin Circuit protection C 6) Protection class III Weight 30 g Housing material Plastic, PBT/PC Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +60 °C UL File No. NMFT2. E175606
300 mA 3) Response time = 20 ms 4) Switching frequency 25 Hz 5) Connection type Male connector M12, 4-pin Circuit protection C 6) Protection class III Weight 30 g Housing material Plastic, PBT/PC Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +60 °C UL File No. NMFT2. E175606
