SICK WT2S-N161 Photoelectric Proximity sensor, Energetic,NPN New
- SICK WT2S-N161 Photoelectric Proximity sensor, Energetic,NPN New
+
+
Overview
Specs
Reviews

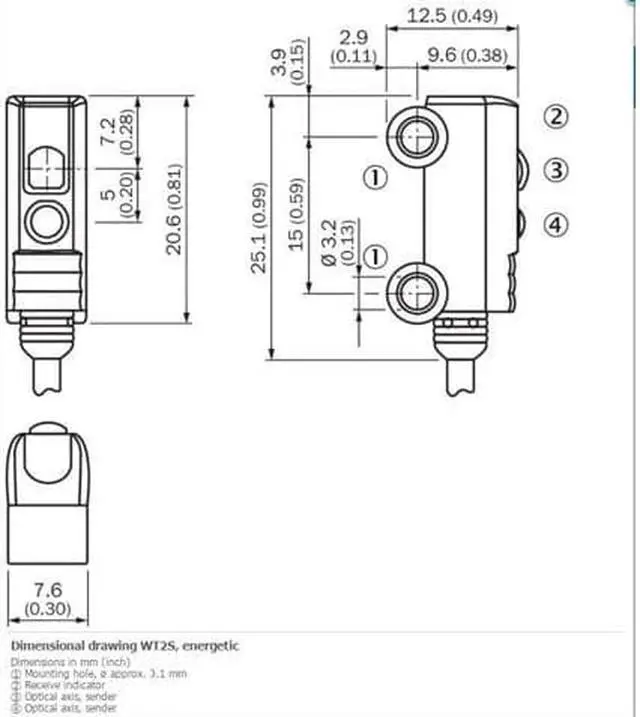

FEATURES Sensor/ detection principle Photoelectric proximity sensor, Energetic Dimensions (W x H x D) 7.6 mm x 25.1 mm x 12.5 mm Housing design (light emission) Rectangular Sensing range max. 1 mm... 55 mm 1) Sensing range 1 mm... 55 mm 1) Type of light Visible red light Light source PinPoint LED 2) Light spot size (distance) Ø 3.5 mm (50 mm) Wave length 660 nm Adjustment None MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple = 5 Vpp 2) Switching output NPN Switching mode Light switching Output current Imax. = 50 mA Response time < 0.6 ms 3) Switching frequency 800 Hz 4) Connection type Cable, 3-wire, 2 m 5) Cable material PVC Cable diameter Ø 2.4 mm Circuit protection A 6) C 7) D 8) Weight 18 g Reverse polarity protection? Short-circuit protection? Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 IP69K Ambient operating temperature –20 °C.
.. +50 °C Ambient storage temperature –40 °C... +75 °C
.. +50 °C Ambient storage temperature –40 °C... +75 °C
