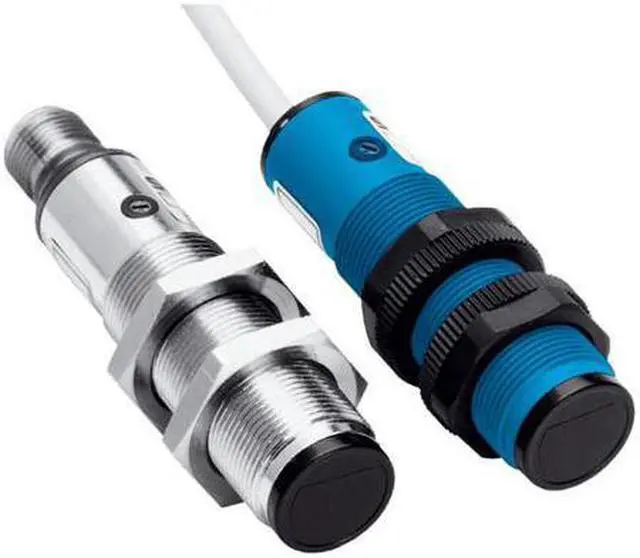

SICK VTF18-3E5340 Photoelectric proximity sensor NPN New
- SICK VTF18-3E5340 Photoelectric proximity sensor NPN New
+
+
Overview
Specs
Reviews
FEATURES Sensor/ detection principle Photoelectric proximity sensor Dimensions (W x H x D) 75 mm Housing design (light emission) Cylindrical, angled Sensing range max. 0 mm... 50 mm 1) Sensing range 0 mm... 45 mm 1) Type of light Infrared light Light source LED Adjustment Potentiometer MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC Ripple = 10 % Power consumption = 30 mA 1) Switching output NPN Switching mode Light switching Response time = 2 ms 2) Connection type Male connector M12, 4-pin Housing material Metal, Brass nickel-plated, plastic Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C.
.. +70 °C Ambient storage temperature –25 °C... +70 °C UL File No. NMFT2. E175606
.. +70 °C Ambient storage temperature –25 °C... +70 °C UL File No. NMFT2. E175606
