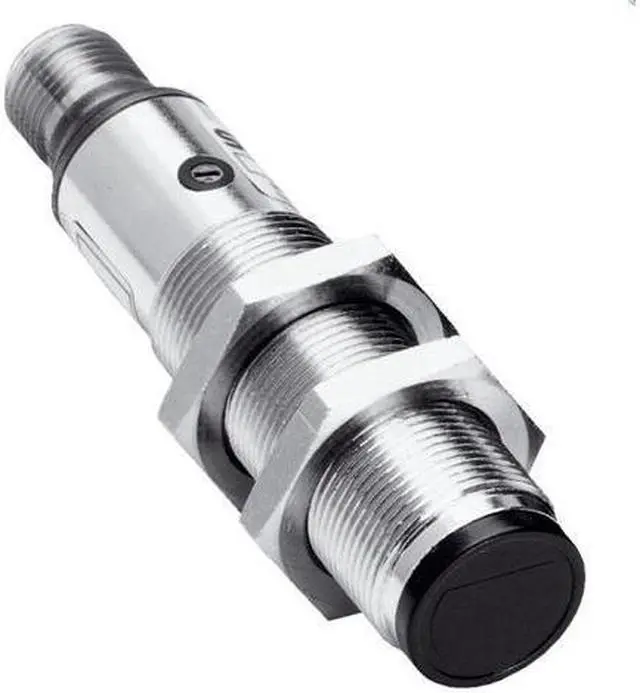

SICK VL18-3N3212 NPNPhotoelectric retro-reflective sensor New

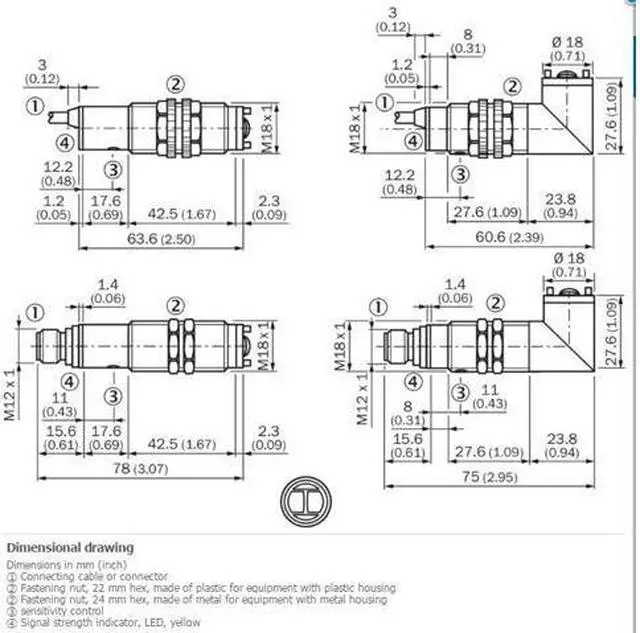

FEATURES Sensor/ detection principle Photoelectric retro-reflective sensor Housing design (light emission) Cylindrical Housing length 63.6 mm Thread diameter (housing) M18 x 1 Optical axis Axial Sensing range max. 0.05 m... 3.7 m 1) Sensing range 0.05 m... 3 m 1) Type of light Visible red light Light source LED 2) Light spot size (distance) Ø 150 mm (3 m) Angle of dispersion Approx. 2.8 ° Adjustment Potentiometer, 270° (Sensitivity) MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple = 10 % 2) Power consumption 30 mA 3) Switching output NPN Switching mode Dark switching Output current Imax.

100 mA Response time = 2 ms 4) Switching frequency 250 Hz 5) Connection type Cable, 3-wire, 2 m 6) Cable material PVC Conductor cross-section 0.14 mm² Cable diameter Ø 3.1 mm Circuit protection A 7) B 8) C 9) D 10) Protection class III Weight 120 g Polarisation filter? Housing material Metal, Nickel-plated brass Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +70 °C UL File No. NMFT2. E175606
