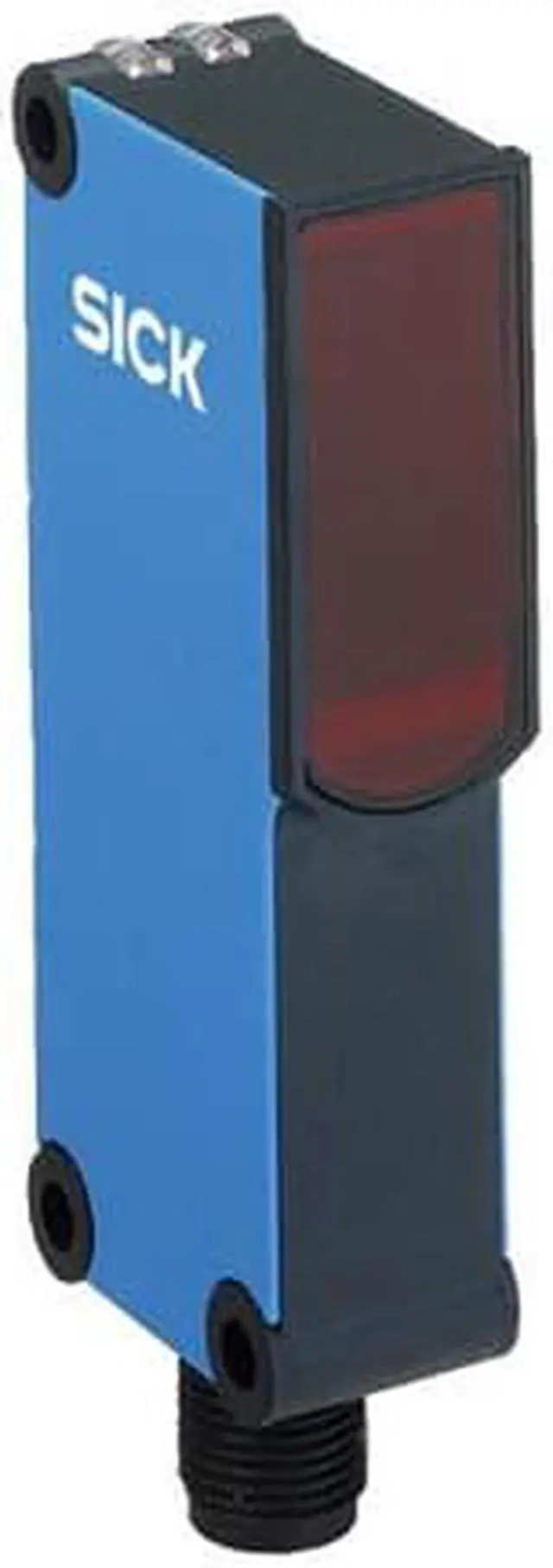

SICK WL14-2N430 Photoelectric retro-reflective sensor ,NPN New
- SICK WL14-2N430 Photoelectric retro-reflective sensor ,NPN New
+
+
Overview
Specs
Reviews

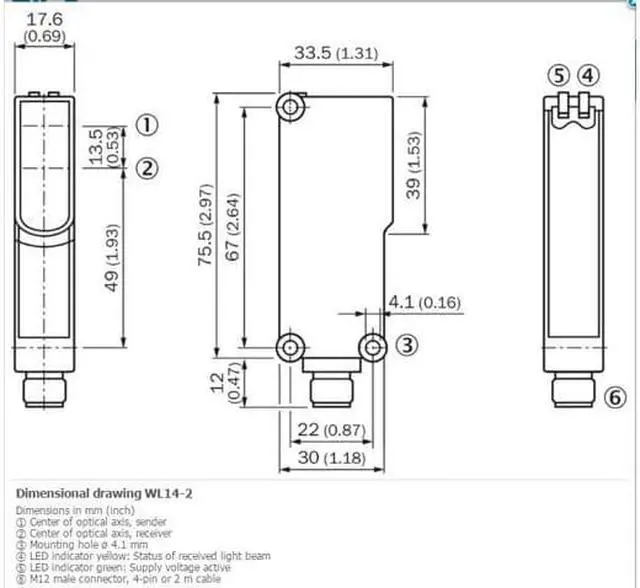

FEATURES Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens Dimensions (W x H x D) 17.6 mm x 75.5 mm x 33.5 mm Housing design (light emission) Rectangular Sensing range max. 0.15 m... 6 m 1) Sensing range 0.15 m... 4 m 1) Type of light Visible red light Light source LED 2) Light spot size (distance) Ø 140 mm (4 m) Angle of dispersion Approx. 2° Wave length 645 nm Adjustment None MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple 5 Vpp 2) Power consumption 35 mA 3) Switching output NPN Output function Complementary Switching mode Light/dark switching Output current Imax.
= 100 mA Response time = 2.5 ms 4) Switching frequency 200 Hz 5) Connection type Male connector M12, 4-pin Circuit protection A 6) C 7) D 8) Weight 40 g Polarisation filter? Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +60 °C Ambient storage temperature –40 °C... +70 °C UL File No. NRKH. E181493 & NRKH7. E181493
= 100 mA Response time = 2.5 ms 4) Switching frequency 200 Hz 5) Connection type Male connector M12, 4-pin Circuit protection A 6) C 7) D 8) Weight 40 g Polarisation filter? Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +60 °C Ambient storage temperature –40 °C... +70 °C UL File No. NRKH. E181493 & NRKH7. E181493
