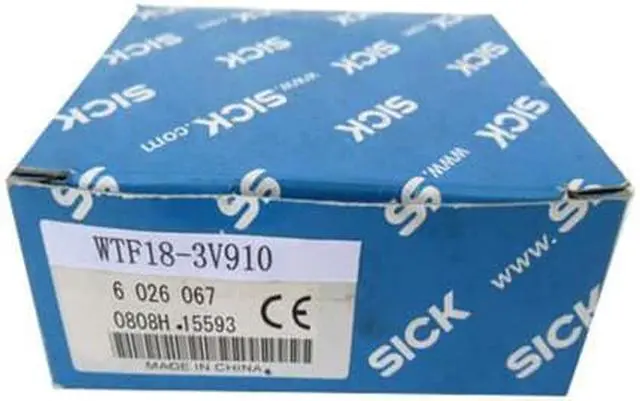

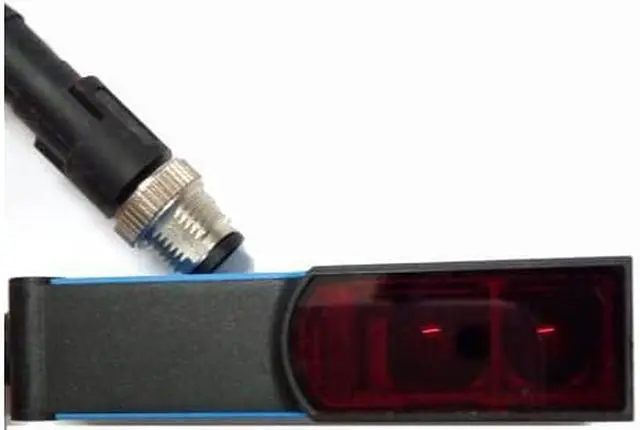

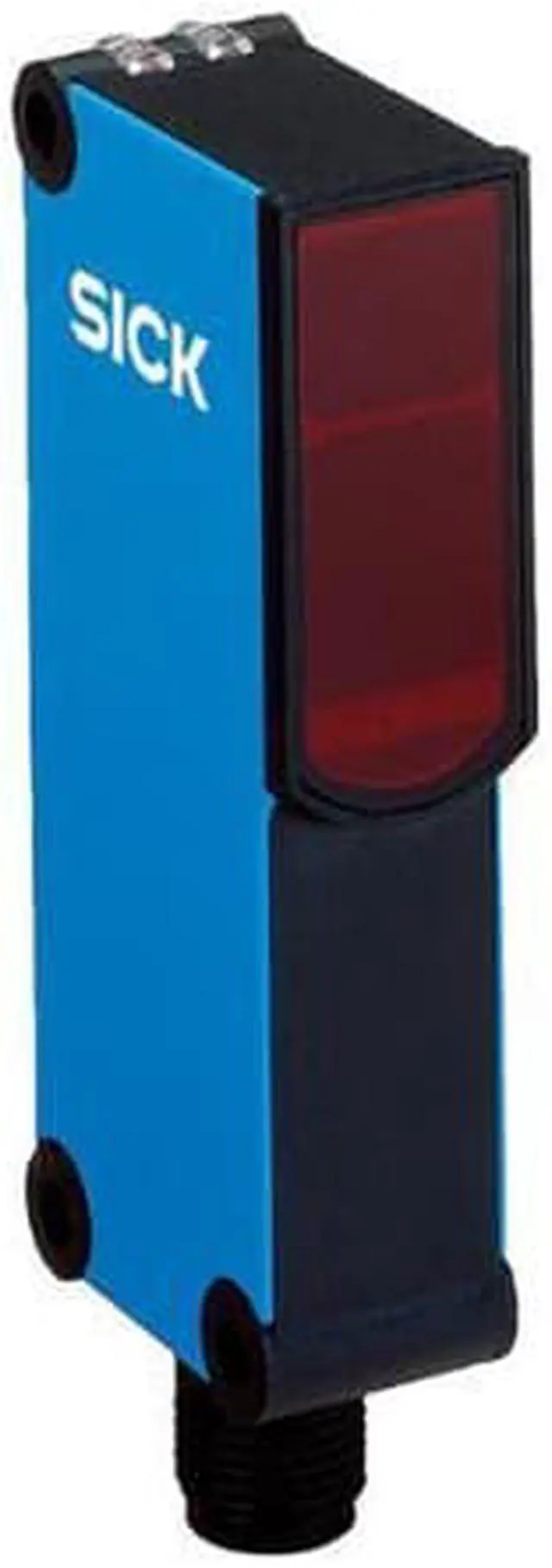

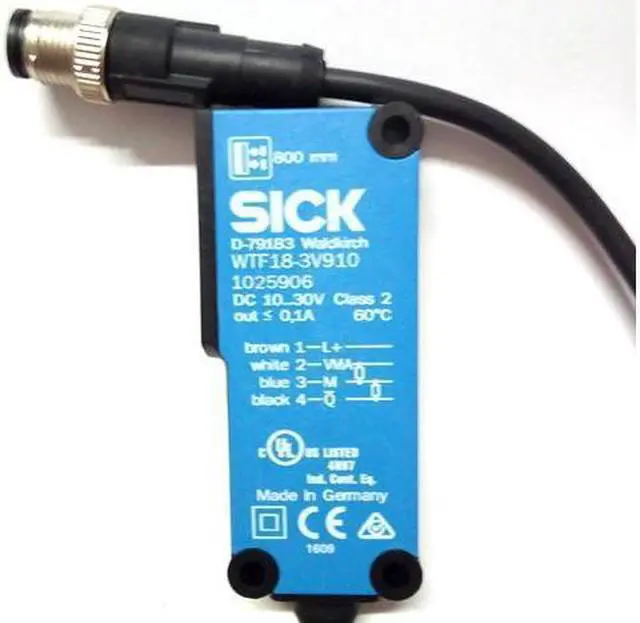

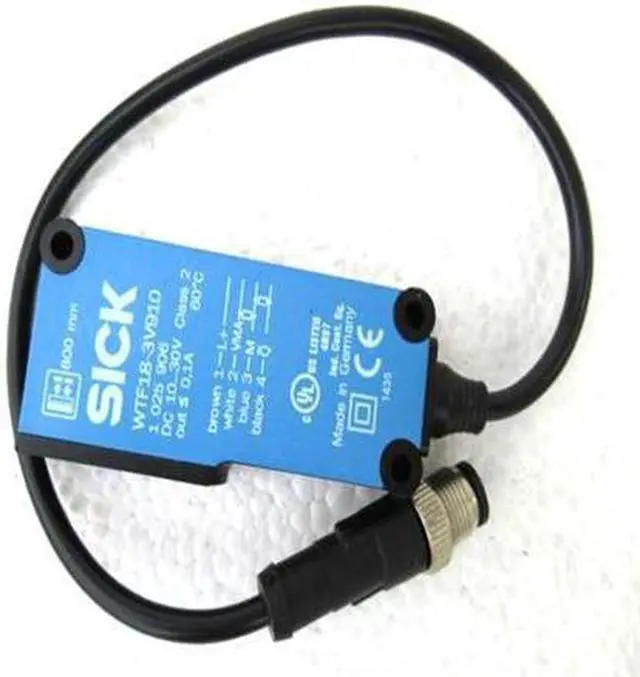

SICK WTF18-3V910 Small Photoelectric Sensors ,PNP,New
- SICK WTF18-3V910 Small Photoelectric Sensors ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES Sensor/ detection principle Photoelectric proximity sensor, Background suppression Dimensions (W x H x D) 17.6 mm x 75.5 mm x 33.5 mm Housing design (light emission) Rectangular Sensing range max. 300 mm... 800 mm 1) Sensing range 50 mm... 700 mm 1) Type of light Infrared light Light source LED 2) Light spot size (distance) Ø 15 mm (300 mm) Wave length 870 nm Adjustment Potentiometer, 4 turns Alarm output? MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple < 5 Vpp 2) Power consumption 55 mA 3) Switching output PNP Switching mode Dark switching Output current Imax.
100 mA Response time < 700 µs 4) Switching frequency 700 Hz 5) Connection type Cable with M12 male connector, 4-pin, 0.29 m 6) Cable material PVC Circuit protection A 7) C 8) D 9) Weight 70 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –40 °C... +60 °C Ambient storage temperature –40 °C... +75 °C UL File No. NRKH. E181493 & NRKH7. E181493
100 mA Response time < 700 µs 4) Switching frequency 700 Hz 5) Connection type Cable with M12 male connector, 4-pin, 0.29 m 6) Cable material PVC Circuit protection A 7) C 8) D 9) Weight 70 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –40 °C... +60 °C Ambient storage temperature –40 °C... +75 °C UL File No. NRKH. E181493 & NRKH7. E181493
