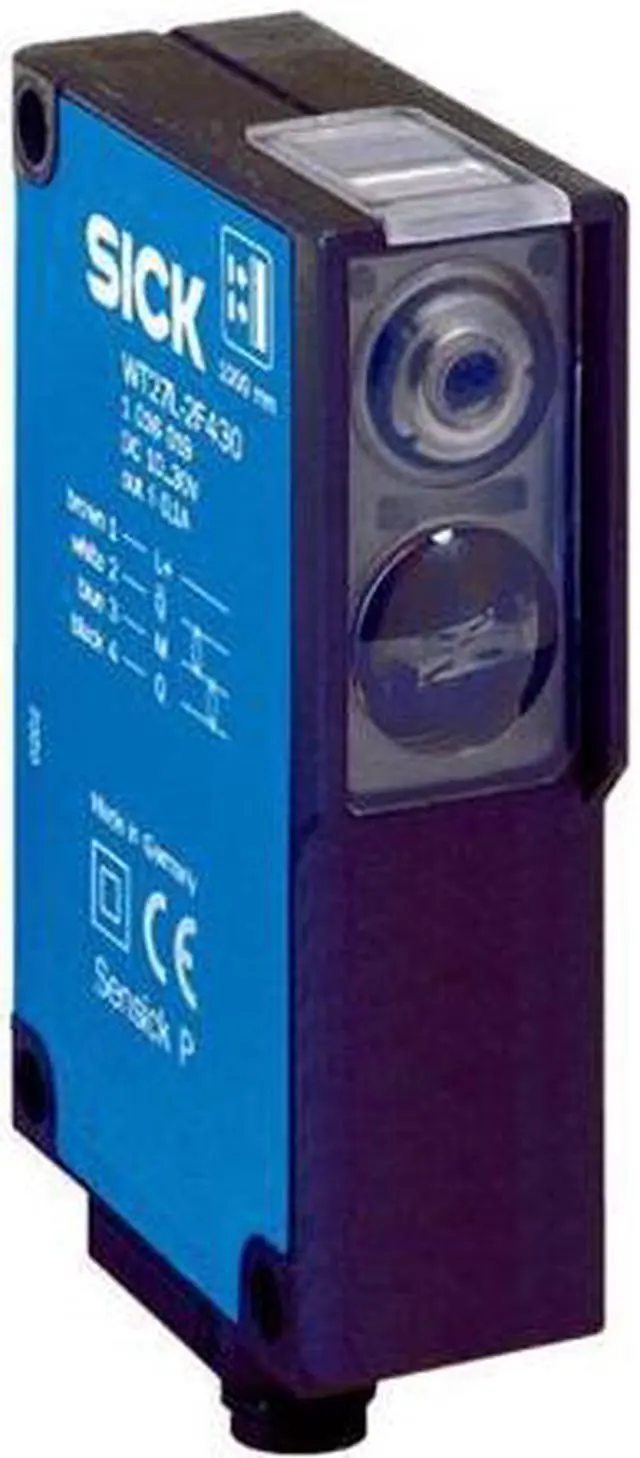

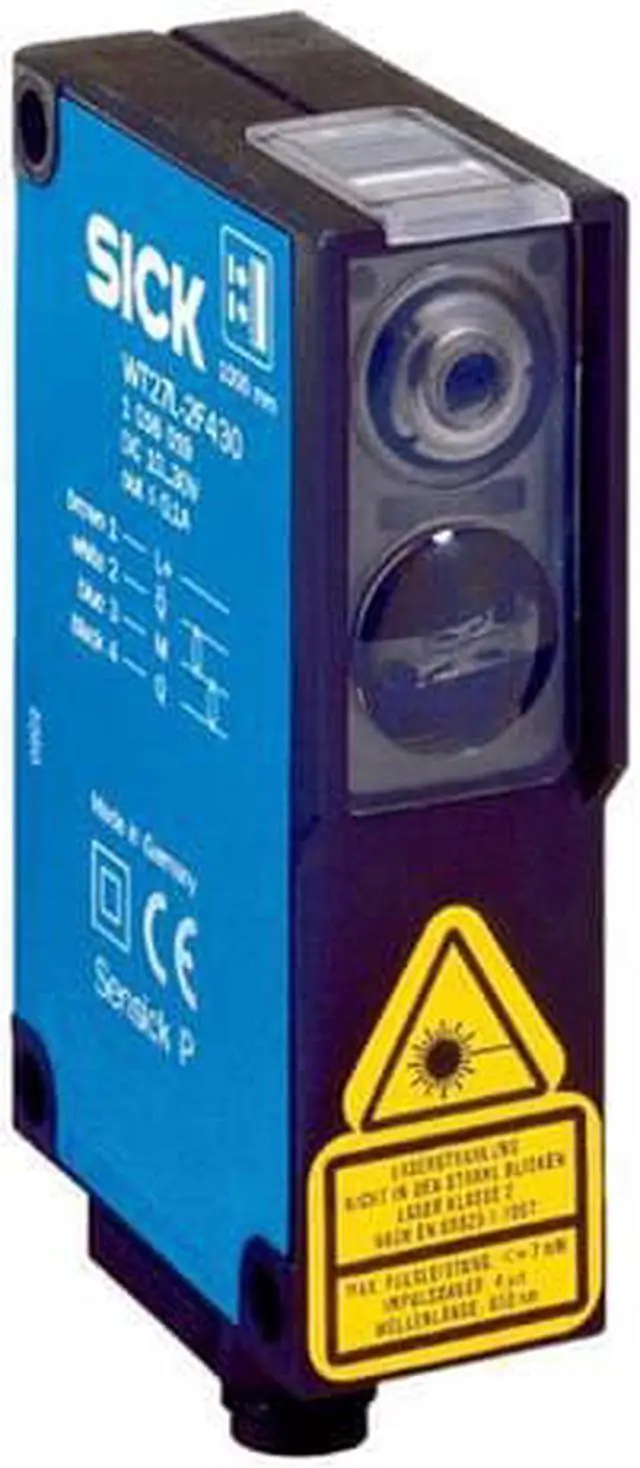

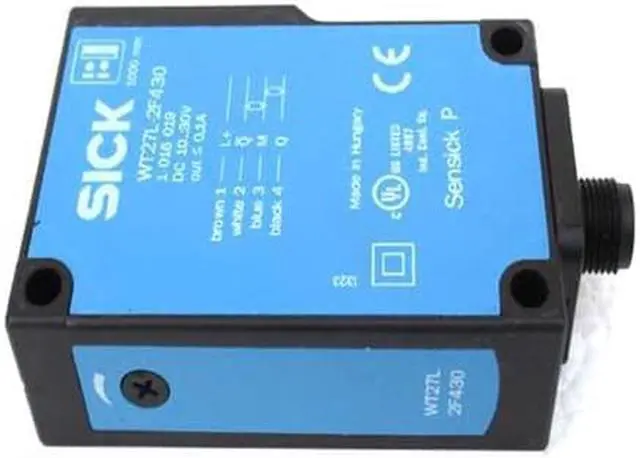

SICK WT27L-2F430 Photoelectric Proximity Sensor,PNP,New

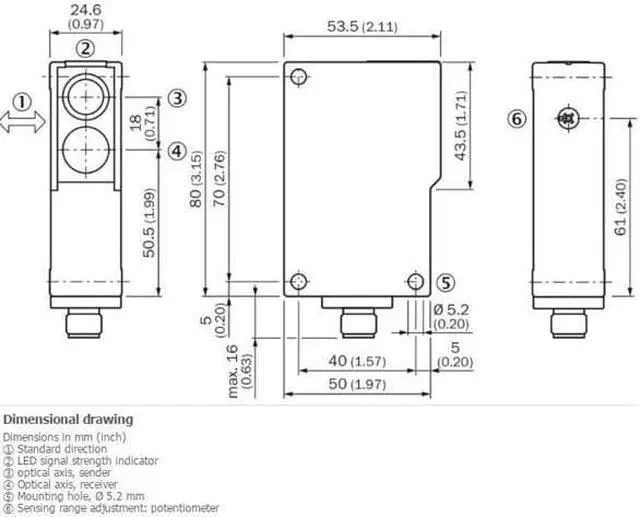

FEATURES Sensor/ detection principle Photoelectric proximity sensor, Background suppression Dimensions (W x H x D) 24.6 mm x 80 mm x 53.5 mm Housing design (light emission) Rectangular Sensing range max. 100 mm... 800 mm 1) Sensing range 100 mm... 800 mm Type of light Visible red light Light source Laser 2) Light spot size (distance) Ø 2 mm (400 mm) Wave length 650 nm Laser class 2 (EN 60825-1), low power. Eyes are normally protected by averting reaction and eyelid closing reflex. Adjustment Potentiometer Potentiometer Special applications Detecting small objects MECHANICS/ELECTRONICS Supply voltage 10 V DC.

.. 30 V DC 1) Ripple = 5 % 2) Power consumption 35 mA 3) Switching output PNP Output function Complementary Switching mode Light/dark switching Output current Imax. = 100 mA Response time < 500 µs 4) Switching frequency 1, 000 Hz 5) Connection type Male connector M12, 4-pin Circuit protection A 6) C 7) D 8) Protection class II 9) Weight 100 g Housing material Plastic, ABS Enclosure rating IP67 Ambient operating temperature –10 °C... +45 °C Ambient storage temperature –10 °C... +75 °C UL File No.

NRKH. E181493 & NRKH7. E181493
