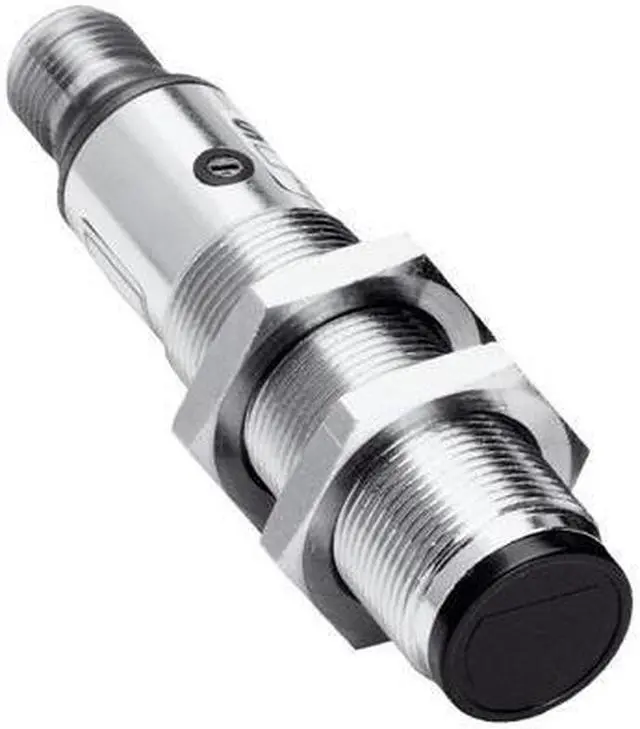

SICK VTE18-3P4240 Photoelectric proximity sensor ,PNP,New

Shop All Sick Products | Visit B-IN Electronics Store

SICK VTE18-3P4240 Photoelectric proximity sensor ,PNP,New

SICK VTE18-3P4240 Photoelectric proximity sensor ,PNP,New

Overview

Specs

Reviews

FEATURES Sensor/ detection principle Photoelectric proximity sensor, energetic Housing design (light emission) Cylindrical Housing length 78 mm Thread diameter (housing) M18 x 1 Optical axis Axial Sensing range max. 5 mm... 400 mm 1) Sensing range 5 mm... 350 mm Type of light Infrared light Light source LED 2) Light spot size (distance) Ø 20 mm (400 mm) Angle of dispersion Approx. 2.8 ° Adjustment Potentiometer, 270° (Sensing range) MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple = 10 % 2) Power consumption 30 mA 3) Switching output PNP Switching mode Dark switching Output current Imax.

100 mA Response time = 2 ms 4) Switching frequency 250 Hz 5) Connection type Male connector M12, 4-pin Circuit protection A 6) B 7) C 8) D 9) Protection class III Weight 120 g Housing material Metal, Nickel-plated brass Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +70 °C UL File No. NMFT2. E175606T8. E128350

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 15 days
Return for replacement within: 30 days
This item is covered by B-IN Electronics Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Item#: 9SIBKNJK8F9932
