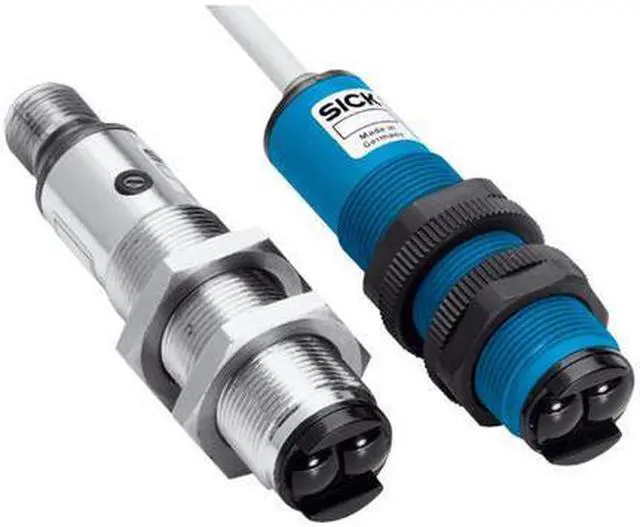

SICK VL18-3E3412 Photoelectric retro-reflective sensor NPN ,New
- SICK VL18-3E3412 Photoelectric retro-reflective sensor NPN ,New
+
+
Overview
Specs
Reviews
FEATURES Sensor/ detection principle Photoelectric retro-reflective sensor Dimensions (W x H x D) 60.6 mm Housing design (light emission) Cylindrical, angled Sensing range max. 0.05 m... 3.7 m 1) Sensing range 0.05 m... 3 m 1) Type of light Visible red light Light source LED Angle of dispersion 2.8 ° Adjustment Potentiometer MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC Ripple = 10 % Power consumption = 30 mA 1) Switching output NPN Switching mode Light switching Response time = 2 ms 2) Connection type Cable, 2 m 3) Cable material PVC Conductor cross-section 0.14 mm² Cable diameter Ø 3.1 mm Housing material Metal, Brass nickel-plated, plastic Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C.
.. +70 °C Ambient storage temperature –25 °C... +70 °C UL File No. NMFT2. E175606
.. +70 °C Ambient storage temperature –25 °C... +70 °C UL File No. NMFT2. E175606
