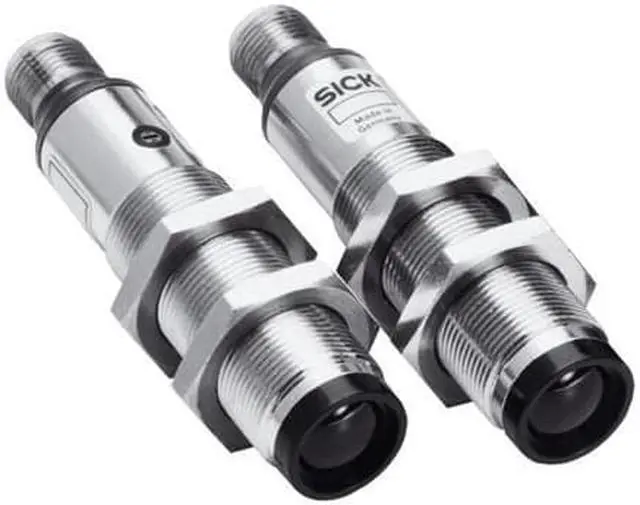

SICK VS/VE18-3F3140 Through-beam photoelectric sensor ,PNP,New

Shop All Sick Products | Visit B-IN Electronics Store

SICK VS/VE18-3F3140 Through-beam photoelectric sensor ,PNP,New

SICK VS/VE18-3F3140 Through-beam photoelectric sensor ,PNP,New

Overview

Specs

Reviews

FEATURES Sensor/ detection principle Through-beam photoelectric sensor Housing design (light emission) Cylindrical Housing length 78 mm Thread diameter (housing) M18 x 1 Optical axis Axial Sensing range max. 0 m... 20 m Sensing range 0 m... 14 m Type of light Infrared light Light source LED 1) Light spot size (distance) Ø 700 mm (14 m) Angle of dispersion Approx. 2.8 ° Adjustment None MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple = 10 % 2) Power consumption 30 mA 3) Switching output PNP Switching mode Light switching Output current Imax.

100 mA Response time = 2 ms 4) Switching frequency 250 Hz 5) Connection type Male connector M12, 4-pin Circuit protection A 6) B 7) C 8) D 9) Protection class III Weight 240 g Housing material Metal, Nickel-plated brass Enclosure rating IP67 Test input sender off TE to 0 V Ambient operating temperature –25 °C... +70 °C UL File No. NMFT2. E175606
