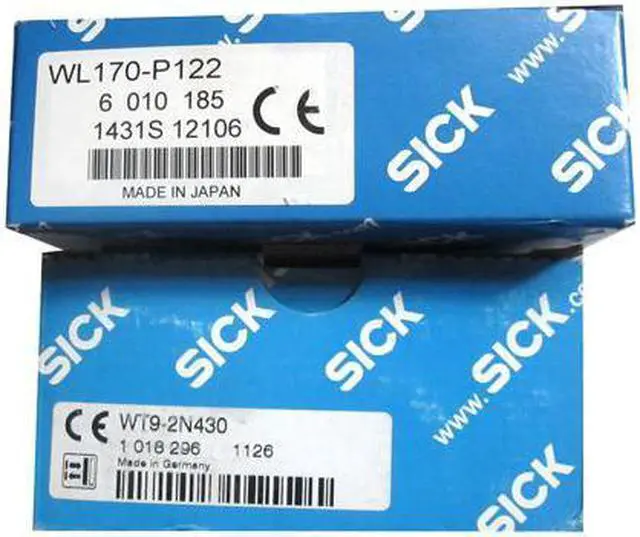

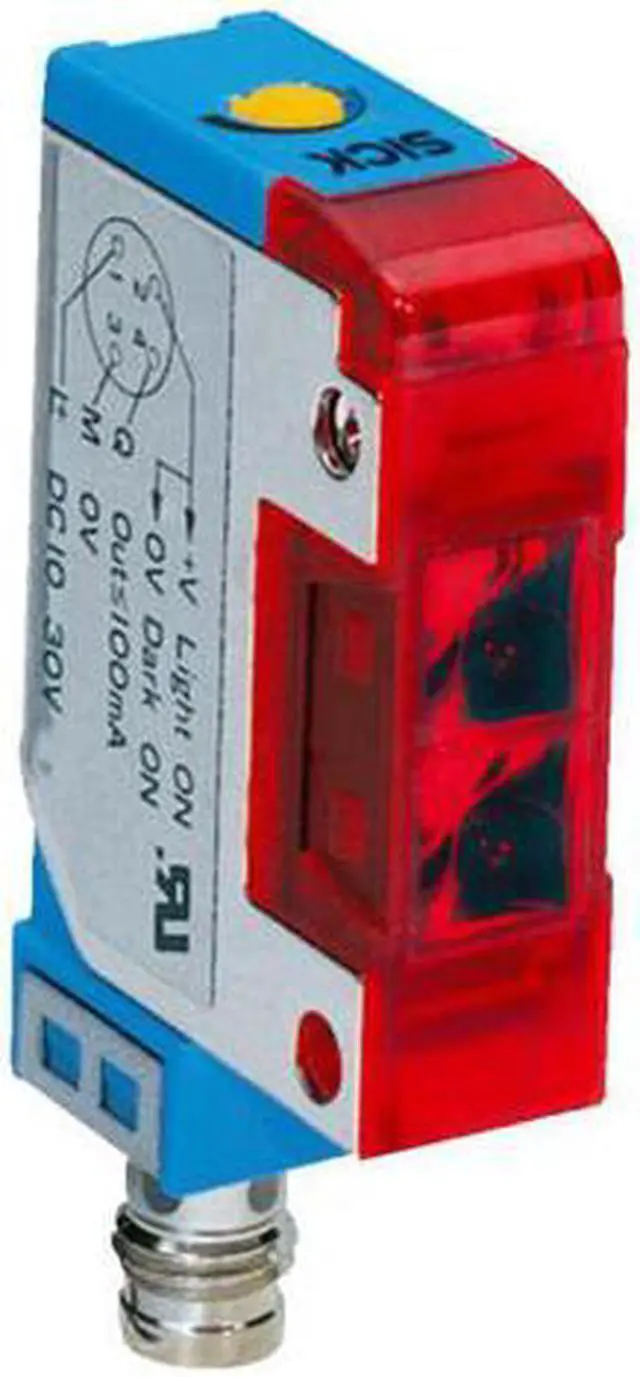

SICK WL170-P122 Photoelectric retro-reflective sensor ,PNP,New
- SICK WL170-P122 Photoelectric retro-reflective sensor ,PNP,New
+
+
Overview
Specs
Reviews

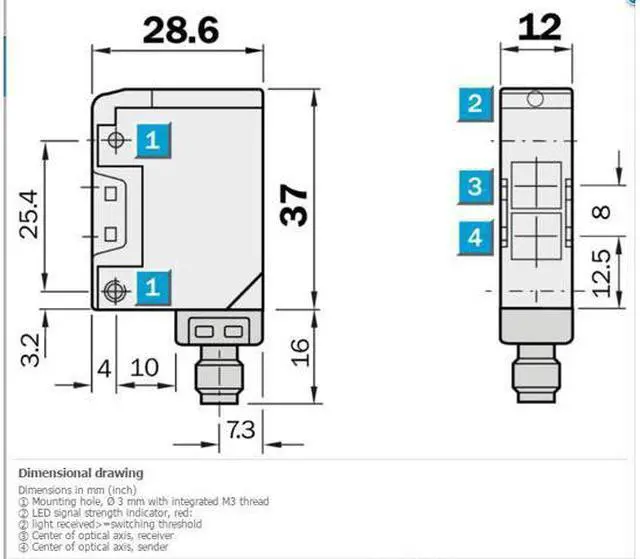

FEATURES Sensor/ detection principle Photoelectric retro-reflective sensor Dimensions (W x H x D) 12 mm x 37 mm x 28.6 mm Housing design (light emission) Rectangular Sensing range max. 0.1 m... 0.8 m 1) Sensing range 0.1 m... 0.6 m 2) Type of light Visible red light Light source LED MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC Ripple ± 10 % Power consumption 30 mA 1) Switching output PNP Switching mode Light/dark switching Switching mode selector Selectable via L/D control cable Response time = 0.7 ms 2) Attenuation along light beam = 20 % Connection type Cable, 2 m 3) Cable material PVC Conductor cross-section 0.18 mm2 Housing material Stainless steel, Stainless steel/ABS Optics material Plastic, PC Enclosure rating IP67 Ambient operating temperature –25 °C.
.. +55 °C Ambient storage temperature –40 °C... +70 °C UL File No. NRNT2. E128350 & NRNT8. E128350
.. +55 °C Ambient storage temperature –40 °C... +70 °C UL File No. NRNT2. E128350 & NRNT8. E128350
