NGW-1pc Grove - Temperature Sensor
- Features
- Excellent environmental stability: With the support of NCP18WF104F03RC, Grove - Temperature Sensor's operating range is -40 to 125°C
- High-accuracy environmental detection: The accurate range of temperature detection is ± 1.5°C.
- Grove unified socket: The sensor ensures "Plug and Play" and could be versatile for various applications.
+
+
Overview
Specs
Reviews
Description
Grove - Temperature Sensor is using a thermistor NCP18WF104F03RC to measure ambient temperature. The resistance of the thermistor changes based on ambient temperature. Grove - Temperature Sensor has excellent environmental stability and long-term aging stability. And it has High accuracy in resistance and B- Constant. Grove - Temperature Sensor's operating range is -40 to 125°C, with an accuracy of 1.5 °C. Since Grove - Temperature Sensor is equipped with a Grove port, it will be easy to connect to the Arduino UNO or Seeedduino board. All you need just plug-and-play by using the grove port with the Grove base.
Application
Home automation and control
IoT device
Industrial control
Weather monitoring
Heating/cooling systems
Dimensions
24mm x20mm x 9.8 mm
Weight
G. W 8g
Battery
Exclude
Operating voltage
3.3 ~5V
Thermistor Zero power resistance
100 K
Resistance Tolerance
±1%
Thermistor
NCP18WF104F03RC (NTC)
Nominal B-Constant
4250 ~ 4299K
Operating temperature range
-40°C to 125°C
Accuracy
± 1.5 °C

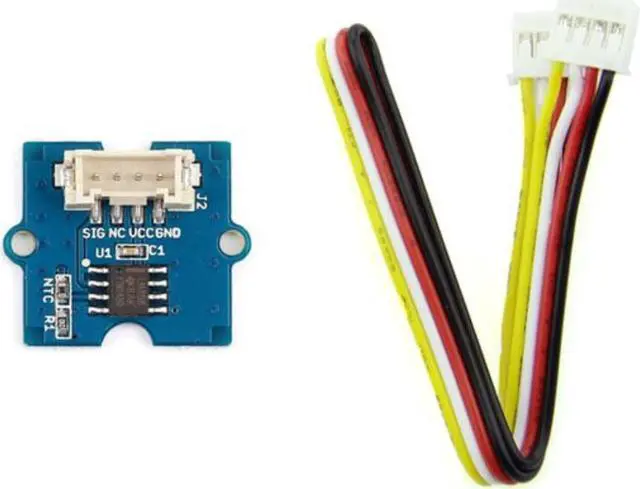

Part List
Grove - Temperature Sensor
*1
Grove Cable
*1
Grove - Temperature Sensor is using a thermistor NCP18WF104F03RC to measure ambient temperature. The resistance of the thermistor changes based on ambient temperature. Grove - Temperature Sensor has excellent environmental stability and long-term aging stability. And it has High accuracy in resistance and B- Constant. Grove - Temperature Sensor's operating range is -40 to 125°C, with an accuracy of 1.5 °C. Since Grove - Temperature Sensor is equipped with a Grove port, it will be easy to connect to the Arduino UNO or Seeedduino board. All you need just plug-and-play by using the grove port with the Grove base.
Application
Home automation and control
IoT device
Industrial control
Weather monitoring
Heating/cooling systems
Specifications
Dimensions
24mm x20mm x 9.8 mm
Weight
G. W 8g
Battery
Exclude
Operating voltage
3.3 ~5V
Thermistor Zero power resistance
100 K
Resistance Tolerance
±1%
Thermistor
NCP18WF104F03RC (NTC)
Nominal B-Constant
4250 ~ 4299K
Operating temperature range
-40°C to 125°C
Accuracy
± 1.5 °C
Part List
Grove - Temperature Sensor
*1
Grove Cable
*1
