NGW-1pc Grove - IR (Infrared) Receiver
- Features
- Excellent immunity to ambient light: The TSOP384 series devices are optimized to suppress almost all spurious pulses from energy saving lamps like CFLs.
- Good signal reception: It can receive signals well within 10 meters.
- Grove unified socket: The product ensures "Plug and Play" and could be versatile for various applications.
+
+
Overview
Specs
Reviews
Description

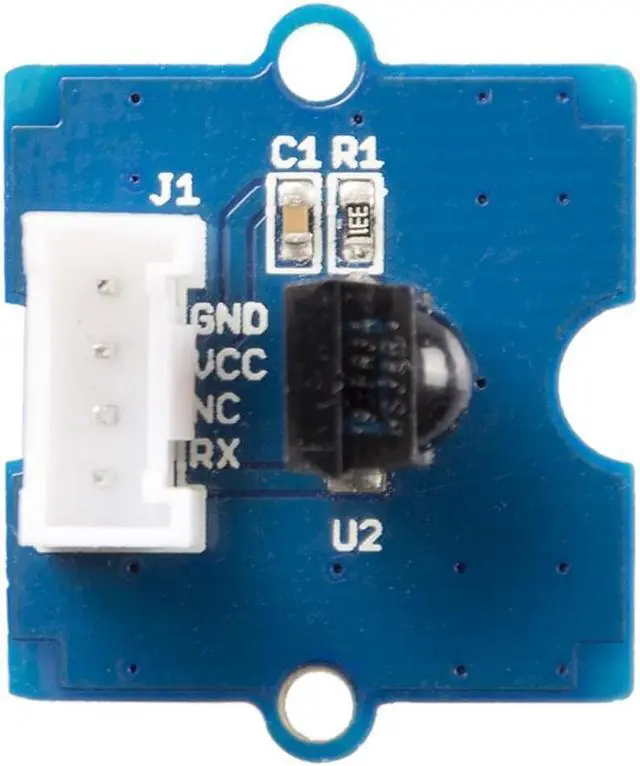

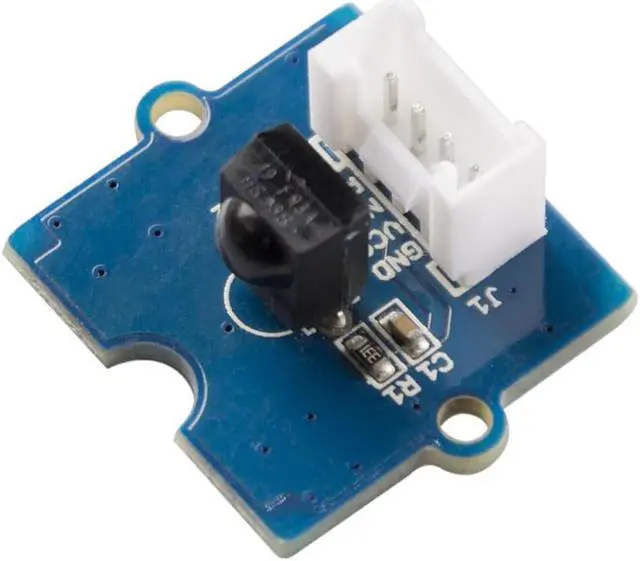

The Infrared Receiver is based on tsop382. It is used to receive infrared signals and also used for remote control detection. There is an IR detector on the Infrared Receiver which is used to get the infrared light emitted by the Infrared Emitter. The IR detector have a demodulator inside that looks for modulated IR at 38 KHz. The Infrared Receiver can receive signals well within 10 meters. If more than 10 meters, the receiver may not get the signals. We often use the two Groves-the Infrared Receiver and the Grove - Infrared Emitter to work together.
Note
When a data signal is applied to the product in the presence of a disturbance, the sensitivity of the receiver is automatically reduced by the AGC to ensure that no spurious pulses are present at the receivers output. Some examples which are suppressed are: DC light (e. g. from tungsten bulbs sunlight), continuous signals at any frequency and strongly or weakly modulated patterns from fluorescent.
Application
Infrared remote control units with high power requirements
Free air transmission systems
Optical counters and card readers

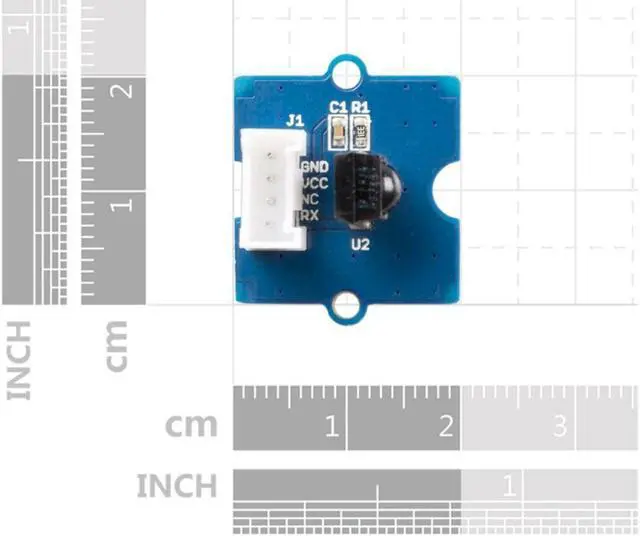

Dimensions
20mm x20mm x10mm
Weight
G. W 9g
Battery
Exclude
Voltage
3.3 -5V
Distance
10m
Part List
Grove - Infrared Receiver*1
The Infrared Receiver is based on tsop382. It is used to receive infrared signals and also used for remote control detection. There is an IR detector on the Infrared Receiver which is used to get the infrared light emitted by the Infrared Emitter. The IR detector have a demodulator inside that looks for modulated IR at 38 KHz. The Infrared Receiver can receive signals well within 10 meters. If more than 10 meters, the receiver may not get the signals. We often use the two Groves-the Infrared Receiver and the Grove - Infrared Emitter to work together.
Note
When a data signal is applied to the product in the presence of a disturbance, the sensitivity of the receiver is automatically reduced by the AGC to ensure that no spurious pulses are present at the receivers output. Some examples which are suppressed are: DC light (e. g. from tungsten bulbs sunlight), continuous signals at any frequency and strongly or weakly modulated patterns from fluorescent.
Application
Infrared remote control units with high power requirements
Free air transmission systems
Optical counters and card readers
Specifications
Dimensions
20mm x20mm x10mm
Weight
G. W 9g
Battery
Exclude
Voltage
3.3 -5V
Distance
10m
Part List
Grove - Infrared Receiver*1
