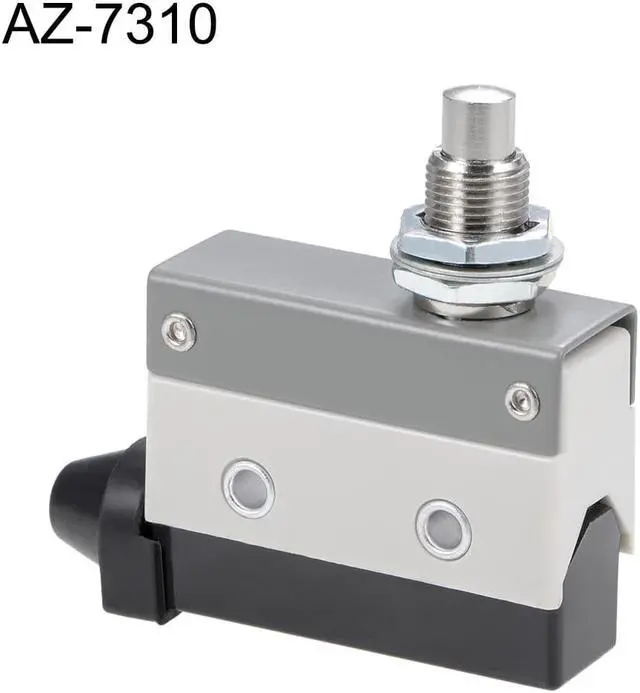

AZ-7310 Limit Switch, TZ-7310 Push Plunger Micro Momentary Switches Panel Mount 1NC+1NO

Specification:

Product Name: Limit Switch

Model: AZ-7310 (TZ-7310)

Actuator Type: Push Plunger Type

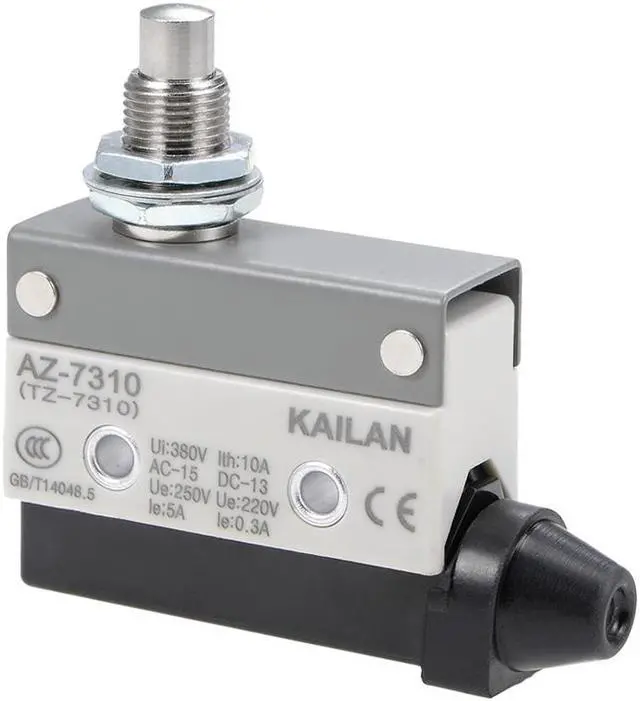

Rated Voltage:

AC-15: 250V 5A

DC-13: 220V 0.3A

Contact Configuration: 1NC+1NO

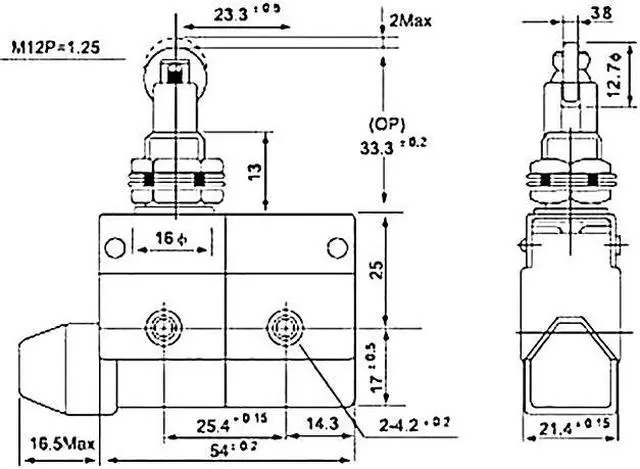

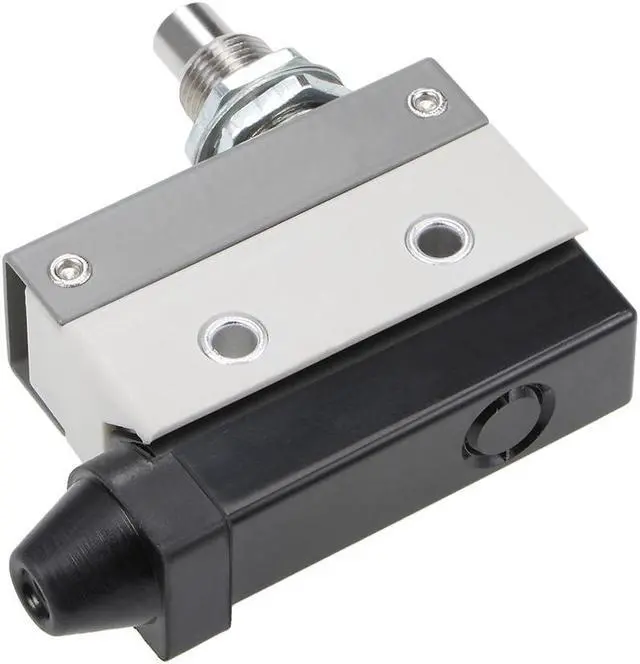

Body Size: 54 x 42 x 21mm (L*W*T)

Mounting Hole Size: 4.2mm (D)

Mounting Hole Distance: 25.4mm

KEY_TAB

The plunger operated by hydraulic pressure or air cylinder power detects positions highly accurately.

The plunger must be installed according to the movement of the dog so that an incorrect load will not be imposed on the plunger.

KEY_TAB

KEY_TAB

Operating Characteristics:

OF max: 600g

RF min: 100g

PT max: 2.0mm

OT min: 6.0mm

MD max: 0.8mm

OP: 21.8+/-1.2mm

KEY_TAB

Description:

-Highprecision and long life, suitable for applications demanding higher mechanical strength, dust proof, and drip-proof properties than those on basic switches.

-Screw silver contact, outer shell covered with plastics.

-Sealed with gasket diaphragm to provide high sealing property without use of any adhesive or pin.

-This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.

-Excessive dog angle, operating speed, or overtravel (OT) may damage the actuator, and check that OT has a sufficient margin.
